Diffraction Grating: Unlocking the Colors of Light
The Science of Light and Waves
To understand how a diffraction grating works, we first need to think of light as a wave. Like waves on water, light waves have crests (high points) and troughs (low points). When two or more light waves meet, they combine in a process called interference.
- Constructive Interference: This happens when the crest of one wave aligns with the crest of another. They add together to create a brighter, more intense light. It's like two people pushing a swing at the same time—the swing goes higher.
- Destructive Interference: This occurs when the crest of one wave aligns with the trough of another. They cancel each other out, resulting in darkness or dimmer light. It's like one person pushing a swing while another pulls it back—the swing stops.

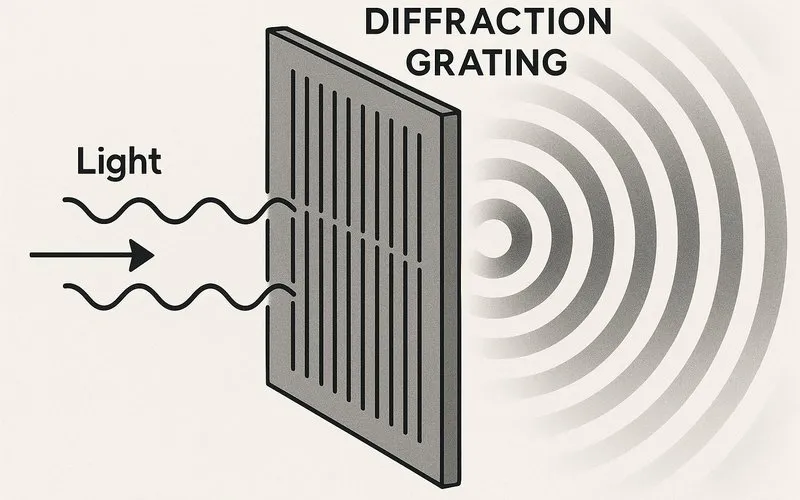

A diffraction grating is a master of controlling this interference. With thousands of slits packed into a small space, it creates many overlapping waves that interfere in a very precise and predictable way.
How a Diffraction Grating Works
Imagine you are shining a laser pointer at a wall. If you put a piece of paper with a single vertical slit in front of the laser, you would see a single, slightly fuzzy spot on the wall. This fuzziness is due to diffraction—the light waves spreading out after passing through the slit.
Now, imagine you have a second, identical slit right next to the first one. The light from the two slits will spread out and overlap on the wall. In some places, the waves will be in step (constructive interference), creating a bright spot. In other places, they will be out of step (destructive interference), creating a dark spot. The result is a pattern of alternating bright and dark bands, known as an interference pattern.
A diffraction grating takes this idea to the extreme. Instead of two slits, it might have 10,000 slits per centimeter! This massive number of slits makes the interference pattern incredibly sharp and well-defined. The bright spots, now called principal maxima, become very narrow and intense, and they appear at specific angles.
The Grating Equation: The key formula that predicts where the bright spots (maxima) will appear is:
$d \cdot \sin\theta = m \cdot \lambda$
Where:
- $d$ = the distance between adjacent slits (the "grating spacing").
- $\theta$ (theta) = the angle at which a bright spot is seen.
- $m$ = the order of the spectrum (0, ±1, ±2, ...).
- $\lambda$ (lambda) = the wavelength of the light.
Why White Light Splits into a Rainbow
White light, like sunlight, is not a single color. It is a mixture of all the colors of the rainbow, from red to violet. Each color corresponds to a different wavelength of light. Red light has the longest wavelength, and violet light has the shortest.
When white light hits a diffraction grating, the grating equation $d \cdot \sin\theta = m \cdot \lambda$ tells us that the angle $\theta$ for a bright spot depends on the wavelength $\lambda$. For a given order $m$:
- Red light, with its longer wavelength, gets diffracted at a larger angle.
- Violet light, with its shorter wavelength, gets diffracted at a smaller angle.
This means that for each order of the spectrum (except the central, $m=0$ spot, which remains white), the light is spread out into a beautiful, continuous band of colors—a spectrum. This process of separating light by its wavelength is called dispersion.
Diffraction Grating vs. Prism
You might be familiar with a prism creating a rainbow from white light. Both a prism and a diffraction grating can disperse light, but they work on different principles. The table below highlights the key differences.
| Feature | Diffraction Grating | Prism |
|---|---|---|
| Working Principle | Wave interference and diffraction. | Refraction (bending of light due to speed change in a material). |
| Spectrum Pattern | Multiple, sharp spectra on both sides of the central image. | A single, continuous spectrum. |
| Color Order | Red is diffracted the most ($\theta$ is largest for red). | Violet is bent the most ($\theta$ is largest for violet). |
| Efficiency | Light is spread into multiple orders, so each is less bright. | All light forms one spectrum, which is typically brighter. |
| Common Use | Precise scientific instruments (spectrometers). | Binoculars, cameras, and simple demonstrations. |
Seeing Gratings in Action: Real-World Applications
Diffraction gratings are not just laboratory curiosities; they are hidden in many technologies we use.
Spectroscopy: This is the most important application. By analyzing the spectrum of light from a star, a flame, or a chemical sample, scientists can identify the elements present. Each element emits or absorbs light at specific, unique wavelengths, creating a fingerprint-like pattern in the spectrum. The diffraction grating in a spectrometer spreads out the light so this fingerprint can be read, telling us what the Sun is made of or detecting pollutants in the air.
CDs and DVDs: The surface of a CD or DVD acts as a reflection diffraction grating. The data is stored in a long spiral of tiny pits. This track of pits is so fine and regularly spaced that it diffracts light, creating the shimmering rainbow colors you see when you tilt the disc.
Laser Shows: The brilliant, fanning patterns of colored light in laser light shows are often created by shining lasers onto rotating diffraction gratings. The grating splits the single laser beam into multiple beams, creating complex and dynamic patterns.
Barcode Scanners: Many supermarket barcode scanners use a laser and a rotating diffraction grating to sweep the laser beam rapidly back and forth across the barcode, reading the pattern of black and white lines.
Common Mistakes and Important Questions
Q: Is a diffraction grating just a fancy version of a double-slit?
Essentially, yes, but the large number of slits makes a huge qualitative difference. A double-slit produces a fuzzy interference pattern with dim, broad bright bands. A diffraction grating with thousands of slits produces a pattern with extremely sharp, narrow, and bright maxima. This sharpness is what allows us to see the fine details in a spectrum and measure wavelengths with high precision.
Q: Why do we sometimes see multiple rainbows from a grating?
Those multiple rainbows correspond to different "orders" ($m$) in the grating equation. The central, undeflected beam is the zeroth order ($m=0$). The first rainbow on either side is the first-order spectrum ($m=1$). The next, fainter set of rainbows farther out is the second-order spectrum ($m=2$), and so on. Each order contains a full spectrum, but higher orders are spread out more.
Q: What happens if the slits are not equally spaced?
The magic of the diffraction grating relies entirely on the perfect, regular spacing of the slits. If the slits are uneven, the light waves will not all interfere constructively at the same, precise angles. The result would be a messy, blurry pattern without the distinct, sharp spectral lines. The regular spacing is what makes the interference coordinated and powerful.
Conclusion
The diffraction grating is a brilliant demonstration of the wave nature of light. By harnessing the principles of interference and diffraction from thousands of meticulously spaced slits, it performs the essential task of separating light into its constituent colors. From unlocking the chemical secrets of distant galaxies to creating the rainbows on a DVD, this simple yet powerful device is a cornerstone of modern science and technology. Its ability to precisely measure the wavelength of light makes it an indispensable tool for exploration and discovery, proving that sometimes, the most profound insights come from simply taking light apart.
Footnote
1 Spectroscopy: The scientific study of the interaction between matter and electromagnetic radiation, often used to identify substances based on their unique spectral signatures.
2 Diffraction: The bending and spreading of waves, such as light or sound, when they pass through an opening or around a barrier.
3 Wavelength ($\lambda$): The distance between two successive crests (or troughs) of a wave. For visible light, it determines the color we perceive.
4 Interference: The combined effect of two or more waves overlapping, leading to an increase (constructive) or decrease (destructive) in amplitude.
5 Dispersion: The process of separating a wave (like light) into its constituent parts based on a property like wavelength, resulting in a spectrum.
