The Magic of Standing Still: Understanding Stationary Waves
The Basic Ingredients of a Stationary Wave
To understand stationary waves, we first need to know about the waves that create them: progressive waves. A progressive wave is a disturbance that travels through a medium, transferring energy from one point to another. Think of a wave traveling along a rope when you flick one end.

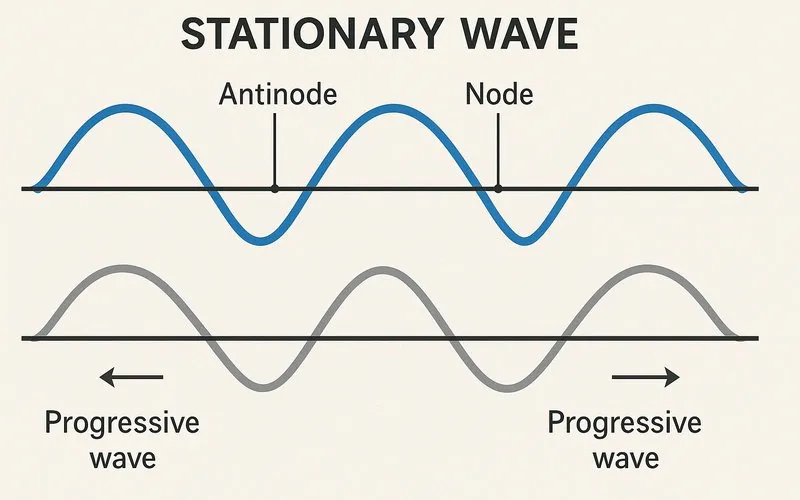

A stationary wave is formed by the superposition—a fancy word for the combination or overlapping—of two such progressive waves. For this magical pattern to appear, the two waves must have three key things in common:
| Property | Description | Simple Analogy |
|---|---|---|
| Same Frequency | Both waves must vibrate at the same number of oscillations per second. | Two people swinging their legs at the exact same speed. |
| Same Amplitude | Both waves must have the same maximum height or displacement from rest. | Both people swinging their legs to the same height. |
| Opposite Directions | One wave travels to the right, the other to the left. | Two people walking towards each other on the same path. |
When these two waves meet, they interfere with each other. This interference can be constructive (adding together to make a bigger wave) or destructive (canceling each other out). The result of this continuous interference is the stationary wave pattern.
Wave 1 (traveling right): $y_1 = A \sin(kx - \omega t)$
Wave 2 (traveling left): $y_2 = A \sin(kx + \omega t)$
The resulting stationary wave is: $y = y_1 + y_2 = 2A \sin(kx) \cos(\omega t)$
Where $A$ is amplitude, $k$ is the wave number, $\omega$ is the angular frequency, $x$ is position, and $t$ is time.
Nodes and Antinodes: The Heart of the Pattern
The most distinctive feature of a stationary wave is the presence of fixed points called nodes and antinodes.
Nodes are points of zero amplitude. At these positions, the medium does not move at all. They are points of complete destructive interference where the two opposing waves always cancel each other out.
Antinodes are points of maximum amplitude. At these positions, the medium oscillates with the greatest possible movement. They are points of constructive interference where the two waves always reinforce each other.
Imagine a jump rope being shaken by two people at either end. If they shake it just right, you will see points along the rope that are moving up and down a lot (antinodes) and points that seem perfectly still (nodes). The pattern looks like a frozen snapshot of a wave, even though the rope is moving vigorously at the antinodes.
Creating Music and Color: Stationary Waves in Action
Stationary waves are not just a laboratory curiosity; they are responsible for some of the most beautiful phenomena in our world.
Musical Instruments: When a guitarist plucks a string, waves travel along the string, reflect from the fixed ends, and interfere to form stationary waves. The string can only vibrate in specific patterns, called modes or harmonics, that have nodes at the fixed ends. The fundamental frequency (the lowest note) has one antinode in the middle. The second harmonic has a node in the middle and two antinodes, producing a higher pitch. This principle applies to all string instruments like violins and pianos. Similarly, in wind instruments like flutes and trumpets, stationary waves are set up in the column of air inside the tube, with nodes and antinodes forming at the open and closed ends.
Color in Thin Films: The brilliant colors you see in soap bubbles or oil slicks on water are due to stationary light waves. When light hits a thin film, some of it reflects off the top surface and some off the bottom surface. These two reflected waves can interfere. For a given thickness of the film and wavelength of light, a stationary wave pattern is formed. If the conditions are right for constructive interference, you see a bright color; for destructive interference, you see a different color or darkness. This is a beautiful example of stationary waves in electromagnetic radiation, not just mechanical waves.
Resonance and Engineering: Stationary waves are the essence of resonance. Every object has a natural frequency at which it likes to vibrate. If you apply a force at this frequency, a large-amplitude stationary wave can build up. This is how an opera singer can shatter a glass with their voice. It's also a critical consideration for engineers designing bridges and buildings, ensuring that wind or earthquakes do not create resonant stationary waves that could cause collapse, as famously happened with the Tacoma Narrows Bridge in 1940.
Common Mistakes and Important Questions
Q: Is energy transferred in a stationary wave?
No, and this is a key difference from a progressive wave. In a perfect stationary wave, energy is not transported along the medium. Instead, the energy is trapped, oscillating between potential energy (at the moments when the medium is at maximum displacement) and kinetic energy (as it moves through the equilibrium position). The energy sloshes back and forth between the nodes.
Q: Can a stationary wave be formed by waves of different amplitudes?
No, for a perfect stationary wave pattern with complete nodes (points of zero displacement), the two interfering waves must have the same amplitude. If the amplitudes are different, the points of destructive interference will not drop all the way to zero. You will still get a wave pattern with minimum and maximum points, but the minima will not be true nodes. The pattern will also appear to slowly drift, rather than standing perfectly still.
Q: What is the distance between a node and the nearest antinode?
The distance between a consecutive node and antinode is always one-quarter of a wavelength ($\lambda/4$). The distance between two consecutive nodes (or two consecutive antinodes) is half a wavelength ($\lambda/2$). This fixed spacing is a fundamental property of all stationary waves.
Conclusion
Stationary waves are a beautiful and fundamental demonstration of the principle of superposition. By understanding how two identical waves traveling in opposite directions can create a pattern that stands still, we unlock the secrets behind the music from our favorite instruments, the shimmering colors of a soap bubble, and the powerful forces of resonance. They show us that even in a state that appears motionless, there can be a dynamic and energetic dance of interference happening at every moment.
Footnote
1. Superposition[1]: A principle in wave physics stating that when two or more waves overlap in space, the resultant displacement is the sum of the individual displacements of each wave.
2. Progressive Wave[2]: A wave that travels through a medium, transferring energy from one location to another.
3. Frequency ($f$)[3]: The number of complete wave cycles that pass a point per unit of time, measured in Hertz (Hz).
4. Amplitude ($A$)[4]: The maximum displacement of a point on a wave from its rest position.
5. Resonance[5]: The phenomenon that occurs when a vibrating system or external force drives another system to oscillate with greater amplitude at a specific preferential frequency.
