Fundamental Frequency: The Heartbeat of Sound
What Are Stationary Waves?
Before we dive into the fundamental frequency, we need to understand stationary waves. Imagine shaking a rope that is tied to a post. If you shake it at just the right speed, you can create a wave pattern that seems to stand still, oscillating up and down but not traveling along the rope. This is a stationary wave or standing wave. It is formed by the interference of two identical waves traveling in opposite directions. The points that don't move are called nodes, and the points of maximum movement are called antinodes.

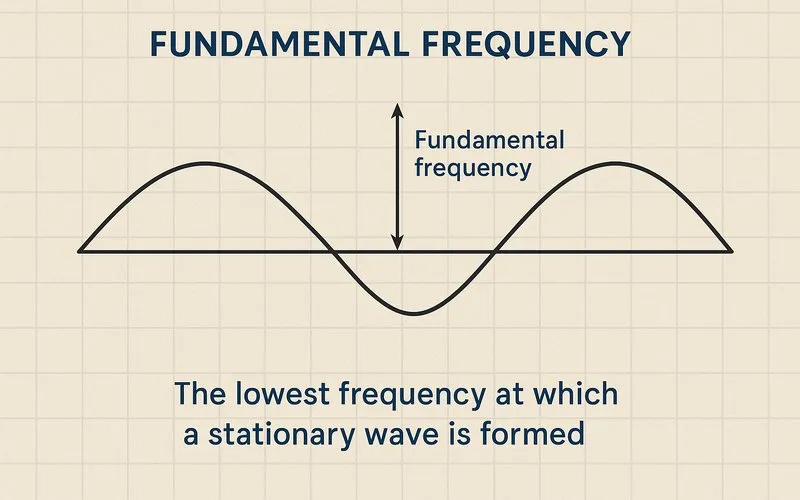

Defining the Fundamental Frequency
The fundamental frequency, often called the first harmonic, is the simplest standing wave pattern a system can support. It has the fewest number of nodes and antinodes. For a string fixed at both ends, the fundamental frequency consists of just two nodes at the ends and one antinode in the middle. This creates a single "hump." This frequency is the lowest possible frequency for a stationary wave in that system and is the primary determinant of the perceived pitch.
The formula for the fundamental frequency ($ f_1 $) of a string fixed at both ends is:
Where:
$ f_1 $ is the fundamental frequency (in Hertz, Hz).
$ v $ is the speed of the wave on the string (in meters per second, m/s).
$ L $ is the length of the string (in meters, m).
This equation tells us that a longer string ($ L $ is bigger) produces a lower fundamental frequency, which is why cellos have longer strings than violins to produce deeper notes. A faster wave speed ($ v $), which depends on the string's tension and thickness, results in a higher frequency.
Harmonics: The Family of Frequencies
The fundamental frequency is just the first member of a whole family of frequencies called harmonics. A system can vibrate at the fundamental frequency and also at integer multiples of it. These are the higher harmonics.
For a string fixed at both ends, the frequencies of the harmonics are given by:
Where $ n = 1, 2, 3, ... $
So, $ f_1 $ is the fundamental, $ f_2 = 2f_1 $ is the second harmonic, $ f_3 = 3f_1 $ is the third harmonic, and so on.
The table below shows the first three harmonics for a string, illustrating the wave patterns and their relationships.
| Harmonic (n) | Name | Wave Pattern Description | Frequency |
|---|---|---|---|
| 1 | Fundamental Frequency | One segment (two nodes at ends, one antinode in the middle) | $ f_1 = \frac{v}{2L} $ |
| 2 | Second Harmonic (First Overtone) | Two segments (three nodes, two antinodes) | $ f_2 = 2f_1 = \frac{v}{L} $ |
| 3 | Third Harmonic (Second Overtone) | Three segments (four nodes, three antinodes) | $ f_3 = 3f_1 = \frac{3v}{2L} $ |
Hearing and Seeing the Fundamental Frequency in Action
The fundamental frequency is not just a theoretical idea; it's all around us in music and sound.
Example 1: The Guitar
When a guitarist plays an open string, the sound you primarily hear is the fundamental frequency. If they lightly touch the string exactly at its midpoint (the $ \frac{L}{2} $ point) and pluck it, they create a node at that point. This forces the string to vibrate in its second harmonic mode, producing a note one octave higher (double the frequency) than the fundamental. This technique is called playing a harmonic.
Example 2: The Human Voice
Your vocal cords produce a complex wave rich in harmonics. The fundamental frequency of this wave is what determines whether your voice sounds like a low bass or a high soprano. When you sing a note, you are controlling the tension and length of your vocal cords to produce a specific fundamental frequency. The unique blend of harmonics that accompany this fundamental is what gives your voice its distinctive timbre, allowing us to tell different people's voices apart even when they sing the same note.
Example 3: Wind Instruments
In a flute, which is open at both ends, or a clarinet, which is closed at one end, the fundamental frequency is determined by the length of the air column inside. When a flutist opens and closes the holes along the tube, they are effectively changing the length $ L $ of the air column, thus changing the fundamental frequency and the pitch of the note. The formula for the fundamental frequency is slightly different for open-open and open-closed tubes, but the core principle remains the same: a longer tube means a lower fundamental frequency.
Common Mistakes and Important Questions
Not necessarily. While it is often the dominant frequency that defines the pitch, in some instruments or under certain conditions, a higher harmonic might be more powerful. However, our brain is very good at identifying the fundamental frequency even if it is weak, and we will still perceive the pitch based on it.
Frequency is an objective, physical measurement of how many vibrations occur per second, measured in Hertz (Hz). Pitch is the subjective, psychological perception of that frequency—how "high" or "low" a sound seems to us. The fundamental frequency is the primary physical property that determines the pitch.
No. A given system, under fixed conditions (like a specific string length and tension), has only one fundamental frequency. It is the lowest possible frequency for a stationary wave in that system. However, a complex sound, like a chord played on a piano, is a mixture of several fundamental frequencies from different sources.
The fundamental frequency is a foundational concept in physics and music. It is the simplest, lowest-frequency standing wave that a system can produce, and it serves as the bedrock for the pitch we hear. From the deep notes of a tuba to the high notes of a piccolo, the manipulation of the fundamental frequency through changes in length, tension, and wave speed is what creates the vast spectrum of musical sounds. By understanding its relationship with harmonics and stationary waves, we gain a deeper appreciation for the science behind the music and sounds that fill our world.
Footnote
1 Hz (Hertz): The unit of frequency, defined as one cycle per second.
2 Timbre: The quality of a musical note or sound that distinguishes different types of sound production, such as voices and musical instruments. It is what makes a piano sound different from a guitar playing the same note at the same volume.
3 Acoustics: The branch of physics concerned with the study of sound.
