Progressive Wave: The Traveler of Energy
The Core Characteristics of a Progressive Wave

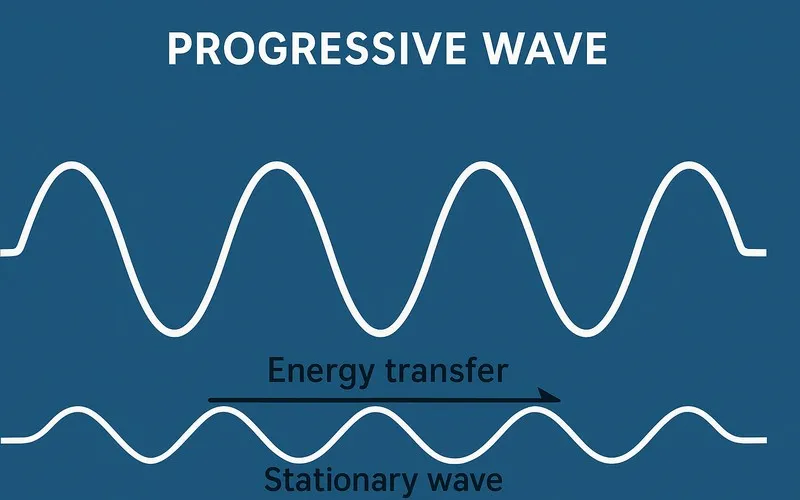

Imagine you're holding one end of a long rope and you give it a single, quick flick. A pulse, a bump, travels down the length of the rope. This is a simple progressive wave. The key is that the energy you put into the rope at your end moves to the other end. The rope itself just moves up and down; it doesn't travel forward. The wave does.
All progressive waves share several important features:
- Energy Transfer: This is the defining property. The wave transports energy through a medium or vacuum.
- Disturbance Propagation: A vibration or oscillation at the source creates a disturbance that moves outward.
- No Net Matter Transfer: The particles of the medium (like air or water) oscillate about a fixed point but do not travel with the wave.
To describe these waves precisely, we use specific terms. Let's break them down using the example of a wave on a string:
| Term | Symbol | Definition | Simple Example |
|---|---|---|---|
| Amplitude | A | The maximum displacement of a particle from its rest position. | The height of a water wave from the calm surface to the crest. |
| Wavelength | $\lambda$ (lambda) | The distance between two successive identical points on the wave (e.g., crest to crest). | The distance between two consecutive ripples on a pond. |
| Frequency | f | The number of complete waves passing a point per second. Measured in Hertz (Hz). | A high-pitched sound has a high frequency. |
| Period | T | The time taken for one complete wave to pass a point. $T = 1/f$. | The time between two ocean waves hitting your legs. |
| Wave Speed | v | The speed at which the wave propagates. $v = f \lambda$. | The speed of sound is about 343 m/s in air. |
Transverse vs. Longitudinal: Two Ways to Travel
Progressive waves are categorized based on the direction of the particle oscillation relative to the direction the wave is traveling.
Transverse Waves: In these waves, the particles of the medium vibrate perpendicular (at a right angle) to the direction of the wave's travel. Think of the rope example: your hand moves up and down, but the wave moves horizontally. Other examples include light waves and electromagnetic waves[1]. The high points are called crests and the low points are called troughs.
Longitudinal Waves: Here, the particles of the medium vibrate parallel to the direction of the wave's travel. A classic example is a sound wave traveling through air. As a speaker diaphragm vibrates, it creates regions where air particles are compressed together (compressions) and regions where they are spread apart (rarefactions). These compressions and rarefactions travel through the air, carrying the sound energy to your ear. Waves in a slinky when you push and pull the end are also longitudinal.
| Feature | Transverse Wave | Longitudinal Wave |
|---|---|---|
| Particle Vibration | Perpendicular to wave direction | Parallel to wave direction |
| Characteristic Parts | Crests and Troughs | Compressions and Rarefactions |
| Can travel in a vacuum? | Yes (e.g., light) | No, requires a medium |
| Common Examples | Waves on a string, light, radio waves | Sound waves, seismic P-waves[2] |
Progressive Waves in Action: From Sound to Seismology
Progressive waves are not just abstract ideas; they are at work all around us. Let's explore a few concrete examples.
1. Hearing a Concert: When a guitarist plucks a string, it vibrates. This vibration creates a progressive longitudinal sound wave in the air. Compressions and rarefactions travel through the air at about 343 meters per second. When this wave reaches your eardrum, it causes the eardrum to vibrate. These vibrations are converted into electrical signals that your brain interprets as sound. The energy from the guitar string has been transported to your ear.
2. Seeing the Sun: The sun is a massive source of energy. It emits progressive transverse waves called electromagnetic radiation. Visible light is a small part of this spectrum. These waves, unlike sound, can travel through the vacuum of space. They carry the sun's energy over 150 million kilometers to Earth, where it provides light and heat, enabling life on our planet.
3. Earthquake Detection: During an earthquake, energy is released in the form of seismic waves. There are different types, but two primary ones are progressive waves: P-waves (Primary waves) are longitudinal, and S-waves (Secondary waves) are transverse. P-waves travel faster and are detected first by seismographs[3]. By analyzing the arrival times and properties of these progressive waves, scientists can locate the earthquake's epicenter and understand its magnitude.
Common Mistakes and Important Questions
Q: Do the particles in a wave actually travel from the source to the receiver?
A: No, this is a very common misconception. The particles only oscillate around a fixed point. It is the energy and the wave pattern that travel. Imagine a "wave" doing "the wave" in a sports stadium. People stand up and sit down (oscillate) but don't move to another seat. The wave pattern moves around the stadium.
Q: What is the main difference between a progressive wave and a stationary wave?
A: The key difference is energy transfer. A progressive wave transfers energy from one point to another. A stationary wave, formed by the interference of two identical progressive waves traveling in opposite directions, traps energy in a specific region with no net transfer. Nodes (points of no vibration) and antinodes (points of maximum vibration) are characteristic of stationary waves, unlike the uniform progression of a traveling wave.
Q: Why is the wave equation $v = f \lambda$ so important?
A: This equation connects the three most fundamental properties of a wave. It is a universal relationship for all progressive waves. If you know any two of the quantities (speed, frequency, wavelength), you can always calculate the third. For example, if you know the frequency of a radio wave and the speed of light, you can find its wavelength, which is crucial for tuning radios and designing antennas.
Footnote
[1] Electromagnetic Waves (EM waves): A type of transverse wave that does not require a medium and can travel through a vacuum. They consist of oscillating electric and magnetic fields and include radio waves, microwaves, infrared, visible light, ultraviolet, X-rays, and gamma rays.
[2] Seismic P-waves: Primary waves, which are longitudinal compression waves that are the fastest type of seismic wave and can travel through solids, liquids, and gases.
[3] Seismograph: An instrument that measures and records details of earthquakes, such as force and duration, by detecting the seismic waves generated.
