Understanding Antinodes: The Peaks of Stationary Waves
What is a Stationary Wave?
To understand an antinode, you must first understand what a stationary wave is. Also known as a standing wave, it is a wave pattern that remains in a constant position. This might seem confusing because we often think of waves as moving, like ocean waves crashing on the shore. A stationary wave, however, is an optical illusion of sorts; it isn't traveling anywhere. It is created when two identical waves travel in opposite directions through the same medium and interfere with each other.
Imagine you are shaking one end of a rope that is tied to a wall. The wave you create travels down the rope, reflects off the wall, and comes back towards you. The wave you are sending and the reflected wave meet. When they combine, they create a pattern that seems to stand still—hence the name "standing wave." The rope will show points that are vibrating with a large up-and-down motion and other points that seem not to move at all.
The Anatomy of a Stationary Wave: Nodes and Antinodes
Every stationary wave has a very specific and repeating pattern defined by two key features: nodes and antinodes.
- Node: A point where the amplitude of the wave is always zero. The medium does not move at all at these points. They are the stationary, calm spots in the wave pattern.

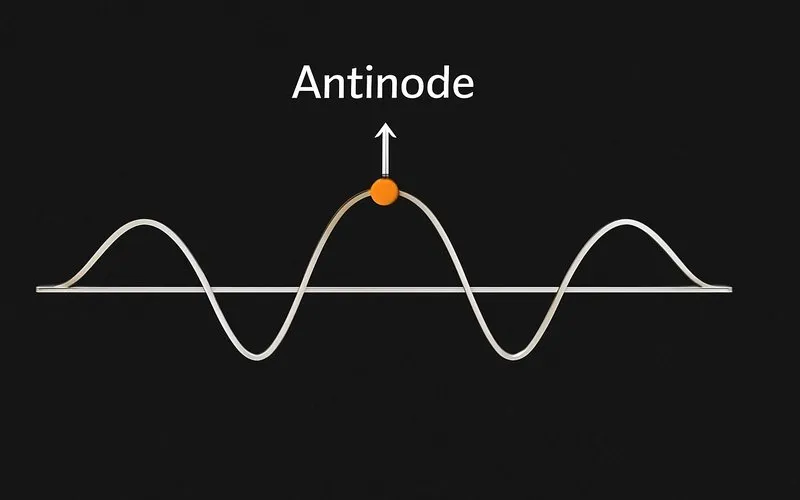

- Antinode: A point where the amplitude of oscillation is at a maximum. These are the points of the most vigorous movement, the peaks and troughs of the wave's vibration.
In any stationary wave pattern, nodes and antinodes alternate. The distance between two consecutive nodes or two consecutive antinodes is always half the wavelength ($\lambda/2$). The distance between a node and the nearest antinode is a quarter of the wavelength ($\lambda/4$).
How are Antinodes Formed? The Principle of Superposition
Antinodes are a direct result of the principle of superposition. This principle states that when two or more waves overlap, the resultant displacement at any point is the sum of the displacements of the individual waves.
Let's consider two waves of the same frequency and amplitude traveling towards each other. Their wave equations can be represented as:
$y_1 = A \sin(kx - \omega t)$ (wave moving to the right)
$y_2 = A \sin(kx + \omega t)$ (wave moving to the left)
Using a trigonometric identity, the resultant wave $y$ is:
$y = y_1 + y_2 = 2A \sin(kx) \cos(\omega t)$
This is the equation of a stationary wave. Notice that the term $2A \sin(kx)$ represents the amplitude of the oscillation at any point $x$.
- At a node, $\sin(kx) = 0$, so the amplitude is zero.
- At an antinode, $|\sin(kx)| = 1$, so the amplitude is at its maximum value of $2A$.
This mathematical derivation shows precisely why antinodes are points of maximum energy and vibration; the two waves are perfectly in phase at these points, constructively interfering to create the largest possible oscillation.
Visualizing Modes: Harmonics on a String
The simplest way to see nodes and antinodes in action is by looking at a vibrating string fixed at both ends, like on a guitar or violin. The fixed ends are always nodes. The wave patterns that can persist on such a string are called harmonics or normal modes.
| Harmonic (n) | Nickname | Number of Antinodes | Wavelength | Wave Pattern Description |
|---|---|---|---|---|
| 1 | Fundamental Frequency | 1 | $\lambda_1 = 2L$ | One single antinode in the middle of the string. |
| 2 | Second Harmonic | 2 | $\lambda_2 = L$ | Two antinodes with one node between them in the center. |
| 3 | Third Harmonic | 3 | $\lambda_3 = \frac{2L}{3}$ | Three antinodes with two nodes between them along the string. |
Antinodes in the World Around Us
Antinodes are not just abstract concepts; they are at work in many everyday objects and advanced technologies.
1. Musical Instruments:
- String Instruments (Guitar, Piano): When a guitarist plucks a string, it vibrates in a standing wave pattern. The fundamental frequency creates one antinode in the middle, producing the lowest note. By pressing a finger on a fret, the musician shortens the vibrating length of the string, changing the position of the nodes and antinodes and thus the pitch. The beautiful sound of a guitar is a complex mixture of the fundamental frequency and many higher harmonics (with multiple antinodes) sounding at once.
- Wind Instruments (Flute, Clarinet): In these instruments, standing waves are set up in a column of air. The open end of a tube is always an antinode for the displacement of the air molecules. A flute player changes the effective length of the air column by opening and closing holes, thereby shifting the nodes and antinodes to play different notes.
2. Microwave Ovens:
Microwave ovens work by creating standing waves of electromagnetic radiation inside the cooking chamber. The microwaves are reflected by the metal walls. This creates a pattern of nodes and antinodes. The antinodes are points of high electromagnetic energy where the food heats up most quickly. This is why many microwaves have a rotating turntable—to move the food through these hot and cold spots (antinodes and nodes) to ensure even cooking.
3. Quantum Mechanics:
In the strange world of quantum mechanics, electrons are described not as tiny planets orbiting a nucleus, but as wave-like entities. The allowed energy levels for an electron in an atom can be thought of as standing waves around the nucleus. The wave function of an electron has nodes and antinodes. The concept of an antinode helps scientists visualize the probability of finding an electron in a particular region around the atom.
Common Mistakes and Important Questions
Q: Is energy transferred at an antinode?
A: This is a common point of confusion. In a perfect stationary wave, there is no net flow of energy along the wave. However, energy is constantly being converted from kinetic energy (at the moment an antinode passes through the equilibrium position) to potential energy (at the moment of maximum displacement at the antinode). The energy is stored in the wave pattern, sloshing back and forth between nodes and antinodes, but it does not travel along the medium.
Q: Can the amplitude at an antinode be greater than the amplitude of the original waves that created it?
A: Yes! As we saw in the mathematical derivation, the maximum amplitude at an antinode is $2A$, where $A$ is the amplitude of each of the two original interfering waves. This is a classic example of constructive interference, where the effect of the combined waves is greater than the sum of their individual parts.
Q: Are antinodes only found in mechanical waves like sound?
A: No, absolutely not. Antinodes are a feature of all types of waves that can form standing patterns. This includes electromagnetic waves (like light and microwaves, as in the microwave oven example) and matter waves in quantum physics. The concept is universal.
Conclusion
The antinode is far more than just a definition in a textbook; it is a fundamental feature of the wave behavior that shapes our world. From the lowest note on a cello to the technology that heats our food, the points of maximum oscillation in a standing wave play a critical role. Understanding the relationship between nodes and antinodes, how they are formed through superposition, and how they define the harmonic patterns on a string provides a powerful lens through which to view physics. This knowledge bridges the gap between the simple motion of a rope and the complex, abstract workings of the quantum realm, demonstrating the beautiful consistency of physical laws.
Footnote
1 Amplitude: The maximum extent of a vibration or oscillation, measured from the position of equilibrium. It is a measure of the energy carried by the wave.
2 Superposition: The principle that when two or more waves meet, the resulting wave displacement is the sum of the individual displacements.
3 Wavelength ($\lambda$): The distance between two successive crests (or troughs) of a wave.
4 Harmonics: The frequencies at which a system naturally vibrates. The fundamental harmonic is the lowest frequency, and higher harmonics are integer multiples of this frequency.
