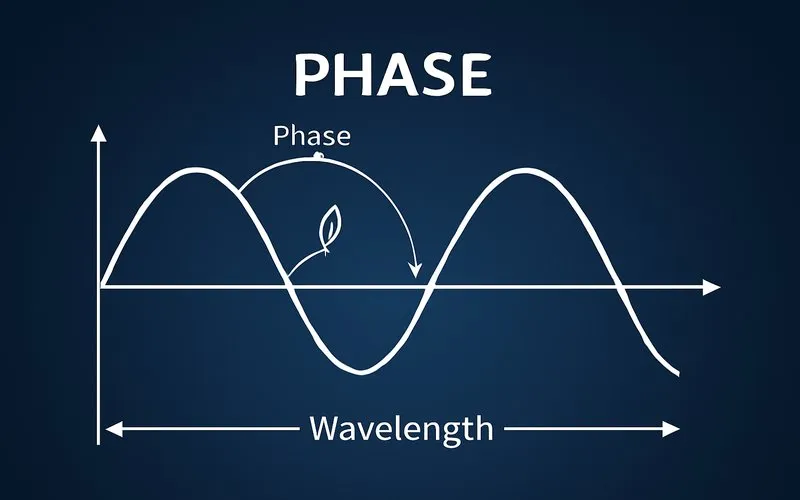

Understanding Phase: The Secret Language of Waves and Cycles
What is a Cycle? The Foundation of Oscillation
To understand phase, we must first understand a cycle. Imagine a child on a swing. The swing moves from its highest point on one side, down through the lowest point, up to the highest point on the other side, and back again. This complete journey, from one extreme point back to that same point, is called one cycle or one oscillation. Many things in nature and technology oscillate: the vibrations of a guitar string, the tides of the ocean, the changing seasons, and the voltage in electrical outlets.
Every cycle is a repeating pattern. Phase is the tool we use to answer the question: "Where are we right now in this repeating pattern?" It's like a map for the cycle. If we say the phase is "halfway," we know the swing is at its lowest point. If we say the phase is "three-quarters," we know it's almost at the top on the other side.
Measuring Phase: Degrees, Radians, and the Unit Circle
We need a precise way to describe the phase, not just words like "halfway." This is where units of measurement come in. The two most common units are degrees and radians.
$ 360^{\circ} = 2\pi \text{ radians} $
Therefore, $ 180^{\circ} = \pi \text{ radians} $ and $ 90^{\circ} = \pi/2 \text{ radians} $.
Degrees: You are already familiar with degrees from geometry. A full circle is 360°. We can apply this to a cycle. The start of a cycle is 0°. When the oscillation is one-quarter of the way through, the phase is 90°. Halfway is 180°, and the completion of the cycle is 360°.
Radians: Radians are often used in more advanced mathematics and physics because they simplify many formulas. Instead of dividing a circle into 360 arbitrary units, radians are based on the radius of the circle. One radian is the angle created when the length of the arc on the circle is equal to the radius of the circle. A full circle, whose circumference is $ 2\pi r $, therefore has $ 2\pi $ radians. So, the phase of a cycle can be 0, $ \pi/2 $ (90°), $ \pi $ (180°), and $ 2\pi $ (360°).
| Description | Degrees | Radians | Position on a Sine Wave |
|---|---|---|---|
| Start of cycle | 0° | 0 | Middle, moving upwards |
| Quarter cycle | 90° | $ \pi/2 $ | At the peak (maximum) |
| Half cycle | 180° | $ \pi $ | Middle, moving downwards |
| Three-quarters cycle | 270° | $ 3\pi/2 $ | At the trough (minimum) |
| Full cycle | 360° | $ 2\pi $ | Back to start, moving upwards |
Phase Difference: When Waves Interact
Phase becomes incredibly powerful when we compare two or more oscillations. The phase difference is simply how much one wave is ahead of or behind another wave in its cycle. This concept is the key to understanding how waves combine.
Imagine two identical swings side-by-side. If they both start at the same time and swing together, they are in phase. Their phase difference is 0°. Now, if one swing starts its journey just as the other is finishing, they are out of phase. If one is at the start (0°) and the other is at the halfway point (180°), their phase difference is 180°.
This leads to two fundamental types of wave interference:
- Constructive Interference: This happens when waves are in phase (phase difference of 0°, 360°, etc.). Their peaks and troughs align, and they add together to create a larger wave. Two sound waves in phase will produce a louder sound.
- Destructive Interference: This happens when waves are out of phase, specifically with a phase difference of 180°. The peak of one wave aligns with the trough of the other, and they cancel each other out. This is the principle behind noise-canceling headphones.
Phase in Action: Real-World Applications
The concept of phase is not just theoretical; it is at work all around us.
1. Music and Sound: When you listen to an orchestra, the sound from each instrument is a wave. The phase relationship between the sound waves from the violins and the cellos determines the overall quality, or timbre, of the music you hear. If they are perfectly in phase, the sound is rich and full. If they are slightly out of phase, it can create interesting harmonies or, if too extreme, a muddy sound. Electric guitars use "phase shift" pedals to create a distinctive, swooshing sound effect by altering the phase of the signal.
2. Electricity and Power Grids: The electricity from your wall outlet is AC1 (Alternating Current), meaning the voltage and current oscillate in a wave-like pattern, typically 50 or 60 times per second. The phase difference between the voltage and current waves is critical for calculating the power used by appliances. Engineers managing the power grid must carefully control the phase of electricity from different power plants to ensure they combine constructively and not destructively, which could cause blackouts.
3. Radio and Communications: AM2 (Amplitude Modulation) and FM3 (Frequency Modulation) radio work by slightly altering, or "modulating," a base wave to carry information. One advanced method is Phase Modulation (PM), where information is encoded by making small, rapid changes to the phase of the wave. Your GPS4 receiver uses the precise timing (which is directly related to phase) of signals from multiple satellites to calculate your exact position on Earth.
4. The Moon's Phases: A beautiful astronomical example is the phases of the Moon. The "phase" of the Moon describes how much of the sunlit side we can see from Earth. This is determined by the relative positions (the phase difference in their orbits) of the Sun, Earth, and Moon. A New Moon occurs when the Moon is between the Earth and Sun (a specific orbital phase), while a Full Moon occurs when the Earth is between the Sun and Moon.
Common Mistakes and Important Questions
Q: Is phase the same as frequency?
Q: Can phase be greater than 360° or $ 2\pi $ radians?
Q: Why is a phase difference of 180° considered "perfect" cancellation?
Phase is the fundamental quantity that gives us a precise vocabulary to describe the progression of any repeating cycle. From the simple swing to complex global communication systems, understanding whether oscillations are in sync or out of sync—their phase relationship—is crucial. By mastering the concepts of phase measured in degrees and radians, and the resulting phenomena of constructive and destructive interference, we unlock a deeper understanding of the rhythmic patterns that govern our world, from the music we enjoy to the technology that connects us.
Footnote
1 AC (Alternating Current): An electric current that periodically reverses direction and changes its magnitude continuously with time, in contrast to Direct Current (DC) which flows only in one direction.
2 AM (Amplitude Modulation): A modulation technique used in electronic communication, most commonly for transmitting information via a radio carrier wave. In AM, the amplitude (strength) of the carrier wave is varied in proportion to the waveform being transmitted.
3 FM (Frequency Modulation): A method of encoding information on a carrier wave by varying its instantaneous frequency. This contrasts with amplitude modulation, in which the amplitude of the carrier wave varies, while the frequency remains constant.
4 GPS (Global Positioning System): A satellite-based radio navigation system that provides geolocation and time information to a GPS receiver anywhere on or near the Earth where there is an unobstructed line of sight to four or more GPS satellites.
