Simple Harmonic Motion
The Core Principles of Oscillation
Imagine gently pushing a child on a swing. The swing moves back and forth, again and again, around a central, resting point. This is oscillation. Now, imagine a special kind of oscillation that is perfectly smooth and predictable, like the ticking of a metronome. This is Simple Harmonic Motion.
At the heart of SHM are two key ideas:
- Restoring Force: Whenever the object is moved away from its equilibrium (resting) position, a force acts to pull it back. This is the "restoring force." Think of a spring: when you stretch it, it pulls back; when you compress it, it pushes back.
- Proportional Acceleration: The defining characteristic of SHM is that the acceleration of the object is directly proportional to its displacement from equilibrium and is always directed towards that equilibrium point. This is often called a "linear restoring force."
We can express this fundamental relationship with a simple formula:
Where:
$a$ is the acceleration,
$x$ is the displacement from equilibrium,
$\omega$ (omega) is the angular frequency (a constant that depends on the system).
The negative sign ($-$) shows that acceleration is always opposite to the direction of displacement.
Key Terms for Describing the Motion
To talk about SHM precisely, we use specific terms. The table below defines the most important ones.
| Term | Symbol | Definition | Unit (SI) |
|---|---|---|---|
| Displacement | $x$ | The instantaneous distance and direction from the equilibrium position. | Meter (m) |
| Amplitude | $A$ | The maximum displacement from equilibrium. It measures the "size" of the oscillation. | Meter (m) |
| Period | $T$ | The time taken for one complete cycle of motion (e.g., there and back). | Second (s) |
| Frequency | $f$ | The number of complete cycles per unit time. It is the inverse of the period. | Hertz (Hz) |
| Angular Frequency | $\omega$ | A measure of how fast the oscillation occurs, in radians per second. $\omega = 2\pi f = \frac{2\pi}{T}$. | Radian/Second (rad/s) |
The Mathematics Behind the Motion

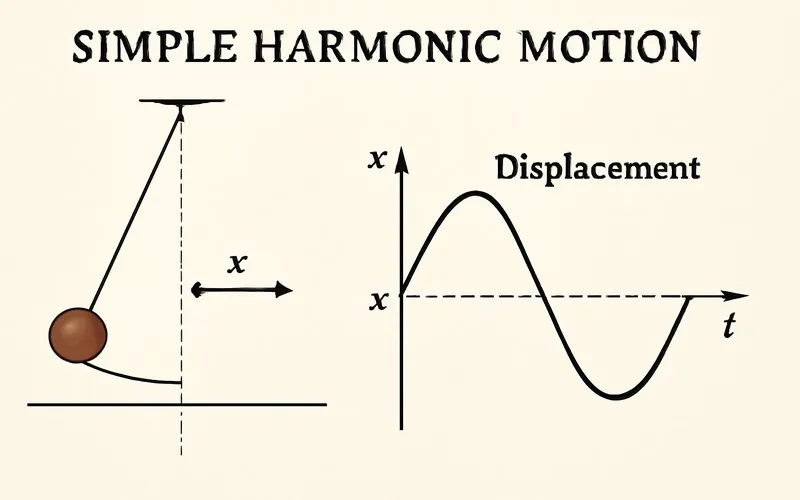

Since the acceleration is constantly changing, the displacement of an object in SHM follows a wave-like pattern, specifically a sine or cosine wave. The equation for displacement at any time $t$ is:
Where:
$x(t)$ is the displacement at time $t$,
$A$ is the amplitude,
$\omega$ is the angular frequency,
$t$ is time,
$\phi$ (phi) is the phase constant, which determines the starting position of the oscillation.
From this, we can derive the equations for velocity and acceleration by considering how quickly displacement changes (which is calculus). The results are:
- Velocity: $v = -\omega A \sin(\omega t + \phi)$
- Acceleration: $a = -\omega^2 A \cos(\omega t + \phi)$
Notice that the acceleration equation $a = -\omega^2 A \cos(\omega t + \phi)$ is identical to $a = -\omega^2 x$, which confirms our original definition of SHM. The energy in an SHM system also constantly transforms between potential energy (stored energy, like in a stretched spring) and kinetic energy (energy of motion). The total mechanical energy remains constant if we ignore friction.
Oscillations in Action: Real-World Examples
SHM isn't just a theoretical concept; it's all around us. Let's look at two classic examples.
1. Mass on a Spring: This is the most direct example. When you attach a mass to a spring and pull it down, the spring exerts a restoring force described by Hooke's Law[1]: $F = -k x$, where $k$ is the spring constant. Since $F = m a$, we get $m a = -k x$, or $a = -(\frac{k}{m}) x$. This matches the SHM condition $a = -\omega^2 x$, where $\omega^2 = \frac{k}{m}$. Therefore, the period of oscillation for a mass-spring system is:
Notice that the period depends only on the mass ($m$) and the stiffness of the spring ($k$), not on the amplitude ($A$). A heavier mass or a weaker spring results in a longer, slower oscillation.
2. The Simple Pendulum: A pendulum bob swinging back and forth through small angles (less than about 15°) is a very good approximation of SHM. The restoring force is a component of gravity. For a pendulum of length $L$, the period is given by:
Where $g$ is the acceleration due to gravity. This tells us that the period of a pendulum depends only on its length and gravity, not on the mass of the bob or the amplitude of the swing (for small angles). This is why pendulums were used in accurate clocks for centuries.
Other examples include the vibration of a guitar string, the motion of a diving board after a diver jumps, and the oscillation of electrons in an antenna.
Common Mistakes and Important Questions
A: No, absolutely not. The velocity is constantly changing. It is zero at the maximum displacement (the turning points) and maximum as the object passes through the equilibrium position. Remember, a changing velocity means there is acceleration.
A: Acceleration is greatest where the displacement is greatest (at the amplitude, $x = \pm A$). This is where the restoring force is strongest. Acceleration is zero when the displacement is zero (at the equilibrium point). At this moment, the restoring force is zero, and the object is moving at its maximum speed.
A: For a true, ideal Simple Harmonic Motion system, no. The period ($T$) is independent of the amplitude ($A$). This is a key feature of the linear restoring force. Whether you pull a mass-spring system a little or a lot, the time for one complete cycle remains the same (as long as the spring is not overstretched). The same is true for a pendulum at small angles.
Simple Harmonic Motion is a beautiful and precise model that describes a vast array of oscillatory phenomena in our world. From the grand, slow swing of a pendulum in a grandfather clock to the rapid, invisible vibrations of atoms in a molecule, SHM provides the fundamental language of rhythm and repetition in physics. Understanding its core principle—that acceleration is proportional and opposite to displacement—unlocks the ability to predict and describe the motion of countless systems. While real-world oscillations often involve friction and damping, the ideal model of SHM remains a cornerstone of physics, essential for progressing to more advanced topics in waves and quantum mechanics.
Footnote
[1] Hooke's Law: A principle of physics stating that the force needed to extend or compress a spring by some distance is proportional to that distance. It is mathematically expressed as $F = -k x$, where $F$ is the force, $k$ is the spring constant (stiffness), and $x$ is the displacement.
