Boyle's Law: The Pressure-Volume Relationship
The Discovery and Definition of Boyle's Law

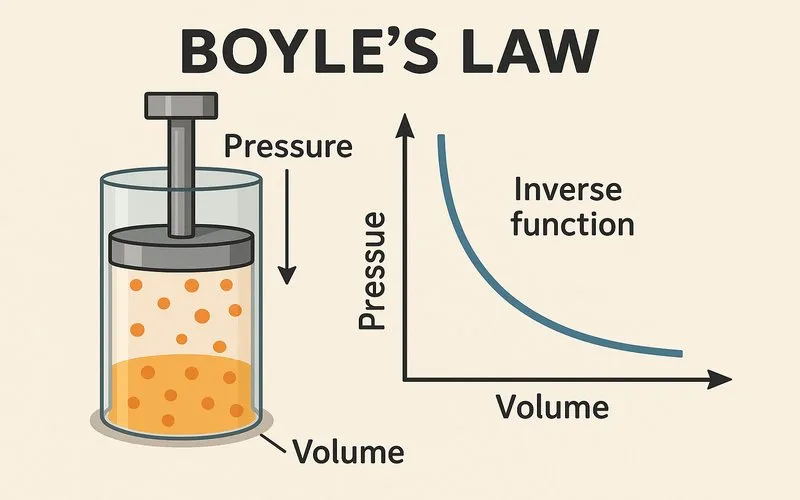

In the 1660s, an Irish natural philosopher named Robert Boyle conducted a series of experiments using a J-shaped glass tube. He trapped a fixed amount of air in the sealed, short end of the tube and then carefully poured mercury into the open, long end. By adding mercury, he increased the pressure on the trapped air and observed that its volume decreased. After many meticulous measurements, he concluded that the volume of a gas is inversely proportional to its pressure, provided the temperature does not change.
An inverse relationship means that when one value goes up, the other goes down. Think of a seesaw: when one side rises, the other falls. In the case of Boyle's Law:
- If you increase the pressure on a gas (squeeze it), its volume will decrease.
- If you decrease the pressure on a gas (give it more space), its volume will increase.
This makes intuitive sense. Imagine squeezing a balloon. As you apply pressure with your hands (increasing pressure), the balloon gets smaller (decreasing volume). When you let go, the pressure decreases and the volume increases again.
The relationship is captured by the simple formula: $P_1 V_1 = P_2 V_2$.
Where:
$P_1$ and $V_1$ are the initial pressure and volume.
$P_2$ and $V_2$ are the final pressure and volume.
Why Does Boyle's Law Work? The Particle Theory Explanation
To understand why pressure and volume are inversely related, we need to think about gases on a tiny scale. Gases are made up of vast numbers of tiny particles (atoms or molecules) that are constantly moving and colliding with each other and with the walls of their container.
Pressure is the result of these countless collisions of gas particles against the container walls.
Now, consider a gas inside a sealed syringe with a movable piston.
- Scenario 1: Decreasing Volume - If you push the piston in, you decrease the volume available to the gas particles. The same number of particles are now confined in a smaller space. This means the particles have less room to move, so they collide with the walls more frequently. More collisions per second means higher pressure.
- Scenario 2: Increasing Volume - If you pull the piston out, you increase the volume. The same number of particles now have a larger space to move around in. The particles will travel further before hitting the walls, resulting in fewer collisions per second. Fewer collisions mean lower pressure.
The key here is that the temperature and mass are constant. If the temperature changed, the speed of the particles would change, affecting the force of their collisions. If the amount of gas changed, the number of colliding particles would change.
A Section with the Theme of Practical Application or Concrete Example
Boyle's Law isn't just a abstract idea in a science book; it explains many phenomena we encounter in daily life and is crucial in various technologies.
Example 1: Breathing
Your lungs are a perfect example of Boyle's Law in action. Your diaphragm is like a piston.
- Inhalation: Your diaphragm muscle contracts and moves downward. This increases the volume inside your chest cavity. According to Boyle's Law, this increase in volume causes a decrease in pressure inside your lungs. The air pressure outside your body is now higher than the pressure inside your lungs, so air rushes in to equalize the pressure.
- Exhalation: Your diaphragm relaxes and moves upward. This decreases the volume inside your chest cavity. This decrease in volume causes an increase in pressure inside your lungs. The pressure inside your lungs is now higher than the outside air pressure, so air is pushed out.
Example 2: The Soda Bottle
A sealed bottle of soda is full of carbon dioxide (CO₂) gas dissolved in the liquid. The gas above the liquid is at high pressure. When you open the bottle, you suddenly increase the volume available to that high-pressure gas (it can now expand into the room). The rapid increase in volume causes a sharp decrease in pressure. The dissolved CO₂ in the soda is now at a much higher pressure than the gas above it, so it quickly comes out of solution in the form of bubbles. If you open it slowly, you hear a hiss—that's the high-pressure gas escaping as the volume changes.
Example 3: Scuba Diving
For scuba divers, Boyle's Law is a matter of life and death. As a diver descends, the pressure from the water above increases, compressing the air in their lungs and buoyancy control device (BCD). If a diver holds their breath and ascends, the surrounding water pressure decreases. According to Boyle's Law, the air in their lungs will expand. If the diver does not exhale, this expanding air can overinflate and severely damage the lungs, a condition called pulmonary barotrauma. This is why the number one rule of scuba diving is never hold your breath.
Solving Problems with the Boyle's Law Equation
The formula $P_1 V_1 = P_2 V_2$ is a powerful tool for predicting how a gas will behave. The most important step is to ensure that the units for pressure and volume are consistent on both sides of the equation. They don't have to be standard international units (like Pascals and liters), but $P_1$ and $P_2$ must be in the same units, and $V_1$ and $V_2$ must be in the same units.
Sample Problem:
A balloon has a volume of 2.5 L at a pressure of 101 kPa. What will be its volume if the pressure is increased to 130 kPa? Assume constant temperature and gas amount.
Step-by-Step Solution:
- Identify the knowns and the unknown.
$P_1 = 101$ kPa
$V_1 = 2.5$ L
$P_2 = 130$ kPa
$V_2 = ?$ - Write down the Boyle's Law formula.
$P_1 V_1 = P_2 V_2$ - Rearrange the formula to solve for the unknown ($V_2$).
$V_2 = \frac{P_1 V_1}{P_2}$ - Plug in the known values.
$V_2 = \frac{(101 \text{ kPa}) \times (2.5 \text{ L})}{130 \text{ kPa}}$ - Calculate the answer.
$V_2 = \frac{252.5}{130} \approx 1.94$ L
As predicted by Boyle's Law, when the pressure increased, the volume decreased, from 2.5 L to about 1.94 L.
| Situation | Initial Conditions | Change | Result (Boyle's Law) |
|---|---|---|---|
| Syringe | Plunger out, large volume, low pressure. | Push plunger in (decrease volume). | Pressure increases noticeably. |
| Party Balloon | Inflated, high pressure inside. | Goes high in the atmosphere (lower outside pressure). | Volume expands until it pops. |
| Bubble from diver | Small at depth (high pressure). | Rises to surface (lower pressure). | Volume increases as it rises. |
Common Mistakes and Important Questions
Q: Does Boyle's Law apply if the gas is not in a closed container?
No, it does not. Boyle's Law requires a fixed mass of gas. If the gas can escape or if more gas can enter (like in an open beaker), the amount of gas is not constant, and the law does not hold. The container must be closed.
Q: What is the most common mistake students make when using the formula $P_1 V_1 = P_2 V_2$?
The most common mistake is using inconsistent units. For example, using $P_1$ in kilopascals (kPa) and $P_2$ in atmospheres (atm), or $V_1$ in liters (L) and $V_2$ in milliliters (mL). You must convert the units so that the pressures match and the volumes match before you plug numbers into the equation. Another common error is forgetting that the temperature must be constant for Boyle's Law to be valid.
Q: How is Boyle's Law different from Charles's Law?
Boyle's Law focuses on the relationship between pressure and volume when temperature is constant. Charles's Law, another important gas law, focuses on the relationship between volume and temperature (in Kelvin) when pressure is constant. Boyle's Law shows an inverse relationship (P up, V down), while Charles's Law shows a direct relationship (T up, V up).
Boyle's Law provides a clear and predictable description of how gases respond to changes in pressure and volume. From the fundamental explanation using particle theory to its vital applications in biology and technology, this law is a cornerstone of our understanding of the physical world. Remembering the simple inverse relationship—squeezing a gas decreases its volume and increases its pressure, and vice-versa—along with its mathematical formula $P_1 V_1 = P_2 V_2$, empowers us to explain everyday phenomena and solve practical scientific problems. It is the first of several gas laws that, when combined, form the Ideal Gas Law, a more comprehensive model for gas behavior.
Footnote
1 CO₂: Carbon Dioxide. A colorless, odorless gas produced by burning carbon and organic compounds and by respiration. It is naturally present in air and is absorbed by plants in photosynthesis.
2 kPa: Kilopascal. A unit of pressure defined as one thousand pascals. It is a common unit for measuring gas pressure.
3 BCD: Buoyancy Control Device. An inflatable vest used by scuba divers to control their buoyancy underwater by adding or releasing air.
