Electric Field Strength: The Invisible Force
What is an Electric Field?
Imagine you have a magnet and some iron filings. Without touching them, the magnet can make the filings move. An electric field is similar but for electric charges. It is an invisible region of space around a charged object where another charge will feel a force. If you have ever rubbed a balloon on your hair and then stuck it to a wall, you have seen an electric field in action! The charged balloon creates an electric field that interacts with the charges in the wall, producing a force that holds it up.
The strength of this electric field, called the Electric Field Strength and represented by the letter $ E $, is defined very precisely. It is the force experienced per unit positive charge. This means we imagine placing a very small, positive test charge at a point in the field, measure the force on it, and then divide that force by the size of the test charge. The test charge must be small so that it doesn't disturb or change the original electric field we are trying to measure.
The electric field strength $ E $ is given by the equation: $ E = \frac{F}{q} $
Where:
$ E $ is the Electric Field Strength (measured in Newtons per Coulomb, N/C).
$ F $ is the Force experienced by the test charge (measured in Newtons, N).
$ q $ is the magnitude of the test charge (measured in Coulombs, C).
Properties and Direction of Electric Fields

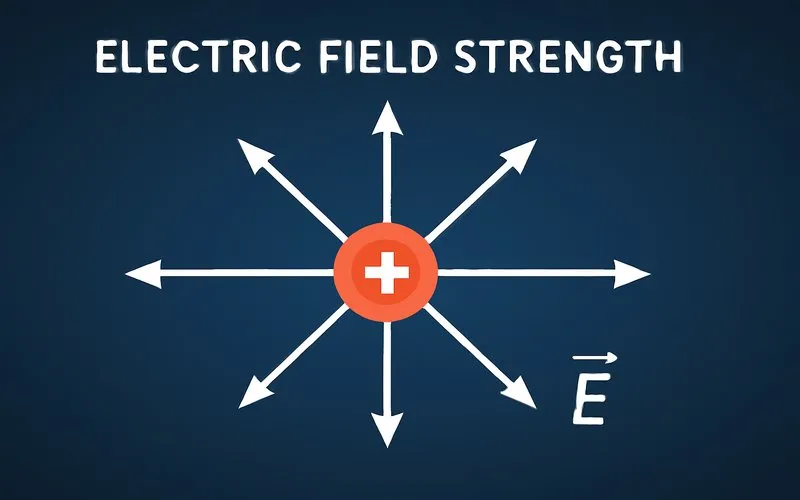

Electric fields are not just about strength; they also have a direction. The direction of an electric field at any point is defined as the direction of the force that would act on a positive test charge placed at that point. This is a crucial rule. For a positive source charge, the electric field lines point away from it because a positive test charge would be repelled. For a negative source charge, the field lines point towards it because a positive test charge would be attracted.
The density of these field lines tells us about the field's strength. Where the lines are closer together, the electric field is stronger. Where they are farther apart, the field is weaker. This is why the electric field is strongest near a charged object and gets weaker as you move further away.
Calculating Field Strength from a Single Charge
For a single, isolated point charge, there is a direct formula to calculate the electric field strength it creates at any given distance. This formula combines the main definition with Coulomb's Law[1].
The electric field strength $ E $ a distance $ r $ from a point charge $ Q $ is: $ E = \frac{k |Q|}{r^2} $
Where:
$ k $ is Coulomb's constant $ (8.99 \times 10^9 N m^2 / C^2) $.
$ Q $ is the source charge creating the field.
$ r $ is the distance from the charge.
Example: Let's calculate the electric field strength $ 0.1 m $ away from a positive charge of $ 2 \times 10^{-6} C $.
Using the formula: $ E = \frac{(8.99 \times 10^9) \times (2 \times 10^{-6})}{(0.1)^2} $
First, calculate the numerator: $ (8.99 \times 10^9) \times (2 \times 10^{-6}) = 1.798 \times 10^4 $
Then, the denominator: $ (0.1)^2 = 0.01 $
So, $ E = \frac{1.798 \times 10^4}{0.01} = 1.798 \times 10^6 N/C $.
The field strength is $ 1.8 \times 10^6 N/C $ directed away from the positive charge.
Uniform vs. Non-Uniform Electric Fields
Not all electric fields are the same. They can be classified based on how the field strength and direction change from point to point.
A Uniform Electric Field has the same strength and direction at every point within it. The field lines are parallel, straight, and equally spaced. This is the kind of field found between two parallel metal plates with opposite charges, which is a common setup in capacitors.
A Non-Uniform Electric Field has a strength and/or direction that changes from point to point. The field lines are curved and not equally spaced. The field around a single point charge is a perfect example of a non-uniform field; it is strong close to the charge and weakens as you move further away.
| Feature | Uniform Field | Non-Uniform Field |
|---|---|---|
| Field Line Pattern | Parallel, straight, and equally spaced | Curved and not equally spaced |
| Field Strength | Constant everywhere | Changes with position |
| Common Example | Between parallel charged plates | Around a single point charge |
| Force on a Charge | Constant force, $ F = qE $ | Varying force |
Electric Fields in Action: From Balloons to Lightning
Let's look at a practical example using a charged balloon. When you rub a balloon on your hair, electrons[2] move from your hair to the balloon, giving the balloon a negative charge. Now, imagine we bring a small positive test charge close to the balloon. According to our definition, the electric field strength $ E $ at that point is the force per unit charge that this test charge would feel. Since opposite charges attract, the force on the positive test charge is towards the balloon. Therefore, the electric field vector at that point points towards the negatively charged balloon.
On a much larger and more powerful scale, lightning is a dramatic demonstration of a strong electric field. During a thunderstorm, charges separate within clouds, creating a huge electric field between the cloud and the ground. When this electric field strength becomes great enough, it overcomes the insulating property of the air, causing a rapid discharge of electricity – a lightning bolt. The lightning follows the path of the strongest electric field.
Common Mistakes and Important Questions
Q: Is the test charge in the definition of E positive or negative?
The definition specifies a unit positive charge. This is a convention that ensures the electric field vector points in the direction of the force that a positive charge would experience. If we used a negative test charge, the force direction would be opposite to the field direction, which would be confusing.
Q: What is the difference between electric force and electric field strength?
Electric force ($ F $) depends on both the source creating the field and the charge feeling the force ($ F = qE $). Electric field strength ($ E $) is a property of the space itself; it exists regardless of whether another charge is there to feel a force. The field tells you the force that would be exerted on a charge if you placed one there.
Q: Why does the formula for a point charge have an absolute value on Q ($ |Q| $)?
The absolute value ensures that the electric field strength ($ E $) is always a positive number. The strength or magnitude of the field is always positive. The direction (which is determined by the sign of $ Q $) is handled separately. A positive $ Q $ gives a field pointing away, and a negative $ Q $ gives a field pointing towards it.
Electric Field Strength is a powerful concept that allows us to quantify and visualize the invisible influence a charged object has on the space around it. Defined as the force per unit positive charge ($ E = F / q $), it provides a map of how other charges will be pushed or pulled. From the simple attraction of a charged balloon to the awesome power of a lightning strike, electric fields are fundamental to understanding a vast range of physical phenomena. Mastering this topic provides a solid foundation for further exploration in physics and electronics.
Footnote
[1] Coulomb's Law: A fundamental law of electrostatics stating that the electric force between two point charges is directly proportional to the product of the charges and inversely proportional to the square of the distance between them. Formula: $ F = \frac{k Q_1 Q_2}{r^2} $.
[2] Electron: A subatomic particle with a negative electric charge. The transfer of electrons is the cause of most common static electricity effects.
