The Test Charge: A Tiny Explorer of Electric Fields
What Exactly is a Test Charge?
Imagine you are in a completely dark room and you want to know the shape of the objects inside. You might toss a small, glowing ball into the room and watch its path. The ball itself is so small and light that it doesn't knock anything over or change the room's layout; it simply reveals what was already there. A test charge is the scientific version of that glowing ball, but for electric fields.
An electric field is an invisible region of space around any electrically charged object. It exerts a force on any other charged object placed within it. The test charge is our tool for "seeing" this field. It is defined by two key characteristics:
- It has a very small magnitude of charge, denoted by the symbol $ q_0 $.
- It carries a positive charge by convention.
Why must it be small and positive? Let's break it down. If the test charge were large, its own electric field would be strong enough to push or pull on the source charges that are creating the field we're trying to measure. This would rearrange the source charges, thereby changing the very electric field we are investigating! A small charge ensures its own field is negligible. The positive convention is simply a historical agreement that makes communication and calculation consistent worldwide; we could map fields with a negative charge, but the directions would be reversed.
The Ideal Properties of a Perfect Test Charge
For a test charge to do its job perfectly, it must be idealized. In the real world, we can get very close to these conditions, but for mapping purposes, we imagine a perfect test charge.
| Property | Description | Analogy |
|---|---|---|
| Small Magnitude | Its charge $ q_0 $ is tiny enough that its own electric field does not disturb the source charges or the field being measured. | A feather used to test wind direction doesn't change the wind itself. |
| Positive Sign | By convention, it is positive. This defines the direction of the electric field as the direction a positive charge would move. | Using "North" as the standard reference direction on all maps. |
| Point-like | It is considered a point charge, having no size, so we can measure the field at a single, specific location. | Using a single pixel on a screen to determine the exact color at that spot. |
From Force to Field: The Defining Equation
The core mathematical relationship that defines the electric field using a test charge is both simple and powerful. The electric field vector, $ \vec{E} $, at any point in space is defined as the force, $ \vec{F} $, experienced by a test charge placed at that point, divided by the magnitude of the test charge itself, $ q_0 $.
$ \vec{E} = \frac{\vec{F}}{q_0} $
The units of electric field are Newtons per Coulomb ($ N/C $). This makes sense because it tells us how many Newtons of force a one Coulomb charge would experience at that location. Since the test charge $ q_0 $ is positive, the force $ \vec{F} $ and the electric field $ \vec{E} $ always point in the same direction. If you place the test charge near a positive source charge, it will be repelled, and the force vector points away from the source. If you place it near a negative source charge, it will be attracted, and the force vector points toward the source. The electric field vector does the same.
Mapping the Field: Drawing Electric Field Lines
Once we understand the force on a test charge at a single point, we can start moving it around. By placing the test charge at countless different locations and noting the direction of the force it feels, we can map the entire electric field. Scientists represent this map with electric field lines.
Rules for Drawing Electric Field Lines:
- They begin on positive charges and end on negative charges.
- The direction of the line at any point shows the direction of the force a positive test charge would experience.
- The density of the lines (how close they are together) indicates the strength of the field. Closer lines mean a stronger field.
- Field lines never cross each other.

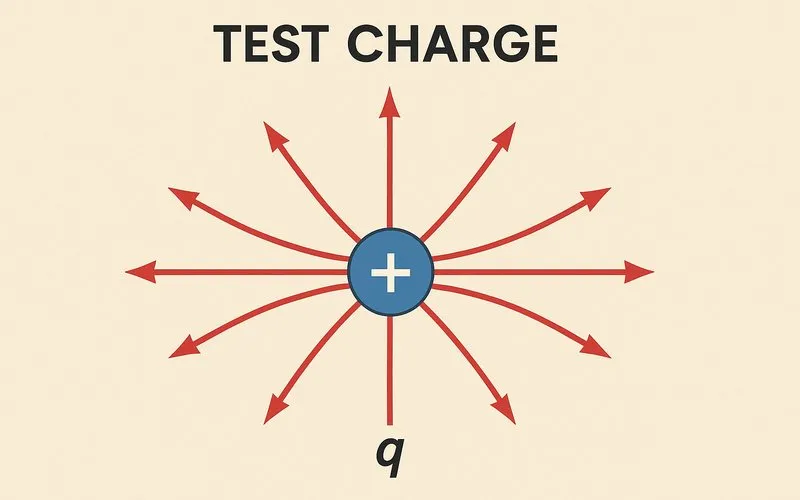

For example, the electric field around a single positive point charge can be mapped by imagining a positive test charge being placed at various points around it. The test charge would be repelled directly away from the source charge every single time. This results in a field line map that looks like the spokes of a bicycle wheel, radiating outward in all directions. The lines are closer together near the charge, where the field is strongest, and spread out as you move away.
A Practical Example: Mapping a Dipole Field
Let's apply the concept of a test charge to a common configuration: an electric dipole. An electric dipole is simply a pair of equal but opposite charges, $ +Q $ and $ -Q $, separated by a small distance.
To map this field, we take our trusty positive test charge and start placing it in different spots.
- To the right of the positive charge: The test charge is repelled by $ +Q $ and attracted to $ -Q $. Both forces push it to the right. The field line points away from $ +Q $ and curves to the right.
- To the left of the negative charge: The test charge is attracted to $ -Q $ and repelled by $ +Q $. Both forces push it to the left. The field line points towards $ -Q $ and curves to the left.
- At a point directly above the midpoint between them: The test charge is repelled to the right by $ +Q $ and attracted downward to $ -Q $. The net force is a diagonal vector pointing down and to the right. This is the direction of the field line at that point.
By repeating this process for hundreds of points, we would see a beautiful, symmetric pattern emerge: field lines leave the positive charge, curve through space, and land on the negative charge. This visual map, created conceptually with our test charge, gives us an intuitive understanding of how charges interact in this system.
Common Mistakes and Important Questions
Is a test charge a real, physical object?
A test charge is primarily a theoretical concept used for definition and visualization. In practice, we can use a real charged particle like a proton or a charged bead to probe a field, but it will only act as a perfect test charge if its own charge and mass are small enough not to disturb the system. For most thought experiments and calculations, we treat it as an ideal point charge.
Why can't we use a large test charge?
Using a large test charge is like using a giant magnet to map a small refrigerator magnet's field. The giant magnet's own strong field would overpower and rearrange the field of the small magnet, giving you a false reading. Similarly, a large $ q_0 $ would exert significant force on the source charges, moving them and altering the original electric field you set out to measure.
What happens if I use a negative test charge?
You can, but you must be very careful with direction. The electric field $ \vec{E} $ is still defined as $ \frac{\vec{F}}{q_0} $. If $ q_0 $ is negative, the force $ \vec{F} $ will be in the opposite direction to the field $ \vec{E} $. So, a negative test charge will be pulled in the direction opposite to the arrowheads of the electric field lines. The field itself hasn't changed, only the motion of this particular probe.
Conclusion: The Power of a Small Idea
Footnote
This article uses the following terms and abbreviations which are defined here for clarity:
- Electric Field (E): A vector field around a charged object that represents the force per unit charge that would be exerted on a test charge at any point in space. Measured in Newtons per Coulomb ($ N/C $).
- Electric Dipole: A pair of equal and opposite charges, separated by a small distance. A common configuration for studying electric fields.
- Point Charge: An idealized model of a charged object where the charge is considered to be concentrated at a single point in space, with no physical size.
- Vector: A physical quantity that has both magnitude (size) and direction, such as force or electric field.
