Water Level: The Height of Water
The Basics of Measuring Water Level
At its core, measuring water level is like using a ruler. You need a starting point (the zero mark) and a scale to measure the height. In science and engineering, the starting point is called a datum. A common datum is sea level, which is considered an average height of the ocean's surface. When we say a mountain is 2,000 meters high, we mean it is 2,000 meters above sea level.

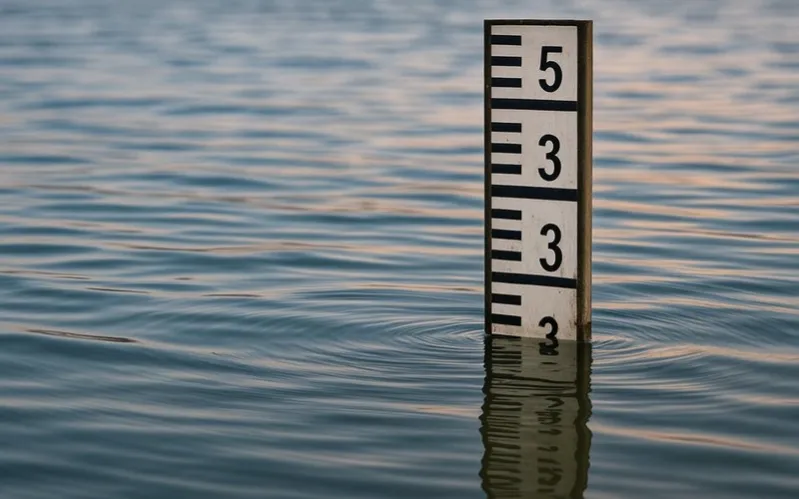

Imagine a ruler placed vertically in a glass of water. The point where the water touches the ruler is the water level. This simple tool is called a staff gauge and is commonly seen on the pillars of bridges or the walls of reservoirs. The height is usually measured in units like meters, feet, or centimeters.
$ \text{Average Level} = \frac{1.2 + 1.5 + 1.3}{3} = \frac{4.0}{3} \approx 1.33 \text{ meters} $
Absolute vs. Relative Water Level
It's important to distinguish between two main types of water level measurements:
Absolute Water Level: This is the height measured from a fixed, universal datum. The most important example is sea level. Scientists use complex measurements to determine a global average sea level, which serves as a reference point for mapping elevations all over the planet. Changes in global sea level, often discussed in the context of climate change, are an example of an absolute water level change.
Relative Water Level: This is the height measured from a local or arbitrary point. For instance, the water level in a well is measured from the bottom of the well upwards. The depth of a river is measured from its bed. This measurement is "relative" to that specific location and is most useful for local conditions, like knowing if a well is about to run dry or if a river is high enough for boating.
Forces That Change Water Levels
Water levels are rarely perfectly still. They change due to a variety of natural and human-made forces. Understanding these forces helps us predict and manage water resources.
| Force | Description | Example |
|---|---|---|
| Tides | The gravitational pull of the moon and sun causes the ocean's level to rise (high tide) and fall (low tide) predictably. | The water level at a beach can change by several meters between high and low tide. |
| Precipitation & Evaporation | Rain and snow (precipitation) add water, raising levels. Heat from the sun turns water into vapor (evaporation), lowering levels. | A lake's level rises after a heavy storm and drops during a long, hot drought. |
| Runoff | Water from rain or melting snow that flows over the land into rivers and lakes. | A river level increases rapidly during spring snowmelt in the mountains. |
| Human Activity | Opening or closing a dam gate, pumping water from an aquifer[2], or diverting water for irrigation. | The water level behind a dam drops when gates are opened to release water for hydropower. |
| Wind & Pressure | Strong winds can push water to one side of a lake (storm surge). Low atmospheric pressure can cause sea level to rise slightly. | During a hurricane, water piles up along the coast, causing severe flooding. |
Tools and Technology for Measurement
From ancient times to the space age, the tools for measuring water level have evolved dramatically.
Simple Tools: The staff gauge is the most basic tool—a graduated ruler placed in the water. A float gauge uses a buoyant float connected to a recording device. As the water level changes, the float moves up and down, and a pen marks the level on a rotating drum of paper, creating a graph called a hydrograph.
Electronic Sensors: Modern systems often use pressure transducers. This device is placed underwater and measures the pressure exerted by the water column above it. Since pressure is related to height ($ \text{Pressure} = \text{Density} \times \text{Gravity} \times \text{Height} $), it can accurately calculate the water level. These sensors can send data instantly to computers via satellites or cellular networks.
Advanced Technology: Satellites use radar altimetry to measure the height of the ocean surface from space. They send a radar pulse towards Earth and measure the time it takes for the echo to return. This provides incredibly precise global data on sea level rise.
Monitoring a Local Reservoir: A Practical Application
Let's follow a year in the life of a fictional reservoir, "Lake Clearwater," to see how water level management works in practice. The reservoir provides drinking water for a nearby town and helps control flooding.
Spring: Heavy rains and melting snow cause the lake's water level to rise rapidly. Engineers carefully monitor the level using electronic sensors. If the level gets too high and threatens the dam's safety, they may need to open the spillway gates to release some water in a controlled way, preventing a catastrophic flood downstream.
Summer: The weather is hot and dry. evaporation increases, and the town uses more water for lawns and gardens. The water level in the reservoir begins to drop. The managers must balance water supply for the people with the need to keep enough water in the lake for the ecosystem of fish and plants.
Autumn: Rains return, helping to replenish the reservoir. The goal is to fill the reservoir back to its optimal level before winter.
Winter: Water usage is lower, but managers must prepare for spring snowmelt. They may lower the level slightly to create storage space for the incoming spring runoff, a process called "drawdown." Throughout the year, the water level is a key indicator of the community's water security.
Common Mistakes and Important Questions
Footnote
[1] Datum: A fixed reference point, line, or surface used as a basis for measurement. In water level context, it is often a standardized elevation like sea level.
[2] Aquifer: An underground layer of water-bearing permeable rock, rock fractures, or unconsolidated materials (gravel, sand, or silt) from which groundwater can be extracted using a water well.
