Capacitors in Series: Unlocking the Secrets of Combined Capacitance
The Core Concept: Why Capacitance Decreases
Imagine you are trying to fill a large water tank using two narrow, separate pipes instead of one wide one. The flow of water would be much slower, right? Capacitors in series work in a similar way. A capacitor is a component that stores electrical energy, much like a small battery. Its capacity, called capacitance, is measured in Farads (F)[1]. When you connect capacitors in series, you are effectively increasing the total distance between the conductive plates that store the charge, which makes it harder to store a large amount of charge for a given voltage. This is why the overall capacitance becomes less than the smallest capacitor in the series chain.

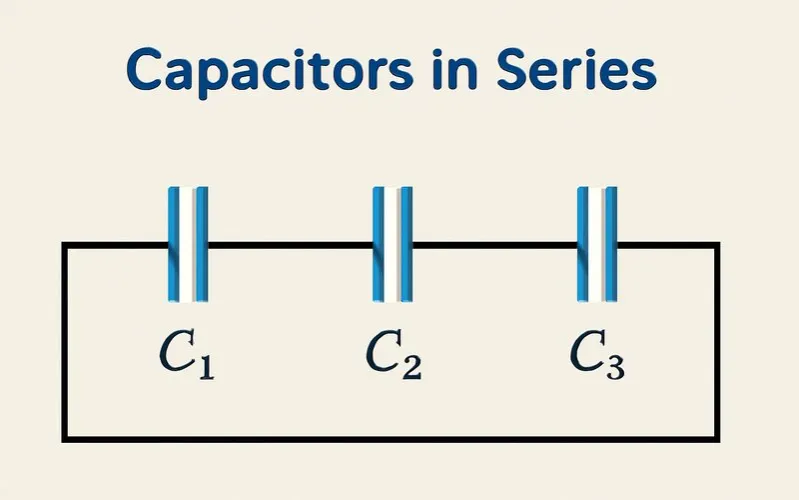

The total capacitance ($C_{total}$) for capacitors in series is calculated using the reciprocal formula:
$$ \frac{1}{C_{total}} = \frac{1}{C_1} + \frac{1}{C_2} + \frac{1}{C_3} + \ ... $$ Where $C_1$, $C_2$, $C_3$, etc., are the individual capacitances.
The Mathematical Rule and Its Derivation
Let's break down why this specific formula is used. The key to understanding series capacitors lies in two fundamental principles:
- Charge ($Q$) is the Same: In a series connection, there is only one path for the electric charge to flow. Therefore, the same amount of charge is stored on every capacitor in the series. If a charge $+Q$ is on one plate of the first capacitor, a charge $-Q$ is induced on the adjacent plate of the second capacitor, and so on. This means $Q_{total} = Q_1 = Q_2 = Q_3 = \ ...$.
- Voltages Add Up: The total voltage ($V_{total}$) from the power source (like a battery) is split across all the capacitors. The voltage across each capacitor depends on its capacitance. According to the basic capacitor equation $V = Q / C$, a smaller capacitor will have a larger voltage across it for the same charge. So, $V_{total} = V_1 + V_2 + V_3 + \ ...$.
Starting from the relationship $V = Q / C$, we can write for the total circuit: $V_{total} = Q / C_{total}$.
And for the individual capacitors: $V_1 = Q / C_1$, $V_2 = Q / C_2$, $V_3 = Q / C_3$, etc.
Since the voltages add up: $V_{total} = V_1 + V_2 + V_3$
Substituting the expressions: $Q / C_{total} = (Q / C_1) + (Q / C_2) + (Q / C_3)$
Because the charge $Q$ is the same everywhere, we can divide every term by $Q$:
$1 / C_{total} = 1 / C_1 + 1 / C_2 + 1 / C_3$
This gives us the fundamental formula for capacitors in series.
Step-by-Step Calculation Examples
Let's solidify our understanding with some practical calculations.
Example 1: Two Equal Capacitors
Suppose you connect two $10 \mu F$ capacitors in series.
Using the formula: $1 / C_{total} = 1 / 10 + 1 / 10 = 2 / 10 = 1 / 5$
Therefore, $C_{total} = 5 \mu F$.
As you can see, the total capacitance is halved.
Example 2: Three Different Capacitors
Now, let's connect three capacitors: $2 \mu F$, $3 \mu F$, and $6 \mu F$ in series.
$1 / C_{total} = 1/2 + 1/3 + 1/6$
Find a common denominator, which is 6:
$1 / C_{total} = 3/6 + 2/6 + 1/6 = 6/6 = 1$
Therefore, $C_{total} = 1 \mu F$.
Notice that the total capacitance ($1 \mu F$) is less than the smallest capacitor in the series ($2 \mu F$).
| Individual Capacitances | Calculation | Total Series Capacitance |
|---|---|---|
| $C_1 = 4 \mu F$, $C_2 = 4 \mu F$ | $1/C_{total} = 1/4 + 1/4 = 1/2$ | $C_{total} = 2 \mu F$ |
| $C_1 = 5 \mu F$, $C_2 = 10 \mu F$ | $1/C_{total} = 1/5 + 1/10 = 3/10$ | $C_{total} \approx 3.33 \mu F$ |
| $C_1 = 1 \mu F$, $C_2 = 2 \mu F$, $C_3 = 3 \mu F$ | $1/C_{total} = 1/1 + 1/2 + 1/3 = 11/6$ | $C_{total} \approx 0.545 \mu F$ |
Real-World Applications and Circuit Behavior
Connecting capacitors in series is not just a mathematical exercise; it has very important practical uses.
1. Achieving Higher Voltage Ratings: Every capacitor has a maximum voltage it can handle, called its working voltage. If this voltage is exceeded, the capacitor can be permanently damaged. By connecting two or more capacitors in series, the applied voltage is divided among them. For example, if you have two identical $100V$ capacitors, connecting them in series creates a combination that can safely handle up to $200V$ (though the total capacitance is reduced). This technique is often used in high-voltage power supplies.
2. Creating Specific Capacitance Values: Sometimes, an engineer might need a very specific, non-standard capacitor value for a circuit. If they don't have that exact value available, they can often create it by combining standard-value capacitors in series or parallel. For instance, to get a $3 \mu F$ capacitor, one could connect a $5 \mu F$ and a $7.5 \mu F$ capacitor in series, as shown in the table above.
3. Camera Flash Circuits: The bright flash in a camera relies on a large amount of energy being released very quickly. This energy is stored in a capacitor. To achieve the high voltage needed to create the flash, multiple capacitors are often used in series within the flash circuit.
Common Mistakes and Important Questions
Q: Is the formula for series capacitors the same as for parallel resistors?
Yes, that's a great observation! The mathematical formula for calculating the total capacitance of capacitors in series is identical to the formula for calculating the total resistance of resistors in parallel. Both involve summing the reciprocals of the individual values. This is a common source of confusion, so it's helpful to remember: Series Capacitors act like Parallel Resistors in their mathematical treatment.
Q: Why is the total capacitance always less than the smallest capacitor?
Think back to the water pipe analogy. Connecting capacitors in series is like adding more narrow sections to a pipe. Each additional narrow section increases the overall resistance to flow. Electrically, you are increasing the total "distance" the electric field has to act across, which directly reduces the ability to store charge (capacitance). Mathematically, since you are adding positive reciprocal terms ($1/C$), the sum is always larger than the largest reciprocal, making $C_{total}$ smaller than the smallest individual $C$.
Q: What happens if I connect a large capacitor in series with a very small one?
The total capacitance will be dominated by the smaller capacitor and will be very close to its value. For example, a $1 \mu F$ capacitor in series with a $1000 \mu F$ capacitor gives a total capacitance of approximately $0.999 \mu F$, which is essentially the value of the smaller capacitor. This is because the reciprocal of the large capacitor ($1/1000$) is very small and contributes very little to the sum.
Understanding how capacitors behave in series is a cornerstone of electronics. The key takeaway is that connecting capacitors in series decreases the total capacitance, a result captured perfectly by the reciprocal sum formula: $1/C_{total} = 1/C_1 + 1/C_2 + \ ...$. This behavior, driven by the equal charge and additive voltage across each capacitor, is leveraged in real-world applications to achieve higher voltage ratings and create specific capacitance values. By mastering this concept, you build a strong foundation for exploring more complex circuits and their applications in the technology that powers our world.
Footnote
[1] Farad (F): The SI unit of electrical capacitance, named after the English physicist Michael Faraday. One farad is defined as the capacitance when one coulomb of charge causes a potential difference of one volt. Most capacitors used in everyday electronics are measured in microfarads ($\mu F$, millionths of a farad) or picofarads ($pF$, trillionths of a farad).
