Energy Stored in a Capacitor
What is a Capacitor and How Does it Store Energy?

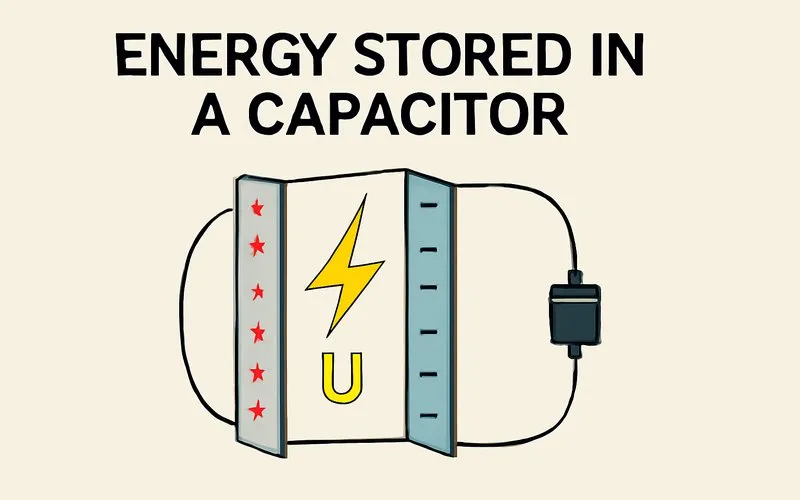

A capacitor is a fundamental electronic component, much like a tiny rechargeable battery, that stores electrical energy. Imagine it as a small storage tank for electricity. Its basic structure consists of two conductive plates separated by an insulating material called a dielectric[1]. When you connect a capacitor to a power source, like a battery, electrons flow from one plate to the other. This process is called charging. One plate becomes negatively charged (excess electrons), and the other becomes positively charged (deficit of electrons). This separation of charge creates an electric field between the plates, and it is within this field that the energy is stored.
The amount of charge a capacitor can hold for a given voltage is determined by its capacitance, denoted by the letter $ C $. Capacitance is measured in Farads (F), named after the scientist Michael Faraday. A larger capacitance means the capacitor can store more charge at the same voltage. The relationship between charge (Q), capacitance (C), and voltage (V) is given by the simple formula: $ Q = C V $.
The Work Behind Charging a Capacitor
Charging a capacitor isn't instantaneous; it requires work. Think of pumping air into a bicycle tire. The first few pumps are easy, but as the tire fills up, it becomes harder to push more air in because the pressure inside resists you. Similarly, when a capacitor is uncharged, it's easy for the first few electrons to move across. But as charge builds up on the plates, the voltage of the capacitor increases, creating a "pressure" that opposes the flow of more electrons from the battery.
To move a small amount of charge $ \Delta q $ against the growing voltage $ v $, a small amount of work $ \Delta w $ is needed, which is $ \Delta w = v \Delta q $. The total work done to charge the capacitor from zero to a final charge $ Q $ (and a final voltage $ V $) is the sum of all these small amounts of work. This total work is stored as electrical potential energy (U) in the capacitor's electric field.
Key Energy Formulas:
The energy (U) stored in a capacitor can be calculated using three equivalent formulas, depending on what quantities you know:
- $ U = \frac{1}{2} Q V $
- $ U = \frac{1}{2} C V^2 $
- $ U = \frac{Q^2}{2C} $
Where $ U $ is energy in Joules (J), $ Q $ is charge in Coulombs (C), $ V $ is voltage in Volts (V), and $ C $ is capacitance in Farads (F). The factor of $ \frac{1}{2} $ appears because the voltage builds up gradually during charging, not all at once.
Comparing Energy Storage in Different Components
It's helpful to compare how a capacitor stores energy versus a simple resistor or a battery. A resistor dissipates energy as heat; it doesn't store it. A battery stores energy chemically and can provide a steady voltage for a long time. A capacitor stores energy in an electric field and can release its energy very quickly, which is why it's useful for applications requiring a sudden burst of power.
| Component | Energy Storage Method | Release Speed | Typical Use |
|---|---|---|---|
| Resistor | Does not store energy | N/A | Limiting current, generating heat |
| Battery | Chemical potential energy | Slow and steady | Powering phones, laptops, cars |
| Capacitor | Electrical potential energy in an electric field | Very fast | Camera flashes, power backup, tuning radios |
A Practical Example: The Camera Flash
A classic example of a capacitor's energy storage and rapid release is a camera flash. The battery in a camera cannot supply the huge amount of power needed for a bright flash in an instant. Instead, the camera uses a circuit to slowly charge a large capacitor over a second or two. The work done by the battery is stored as energy in the capacitor. When you take a picture, the capacitor is quickly discharged through the flashbulb, releasing all its stored energy in a fraction of a second to produce a very bright flash of light.
Let's do a sample calculation. Suppose a camera flash uses a capacitor with a capacitance of 0.001 F (or 1000 µF) and is charged to a voltage of 300 V. How much energy is stored?
Using the formula $ U = \frac{1}{2} C V^2 $:
$ U = \frac{1}{2} \times (0.001) \times (300)^2 $
$ U = \frac{1}{2} \times 0.001 \times 90,000 $
$ U = 45 $ Joules
This 45 J of energy, released almost instantly, is enough to create a very bright flash.
Common Mistakes and Important Questions
Why is there a 1/2 in the energy formula?
This is the most common point of confusion. The factor of $ \frac{1}{2} $ comes from the averaging process during charging. The voltage across the capacitor starts at 0 and ends at V. The average voltage during the entire charging process is $ \frac{V}{2} $. Since work = average voltage × total charge, we get $ W = (\frac{V}{2}) \times Q = \frac{1}{2} Q V $. If the voltage were constant from the start, the factor would be 1, but it's not.
Can a capacitor store more energy than a battery?
For their size, batteries typically store much more energy than traditional capacitors. This is why your phone uses a battery and not a capacitor. However, a special type called a supercapacitor bridges this gap and can store a significant amount of energy, though still usually less than a battery of comparable size. The key advantage of capacitors (and supercapacitors) is their ability to release that energy much, much faster.
Where does the energy actually reside?
The energy is stored in the electric field that exists in the space between the two plates of the capacitor. It is not stored in the charges themselves or in the plates. When the capacitor discharges, this electric field collapses, and the energy is released back into the circuit.
Footnote
[1] Dielectric: An insulating material placed between the plates of a capacitor that increases its capacitance by reducing the electric field strength, allowing more charge to be stored at the same voltage.
