Fleming's Left-Hand Rule: Finding the Force's Direction
The Foundation: What is the Motor Effect?
Before diving into the rule itself, it's important to understand the phenomenon it describes: the motor effect. When an electric current flows through a conductor, like a wire, it creates a magnetic field around it. If you then place this current-carrying wire inside an external magnetic field (for example, between the poles of a horseshoe magnet), the two magnetic fields interact. One field pushes against the other, resulting in a mechanical force that acts on the wire. This force can make the wire move. This is the basic principle behind the operation of an electric motor, hence the name "motor effect."
How to Apply Fleming's Left-Hand Rule

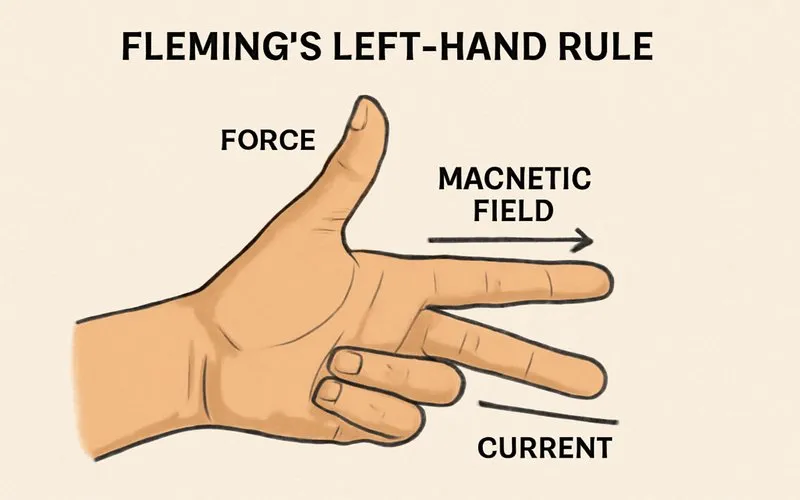

Fleming's Left-Hand Rule provides a simple, visual way to remember the relationship between the three key directions: Magnetic Field, Current, and Force. To use it, hold your left hand flat with your thumb, index finger, and middle finger all extended at right angles to each other, like three perpendicular axes.
Each finger represents a specific quantity:
| Finger | Represents | Direction |
|---|---|---|
| ThuMb | Motion / Force (F) | Shows the direction the conductor will move. |
| First Finger / Index Finger | Magnetic Field (B) | Points from North to South pole of the external magnet. |
| Center Finger / Middle Finger | Current (I) | Points in the direction of conventional current (positive to negative). |
A simple mnemonic to remember this is: First = Field, Center = Current, ThuMb = Motion (which is caused by Force).
Putting the Rule into Practice: A Simple Experiment
Imagine a classic classroom demonstration. You have a horseshoe magnet creating a magnetic field from its North pole to its South pole. A single wire is placed between the poles, connected to a battery. When the circuit is closed, current flows through the wire.
Let's say the magnetic field direction is from left to right (Index Finger), and the conventional current is flowing towards you (Middle Finger). Now, apply Fleming's Left-Hand Rule:
- Point your Index Finger to the right (direction of the Magnetic Field).
- Point your Middle Finger towards yourself (direction of the Current).
- Your thumb will now point upwards.
This means the wire will experience an upward force and will jump upwards. If you reverse the current (by switching the battery connections), your Middle Finger will point away from you, and your thumb will now point downwards, causing the wire to move down.
Why the Left Hand? The Difference from the Right-Hand Rule
It's common for students to get confused between the left-hand and right-hand rules. The key is to remember what each one is for:
Fleming's Left-Hand Rule is used for Motors. It deals with a current-carrying conductor that is being pushed by a magnetic field, resulting in motion. This is the "motor effect."
Fleming's Right-Hand Rule is used for Generators. It describes the opposite phenomenon: when a conductor is moved through a magnetic field, it generates an electric current. This is called electromagnetic induction.
A simple way to remember this is: Left for Motion, Right for 'lectricity (Generation).
Real-World Application: The Electric Motor
The most important application of Fleming's Left-Hand Rule is in the design and operation of a DC (Direct Current) electric motor. In a simple DC motor, a loop of wire (an armature) is placed between the poles of a permanent magnet. When current flows through the loop, one side of the loop experiences an upward force, and the other side experiences a downward force (as determined by the left-hand rule). This creates a turning effect, or a torque, that spins the loop.
A device called a commutator reverses the direction of current in the loop every half-turn. This ensures that the forces acting on the loop always push it in the same rotational direction, resulting in continuous rotation. Without Fleming's Left-Hand Rule, designing a motor that spins predictably would be much more difficult. From the tiny motor in a smartphone vibration unit to the powerful engine in an electric car, this principle is at work.
Common Mistakes and Important Questions
Q: I always forget which hand to use. Is there a trick?
A: Yes! Remember the phrase "Left for Labor, Right for Rest." Labor implies work and motion (like a motor doing work), while Rest implies generating something (like generating electricity in a power station).
Q: What happens if the current is parallel to the magnetic field?
A: If the current flows in the same direction (or opposite) as the magnetic field lines, the angle $\theta$ in the formula $F = B I L sin(\theta)$ becomes 0° or 180°. Since $sin(0°) = 0$ and $sin(180°) = 0$, the force will be zero. The conductor will not move. The force is maximum when the current is perpendicular to the field ($\theta = 90°, sin(90°) = 1$).
Q: Does the rule work for electron flow (negative to positive)?
A: Fleming's Left-Hand Rule is defined for conventional current, which flows from positive to negative. If you are considering electron flow (negative to positive), you must point your middle finger in the opposite direction of the electron flow before applying the rule. It's simpler to always convert to conventional current first.
Fleming's Left-Hand Rule is more than just a memory aid; it is a direct and intuitive representation of a fundamental law of physics. It bridges the gap between the abstract concepts of magnetic fields and electric currents and the tangible reality of motion and force. By mastering this simple rule, students unlock the ability to predict and understand the behavior of countless electromagnetic devices, most notably the electric motor that powers so much of our modern world. It serves as a perfect example of how a simple, elegant idea can explain and drive complex technological innovation.
Footnote
1. Conventional Current[1]: A historical model which describes current as flowing from positive to negative terminal. This is the standard used in circuit diagrams and rules like Fleming's, even though we now know that in metallic conductors, the actual electron flow is from negative to positive.
2. Magnetic Flux Density (B)[2]: A measure of the strength of a magnetic field, defined as the force acting per unit current on a unit length of conductor placed at right angles to the field. Its SI unit is the tesla (T).
3. Torque[3]: A measure of the force that can cause an object to rotate about an axis. In a motor, it is the rotational force produced by the current in the armature.
4. Commutator[4]: A rotary electrical switch in certain types of electric motors that periodically reverses the current direction between the rotor and the external circuit, ensuring continuous rotation.
