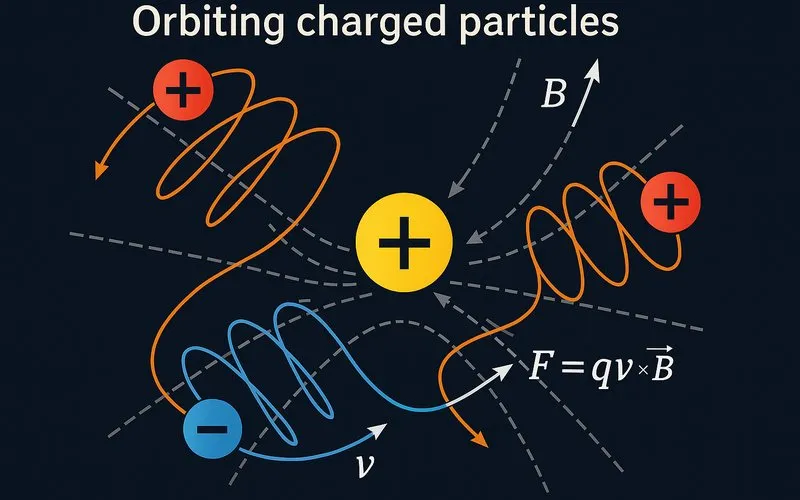

Orbiting Charged Particles

The Invisible Force That Bends Paths

Imagine you are riding a bicycle in a straight line. Suddenly, an invisible hand pushes you sideways, constantly changing your direction, making you move in a perfect circle. This is similar to what happens to a charged particle, like an electron or a proton, when it zooms into a magnetic field. The particle must be moving; a stationary charge feels no force from a magnetic field. And crucially, for the most dramatic effect—circular motion—its velocity must be perpendicular to the direction of the magnetic field lines.

The force responsible for this is called the magnetic force, a part of the broader Lorentz force^[1]. The strength of this force depends on three things:

The formula for the magnitude of this magnetic force is:

This force always acts at a right angle to both the velocity of the particle and the magnetic field direction. This is the key! Because the force is perpendicular to the motion, it doesn't speed up or slow down the particle; it only changes its direction. This is the perfect condition for uniform circular motion.

The Cosmic Carousel: Deriving the Orbit

In circular motion, an object is constantly pulled towards the center by a centripetal force^[2]. For a planet orbiting a star, that force is gravity. For a charged particle in a magnetic field, the magnetic force becomes the centripetal force.

The formula for the centripetal force required to keep an object of mass $ m $ moving with speed $ v $ in a circle of radius $ r $ is:

Since the magnetic force provides the centripetal force ($ F = F_c $), we can set the two equations equal to each other:

$ |q| v B = \frac{m v^2}{r} $

We can simplify this by canceling one $ v $ from both sides (assuming the particle is moving):

$ |q| B = \frac{m v}{r} $

Now, let's solve for the radius of the circle, $ r $:

This is a beautiful and powerful result. It tells us:

• Faster or heavier particles (larger $ m v $) orbit in larger circles because they have more momentum and are harder to bend.
• Stronger magnetic fields (larger $ B $) or higher charges (larger $ |q| $) force particles into tighter circles because the turning force is stronger.

We can also find out how long it takes for the particle to make one full trip around the circle—this is called the period ($ T $). The distance around a circle is the circumference, $ 2 \pi r $, and since speed is distance over time, $ v = \frac{2 \pi r}{T} $.

We can rearrange the radius formula to $ m v = |q| B r $ and substitute $ v $:

$ m \cdot \frac{2 \pi r}{T} = |q| B r $

Notice that the radius $ r $ cancels out completely! This leaves us with:

$ \frac{2 \pi m}{T} = |q| B $

Solving for the period $ T $:

This is even more surprising. The period of the orbit does not depend on the speed of the particle or the radius of the circle! A faster particle will take a wider path, but it will complete that larger circle in exactly the same time as a slower particle completing its smaller circle, as long as the mass, charge, and magnetic field strength are the same.

From Particle Accelerators to Northern Lights

This principle of charged particles orbiting in magnetic fields is not just a theoretical idea; it's the working principle behind many modern technologies and natural phenomena.

1. Particle Accelerators (Cyclotrons): A cyclotron is a machine that accelerates charged particles to very high speeds. It uses a constant magnetic field to bend the particles into a circular path and an oscillating electric field to give them a "kick" of speed each time they go around. According to our formulas, as the particle's speed $ v $ increases, the radius $ r $ of its path also increases. So, the particle spirals outward until it eventually leaves the machine and is used for experiments, for example, in cancer treatment or to create new materials.

2. Mass Spectrometry: Scientists use this technique to identify different atoms or molecules. A sample is ionized (given a charge), and the particles are shot into a magnetic field. Because the orbital radius $ r = \frac{m v}{|q| B} $ depends on the mass $ m $, heavier particles bend less and follow a wider arc than lighter particles. By measuring where the particles hit a detector, scientists can determine their mass, which is like a fingerprint for the substance.

3. The Aurora Borealis and Australis (Northern and Southern Lights): This stunning light show is a direct application of this physics on a planetary scale. The sun constantly sends out a stream of charged particles (mostly electrons and protons) called the solar wind. When these particles approach Earth, our planet's magnetic field captures them and funnels them toward the North and South Poles. As these particles spiral along the magnetic field lines, they collide with atoms of oxygen and nitrogen in the upper atmosphere. These collisions transfer energy to the atmospheric atoms, which then release that energy as the beautiful, shimmering light we see as the aurora.

4. Old-Television Cathode Ray Tubes (CRTs): Before flat-screen TVs, televisions and computer monitors used CRTs. In a CRT, a beam of electrons is fired toward the screen. Electromagnets around the tube produce magnetic fields that deflect the electron beam, steering it to hit specific phosphor dots on the screen to create an image. The precise control of the electron's circular path allowed it to "paint" the picture line by line.

Common Mistakes and Important Questions

Footnote

^[1] Lorentz Force: The combined force on a charged particle due to electric and magnetic fields. The full formula is $ \vec{F} = q\vec{E} + q(\vec{v} \times \vec{B}) $, where $ \vec{E} $ is the electric field. This article focuses on the magnetic part when $ \vec{E} = 0 $.

^[2] Centripetal Force: A center-seeking force that is necessary for an object to move in a circular path. It is always directed perpendicular to the velocity of the object and towards the center of the circle.
