Induced Current: The Magic of Electricity from Magnetism
The Discovery That Changed the World

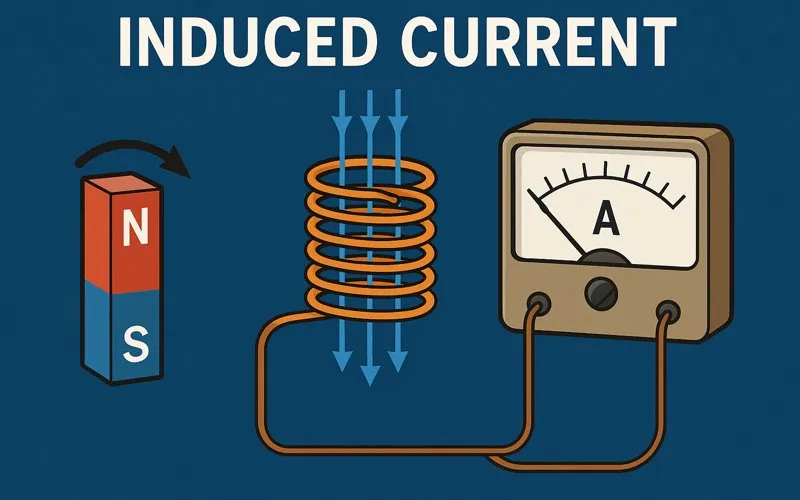

In 1831, the brilliant scientist Michael Faraday made a groundbreaking discovery. He found that he could create an electric current without batteries, simply by moving a magnet near a wire loop. This process of generating electricity from magnetism is called electromagnetic induction, and the resulting flow of electrons is known as an induced current. Faraday's experiments showed that a change is necessary; a steady magnet sitting next to a wire does nothing. It is the motion of the magnet into, out of, or near the wire that causes the magic to happen.
Understanding Magnetic Flux: The Key Player
To understand induced current, we first need to understand magnetic flux. Imagine magnetic field lines, like the lines you see when you sprinkle iron filings around a magnet. Magnetic flux ($\Phi_B$) is a measure of the total number of these magnetic field lines passing through a given area, like a loop of wire. It depends on the strength of the magnetic field ($B$), the area of the loop ($A$), and the angle ($\theta$) between the field lines and a line perpendicular to the area.
An induced current is produced only when this magnetic flux changes over time. This change can happen in three ways:
- Changing Magnetic Field: Increasing or decreasing the strength of the magnet.
- Changing Area: Changing the size or shape of the loop in the magnetic field (e.g., squashing or stretching it).
- Changing Angle: Rotating the loop relative to the magnetic field.
Faraday's Law and Lenz's Law: The Rules of Induction
Michael Faraday quantified his discovery into a law. Faraday's Law of Induction states that the induced electromotive force (EMF)[1] in any closed circuit is equal to the rate of change of the magnetic flux through the circuit. In simpler terms, the faster the magnetic flux changes, the larger the voltage and the stronger the induced current.
Where $\mathcal{E}$ is the induced EMF (voltage), $N$ is the number of loops in the coil, and $\frac{\Delta \Phi_B}{\Delta t}$ is the rate of change of magnetic flux.
But what about the negative sign? This is where Heinrich Lenz contributed. Lenz's Law gives the direction of the induced current. It states that the direction of the induced current is such that its own magnetic field opposes the change in magnetic flux that produced it. It's nature's way of saying "no" to change.
Example: If you push the north pole of a magnet into a coil, the coil will create its own magnetic field with a north pole facing the incoming magnet to repel it. This opposition determines the direction of the induced current flowing in the coil.
A Section with the Theme of Practical Application or Concrete Example
Induced current is not just a laboratory curiosity; it is the foundation of much of our modern electrical infrastructure. Let's look at some everyday applications.
Electrical Generators: Power plants use huge generators. Inside, coils of wire are spun rapidly inside strong magnetic fields (or vice-versa). This constant change in magnetic flux induces a massive current in the wires, which is then sent out through power lines to our homes and schools. A generator is essentially the opposite of an electric motor.
Transformers: These are the boxy devices on power poles. They use two coils of wire wrapped around an iron core. An alternating current (AC)[2] in the first coil (primary) creates a constantly changing magnetic field, which induces a current in the second coil (secondary). Transformers can "step up" (increase) or "step down" (decrease) the voltage, making it safe to use in our devices.
Induction Cooktops: These stoves have a coil underneath the glass surface. When you turn it on, a high-frequency alternating current runs through the coil, creating a rapidly changing magnetic field. This field induces a current in the metal pot sitting on top, and the resistance of the pot to this current generates heat, cooking your food. The cooktop itself stays cool!
Electric Guitar Pickups: Under the strings of an electric guitar, there are magnets wrapped with coils of wire. When a metal string vibrates, it disturbs the magnetic field, changing the magnetic flux through the coil and inducing a tiny, fluctuating current. This current is then amplified to produce the sound you hear.
Comparing Direct and Induced Current
It's important to distinguish between the current from a battery and an induced current.
| Feature | Direct Current (DC) | Induced Current (AC) |
|---|---|---|
| Source | Batteries, solar cells | A changing magnetic field |
| Direction | Constant, one way | Changes direction (Alternating) |
| Requirement | A complete circuit | A changing magnetic flux |
| Example Use | Flashlight, phone | Household electricity, generators |
Common Mistakes and Important Questions
Q: If I hold a magnet perfectly still inside a coil, will an induced current flow?
A: No. A constant magnetic field, no matter how strong, will not induce a current. The magnetic flux through the coil must be changing. No change in flux means no induced EMF and no induced current.
Q: Why is Lenz's Law important? Isn't Faraday's Law enough?
A: Faraday's Law tells us the magnitude (size) of the induced EMF. Lenz's Law is crucial because it tells us the direction of the induced current. This direction is what ensures the conservation of energy. The magnetic field created by the induced current always works against the action that created it, meaning you have to do work to generate the current. If it were the other way around, you could get energy for free, which is impossible.
Q: Can I induce a current in a single, straight piece of wire, or does it have to be a loop?
A: Yes, you can! Moving a straight wire through a magnetic field will induce an EMF along its length. However, for a continuous current to flow, you generally need a complete circuit (a loop). Otherwise, the electrons have nowhere to go, and charge just builds up at the ends of the wire.
Conclusion
The discovery of induced current was a pivotal moment in human history, unlocking the ability to generate electricity on a massive scale. From the fundamental principles of magnetic flux, Faraday's Law, and Lenz's Law, we have built a world powered by generators, transformed by transformers, and made more convenient by devices like induction cooktops. Understanding this invisible interplay between magnetism and electricity is key to understanding the technology that shapes our daily lives.
Footnote
[1] EMF (Electromotive Force): Despite its name, it is not a force. It is the voltage ($\mathcal{E}$) generated by a battery or by the magnetic force that acts as the "energy pump" to drive an electric current through a circuit. Measured in Volts (V).
[2] AC (Alternating Current): An electric current that periodically reverses direction and changes its magnitude continuously with time, in contrast to direct current (DC), which flows only in one direction. The standard form of electricity delivered to businesses and residences.
