The Speed of Change: Understanding Rate and Faraday's Law

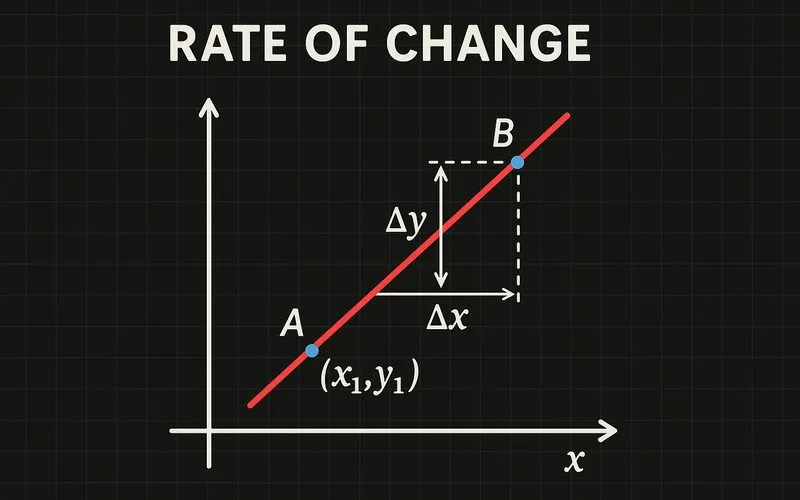

What is a Rate of Change?
At its heart, a rate of change is a measure of how fast something is happening. It's the speed at which one quantity changes relative to another. The most common rate we encounter is speed itself. If you travel 60 miles in 1 hour, your rate of change of distance with respect to time is 60 miles per hour.
Mathematically, we express the average rate of change as:
Where the Greek letter Delta ($\Delta$) means "change in." Let's look at some examples from different subjects:
| Context | Quantity Changing (y) | Rate of Change | Unit |
|---|---|---|---|
| Physics | Distance | Speed | m/s |
| Biology | Population | Growth Rate | organisms/year |
| Economics | Product Price | Inflation | $/year |
| Everyday Life | Water in a Bathtub | Flow Rate | liters/minute |
Introducing Faraday's Law of Induction
In the 1830s, the brilliant scientist Michael Faraday[1] made a discovery that would change the world. He found that a changing magnetic field could create, or "induce," an electric current in a wire loop. This is the principle of electromagnetic induction. Faraday's Law[2] quantifies this phenomenon.
Where:
- e.m.f. is the induced electromotive force[3] (a voltage) in volts (V).
- $N$ is the number of turns in the coil.
- $\Phi$ is the magnetic flux[4] in webers (Wb).
- $\Delta (N \Phi)$ is the change in magnetic flux linkage.
- $\Delta t$ is the time interval over which the change occurs in seconds (s).
- The negative sign is explained by Lenz's Law[5].
This formula tells us that the induced voltage is not directly proportional to the magnetic field's strength, but to how quickly the magnetic flux linkage is changing. A large, static magnet will induce no voltage. But a weak magnet moved very quickly can induce a significant voltage.
Breaking Down Magnetic Flux
To understand Faraday's Law, we must first understand magnetic flux ($\Phi$). Think of flux as the total number of magnetic field lines passing through a loop or coil. It depends on three factors:
- Magnetic Field Strength (B): A stronger magnet has more field lines.
- Area of the Loop (A): A larger loop can "catch" more field lines.
- Orientation ($\theta$): The angle between the field lines and a line perpendicular to the loop's surface.
The formula for magnetic flux is:
Imagine holding a hula hoop in a river. The amount of water flowing through the hoop is like the magnetic flux. It depends on the speed of the current (B), the size of the hoop (A), and how you tilt it ($\theta$). If you hold it parallel to the current, no water flows through ($\Phi = 0$). If you hold it perpendicular, you get maximum flow.
How Generators Create Electricity
The most important practical application of Faraday's Law is the electrical generator. A generator converts mechanical energy (motion) into electrical energy.
How it works: Inside a generator, a coil of wire is spun rapidly between the poles of a powerful magnet. This spinning continuously changes the magnetic flux through the coil.
- As the coil rotates, the angle $\theta$ between the field and the coil changes.
- According to $\Phi = B A \cos(\theta)$, this causes the flux $\Phi$ to change continuously.
- According to Faraday's Law, this changing flux induces an e.m.f. in the coil.
- This e.m.f. drives an alternating current (AC)[6] through the circuit, powering our homes and cities.
The faster the coil spins (i.e., the greater the rate of change of flux, $\frac{\Delta \Phi}{\Delta t}$), the greater the induced voltage and the more powerful the electricity generated.
A Simple Experiment You Can Visualize
You don't need a lab to understand this. Imagine pushing a bar magnet into a coil of wire connected to a light bulb.
- Magnet at rest: The magnetic flux through the coil is constant. Rate of change of flux is zero. Induced e.m.f. is zero. The bulb is off.
- Pushing the magnet in: The flux through the coil is increasing. Rate of change of flux is high. This induces an e.m.f., causing current to flow. The bulb lights up.
- Magnet stops inside: The flux is constant again. Rate of change returns to zero. The induced e.m.f. disappears, and the bulb turns off.
- Pulling the magnet out: The flux is now decreasing. Rate of change of flux is high (but negative). This induces an e.m.f. in the opposite direction, and the bulb lights up again.
This experiment clearly shows that it's the motion (the change) that creates the electricity, not the presence of the magnet itself.
Common Mistakes and Important Questions
A: No. A stationary magnet creates a constant magnetic flux. Since the rate of change of flux ($\frac{\Delta \Phi}{\Delta t}$) is zero, Faraday's Law tells us the induced e.m.f. is also zero. There must be a change for induction to occur.
A: The negative sign represents Lenz's Law. It means the induced current will always flow in a direction that opposes the change in flux that produced it. It's nature's way of conserving energy. If the induced current reinforced the change, it would create a perpetual motion machine, which is impossible.
A: This is a key point. The induced e.m.f. is not proportional to the magnetic field (B), but to the rate of change of the flux (which involves B). You can have a very strong B, but if it's not changing ($\frac{\Delta \Phi}{\Delta t} = 0$), the induced e.m.f. is zero. Conversely, a small but rapidly changing B can produce a large e.m.f.
Footnote
[1] Michael Faraday: A British scientist (1791-1867) who made foundational contributions to electromagnetism and electrochemistry.
[2] Faraday's Law: The principle that a changing magnetic field induces an electromotive force in a circuit.
[3] Electromotive Force (e.m.f.): The electrical energy produced per unit charge, measured in volts (V). It is the voltage generated by a source like a battery or generator.
[4] Magnetic Flux ($\Phi$): A measure of the total magnetic field passing through a given area, calculated as $\Phi = B A \cos(\theta)$.
[5] Lenz's Law: The principle that the direction of an induced current is such that it will oppose the change in magnetic flux that produced it.
[6] Alternating Current (AC): An electric current that periodically reverses direction, as opposed to Direct Current (DC) which flows in one direction only.
