Alternating Voltage: The Pulse of Modern Power
What is Alternating Voltage?
Imagine you are pushing a child on a swing. You push forward, then you pull back, then push forward again. The swing moves away from you and then back towards you in a repeating cycle. Alternating Voltage works in a very similar way. Instead of a steady push of electricity in one direction, like a battery provides, AC voltage constantly changes its "push" or polarity. This means the positive and negative terminals swap places repeatedly over time.

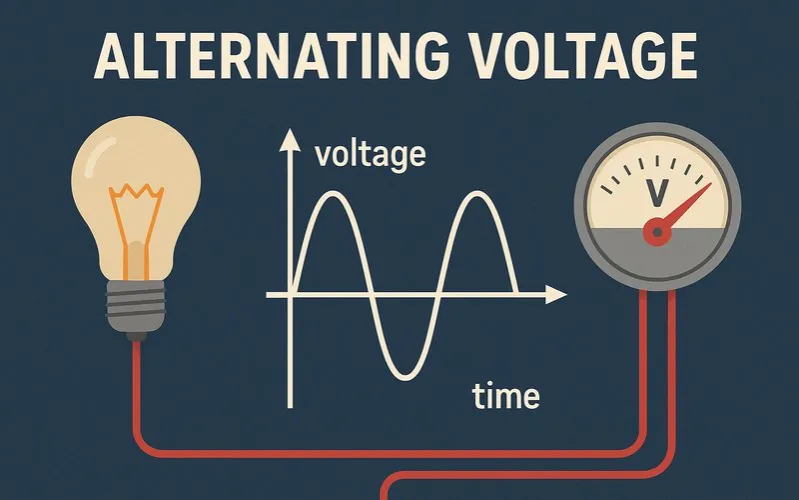

The most common and useful type of alternating voltage is the sinusoidal waveform. If you were to draw a graph of its voltage over time, it would create a smooth, repeating wave that looks like a rolling hill followed by a valley. This pattern is described by the mathematical sine function, hence the name.
The instantaneous voltage (V) at any time (t) is given by: $ V = V_{max} \times \sin(2 \pi f t) $
Where:
• $ V_{max} $ is the peak voltage (the highest voltage reached).
• $ f $ is the frequency (how many cycles occur per second).
• $ t $ is the time in seconds.
• $ \pi $ is the mathematical constant Pi (approximately 3.14159).
How is Alternating Voltage Created?
Alternating voltage is primarily generated in power plants using a device called an alternator or AC generator. The core principle is electromagnetic induction[2], discovered by Michael Faraday. Here's a simple way to understand it:
Think of a magnet and a loop of wire. If you move the magnet back and forth through the loop, you "induce" a voltage in the wire. As the magnet moves in one direction, the voltage pushes current one way. When you pull the magnet back, the voltage reverses and pushes current the opposite way. In a real generator, powerful electromagnets are spun rapidly inside a massive coil of copper wire. This continuous rotation naturally creates a sinusoidal alternating voltage.
Key Characteristics of an AC Waveform
To fully describe an alternating voltage, we use several key terms. These help us measure, compare, and use AC power effectively.
| Term | Symbol | Definition | Example (U.S. Household) |
|---|---|---|---|
| Cycle | - | One complete set of positive and negative values. | Going from 0V to +170V, back to 0V, to -170V, and back to 0V. |
| Frequency | $ f $ | The number of cycles completed in one second, measured in Hertz (Hz). | 60 Hz (60 cycles every second). |
| Period | $ T $ | The time taken to complete one cycle. $ T = 1 / f $. | $ 1 / 60 = 0.0167 $ seconds (or 16.7 milliseconds). |
| Peak Voltage | $ V_{max} $ or $ V_p $ | The maximum value of the voltage, measured from zero. | About 170 V for a 120 V outlet. |
| Root Mean Square (RMS) Voltage | $ V_{rms} $ | The effective or equivalent DC voltage that would produce the same average power. $ V_{rms} = V_{max} / \sqrt{2} $. | $ 170 / \sqrt{2} \approx 120 $ V (This is the value we refer to). |
AC vs. DC: The Current War
In the early days of electricity, a famous "War of the Currents" took place between Thomas Edison, who championed Direct Current (DC), and Nikola Tesla, who advocated for Alternating Current (AC). AC ultimately won for one primary reason: efficient long-distance transmission.
When electricity travels through wires, it loses power as heat. This power loss is proportional to the square of the current ($ P_{loss} = I^2 R $). AC voltage can be easily increased to very high levels (like 345,000 V) using a transformer[3]. High voltage means low current for the same amount of power, which dramatically reduces power loss over hundreds of miles. Near homes, the voltage is transformed back down to safer levels for use. DC voltage, in Edison's time, could not be easily transformed, making it impractical for a national power grid.
Seeing AC in Action: A Simple Oscilloscope Demo
Let's look at a practical example. If you were to connect a standard household outlet (through a proper adapter!) to an instrument called an oscilloscope, you would see a sinusoidal wave dancing across the screen.
• The waveform would be the classic sine wave shape.
• The amplitude (peak voltage) would measure about 170 volts.
• The frequency would be 60 Hz in the United States, meaning the wave repeats itself 60 times every single second. In many other parts of the world, like Europe, the standard is 50 Hz.
This visual demonstration clearly shows the continuous back-and-forth nature of alternating voltage, which is hidden from us when we simply plug in a device.
Common Mistakes and Important Questions
Why do we say a wall outlet is "120 Volts" when the peak voltage is 170 Volts?
Can you get shocked by AC and DC equally?
Do all electronic devices use AC power directly?
Alternating Voltage is far more than just a scientific curiosity; it is the engine of our modern electrical infrastructure. Its ability to be generated efficiently, transformed to high voltages for low-loss transmission across continents, and then stepped down for safe consumption in our homes is a triumph of engineering. From the sinusoidal wave generated by spinning turbines to the 60 Hz hum of a transformer on a utility pole, AC power is the invisible, rhythmic pulse that powers our daily lives. Understanding its basic principles allows us to appreciate the incredible system that brings light, heat, and connectivity to the world.
Footnote
[1] DC (Direct Current): An electric current that flows in a constant direction, unlike alternating current (AC). The voltage level may also be constant or vary, but the direction of flow does not reverse. Common sources are batteries and solar cells.
[2] Electromagnetic Induction: The process of generating an electromotive force (voltage) across an electrical conductor by changing the magnetic field around it.
[3] Transformer: A passive electrical device that transfers electrical energy from one circuit to another through electromagnetic induction. It is used to increase (step-up) or decrease (step-down) AC voltages.
