Rectifier: The AC to DC Power Converter
The Basics: AC, DC, and Diodes
To understand a rectifier, you first need to know about the two types of electrical current it works with.
Alternating Current (AC): Imagine a wave at the beach, constantly flowing back and forth. AC electricity behaves similarly. The electrons rapidly change direction, moving forward and then backward. This is the type of electricity generated by power plants and delivered to your home. It's efficient for sending power over long distances. If you were to graph it, it would look like a smooth, continuous wave, often a sine wave.
Direct Current (DC): Now, imagine a river flowing steadily in one direction. DC electricity is like that. The electrons flow in a single, constant direction from the negative terminal to the positive terminal of a power source, like a battery. This stable, unwavering flow is what delicate electronic circuits inside your devices need. Its graph is a flat, straight line.
The key component that makes rectification possible is the diode. A diode is a simple semiconductor device that acts like a one-way street for electricity. It has very low resistance, allowing current to flow easily in one direction (forward bias), but very high resistance, blocking current from flowing in the opposite direction (reverse bias). This property is the heart of all rectifier circuits.

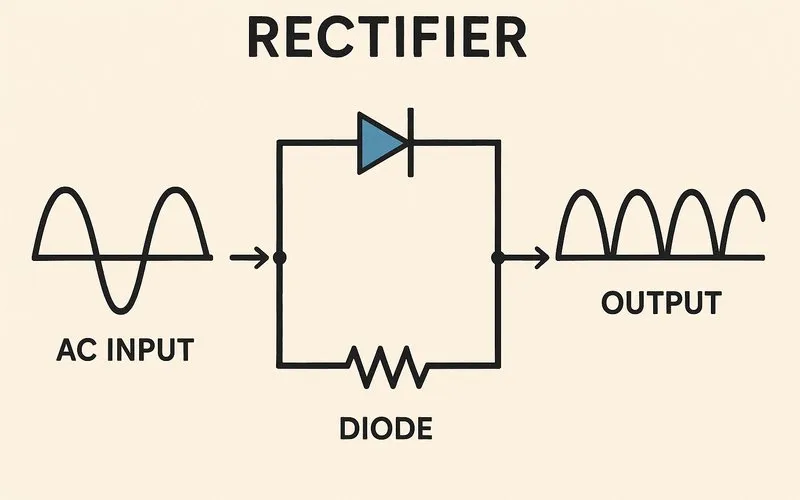

How a Simple Half-Wave Rectifier Works
The most basic type of rectifier is the half-wave rectifier. It uses a single diode. Let's trace its operation step-by-step using a standard AC sine wave input.
1. Positive Half-Cycle: When the AC input is positive, the diode is forward-biased. It acts like a closed switch, allowing this positive half of the wave to pass through to the output.
2. Negative Half-Cycle: When the AC input becomes negative, the diode becomes reverse-biased. It acts like an open switch, completely blocking the negative half of the wave.
The result is a "pulsating" DC output. It's always positive (or always negative, depending on the diode's direction), but it's not smooth; it has gaps where the negative cycles were removed.
While simple, the half-wave rectifier is inefficient because it ignores half of the input AC power. The output is choppy and not very useful for powering sensitive electronics on its own.
Full-Wave Rectification: A Better Solution
To use both halves of the AC wave, we use a full-wave rectifier. The most common circuit for this is the bridge rectifier, which uses four diodes arranged in a special bridge pattern.
| AC Input Cycle | Conducting Diodes | Current Path & Result |
|---|---|---|
| Positive Half-Cycle | D1 and D2 | Current flows through D1, through the load, and back through D2. The output is positive. |
| Negative Half-Cycle | D3 and D4 | Current flows through D3, through the load (in the SAME direction), and back through D4. The output is still positive. |
This clever arrangement ensures that no matter which direction the AC input is flowing, the current through the load (your device) is always in the same direction. The output is a series of positive pulses with no gaps, which is a much more efficient and useful form of pulsating DC.
Smoothing the Waves: From Pulsating to Pure DC
The output from a bridge rectifier is still pulsating. To get the smooth, steady DC that electronics crave, we need to "fill in the valleys" between the pulses. This is done by adding a filter circuit, typically a large capacitor placed across the output.
How the Capacitor Works:
- When the rectified voltage is at its peak, the capacitor charges up quickly, like a small battery storing energy.
- When the rectified voltage drops between pulses, the capacitor discharges its stored energy, supplying power to the load.
This charge-discharge cycle dramatically reduces the "ripple" in the voltage, making it almost a flat, straight line. The larger the capacitor, the better it is at smoothing out the ripples. For an even cleaner DC output, a voltage regulator IC1 is often used after the filter to maintain a constant voltage level regardless of changes in the load or input.
Rectifiers in Action: Powering Your World
Rectifiers are everywhere! You interact with them daily, often without knowing it.
Example 1: The Phone Charger. The bulky part of your phone charger (the "wall wart") is essentially a sophisticated rectifier. It takes 120V or 240V AC from your wall outlet, steps it down to a lower AC voltage using a transformer, rectifies it to DC using a bridge rectifier, filters it with a capacitor, and finally regulates it to a precise 5V DC needed to charge your phone's battery safely.
Example 2: A Lemon Battery. While a simple lemon battery produces DC naturally, you can create a fun science project by combining it with a small motor designed for AC. If you connect the motor directly, it might not work well. But if you build a small bridge rectifier with four diodes between the lemon battery and the motor, you demonstrate the principle of ensuring a one-way current flow, making the motor run more consistently.
Example 3: Car Alternators. Your car's alternator generates AC electricity. A built-in rectifier (usually a three-phase bridge rectifier) immediately converts this AC to DC to recharge the car battery and power all the DC electrical systems in the vehicle, like the lights, radio, and onboard computer.
Comparing Different Rectifier Types
Different rectifier circuits are used for different jobs, depending on the need for efficiency, cost, and smoothness of the output.
| Type | Number of Diodes | Efficiency | Output | Common Uses |
|---|---|---|---|---|
| Half-Wave | 1 | Low (40.6%) | Pulsating, with gaps | Simple signal demodulation, low-power circuits |
| Full-Wave Center-Tapped | 2 | High (81.2%) | Pulsating, no gaps | Power supplies requiring a center-tapped transformer |
| Full-Wave Bridge | 4 | High (81.2%) | Pulsating, no gaps | Most common; used in almost all AC/DC adapters and power supplies |
Common Mistakes and Important Questions
No, a basic rectifier circuit's main job is to change the current from AC to DC, not to change the voltage level. However, in practice, rectifiers are almost always used with a transformer first. The transformer steps the high AC voltage from the wall down to a lower AC voltage, and then the rectifier converts that lower AC voltage to DC.
No, a simple rectifier made of diodes cannot convert DC back to AC. That process requires a different and more complex device called an inverter. An inverter uses electronic switches (like transistors) to rapidly turn DC on and off in a specific pattern to create an AC waveform.
The most common mistake is connecting the diodes in the bridge rectifier incorrectly. If even one diode is placed backwards, it can short-circuit the power supply and prevent it from working, or even damage the components. Always double-check the direction of the diodes (marked by a band on one end) against the circuit diagram.
The rectifier is a brilliant yet simple solution to a fundamental problem in electronics: how to power our DC world with AC electricity. From the basic one-diode half-wave rectifier to the efficient four-diode bridge rectifier, these circuits form the foundation of every power adapter and internal power supply we use. By understanding how diodes act as one-way valves and how capacitors smooth the resulting pulses, we can appreciate the hidden engineering that goes into making our modern, portable electronic lifestyle possible. The next time you plug in your phone, remember the tiny rectifier working hard inside the charger to deliver the perfect DC power.
Footnote
1 IC: Integrated Circuit. A tiny chip that can contain thousands to billions of transistors and other electronic components. A voltage regulator IC is a special type of IC designed to maintain a constant output voltage.
