Threshold Frequency: The Photoelectric Effect's Gatekeeper
What is the Photoelectric Effect?
Imagine you are shining a light on a metal surface, and surprisingly, the metal starts to emit electrons. This phenomenon is known as the photoelectric effect. It was first observed by Heinrich Hertz in 1887, but it was Albert Einstein who, in 1905, provided the correct explanation that would later earn him the Nobel Prize. Before Einstein, scientists thought light was purely a wave. However, the photoelectric effect presented puzzles that wave theory couldn't solve. For instance, if you use very intense red light (low frequency), no electrons are emitted, no matter how bright the light is. But if you use even a very dim blue light (high frequency), electrons are ejected immediately. This was baffling!
Einstein's Revolutionary Idea: Photons
Einstein proposed that light is not just a wave but also consists of tiny, particle-like packets of energy called photons. The energy of a single photon is directly proportional to its frequency. This relationship is given by a simple, yet powerful, equation:
Where:
$ E $ is the energy of a single photon (in Joules, J).
$ h $ is Planck's constant, $ 6.626 \times 10^{-34} $ Jâ‹…s.
$ f $ is the frequency of the light (in Hertz, Hz).
This idea was a cornerstone of quantum theory. It meant that when light hits a metal, it's like a barrage of tiny energy bullets (photons) striking the surface. Each photon can interact with a single electron.

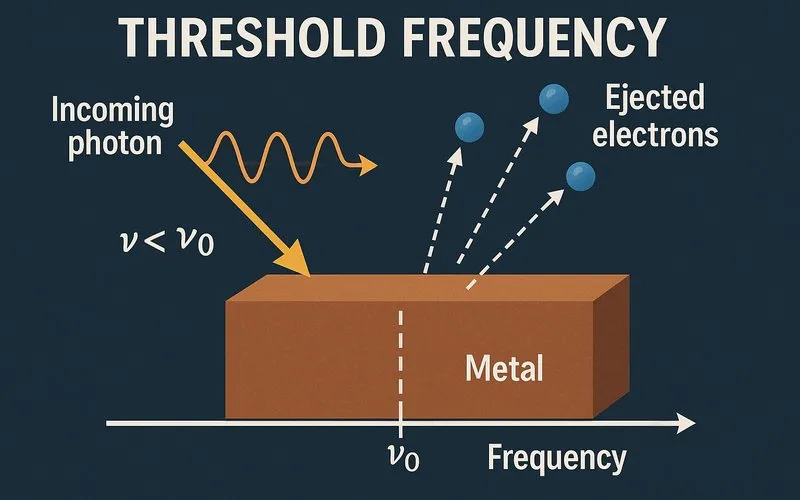

Defining the Threshold Frequency
Electrons are bound to the metal atoms and need a minimum amount of energy to be ripped away. This minimum energy is called the work function, symbolized by the Greek letter phi, $ \phi $. The threshold frequency, $ f_0 $, is the minimum frequency a photon must have for its energy to be equal to this work function. In other words, it's the "gatekeeper" frequency.
This can be rearranged to: $ f_0 = \frac{\phi}{h} $
If the frequency of the incoming light is less than $ f_0 $, no electrons will be emitted, regardless of the light's intensity (brightness). The photon's energy is simply too low to do the job. If the frequency is equal to or greater than $ f_0 $, then the photoelectric effect will occur.
The Photoelectric Equation and Kinetic Energy
What happens when the photon's frequency is higher than the threshold frequency? The photon has more energy than the minimum required. This extra energy doesn't just disappear; it is converted into the kinetic energy (energy of motion) of the ejected electron. The full photoelectric equation describes this:
Where:
$ hf $ is the energy of the incoming photon.
$ \phi $ is the work function of the metal.
$ E_k $ is the maximum kinetic energy of the ejected electron.
So, $ E_k = hf - \phi $. This means the faster the ejected electron moves, the higher the frequency of the light used above the threshold. Increasing the intensity (brightness) of the light at a fixed frequency above the threshold doesn't make the individual electrons come out faster; it just increases the number of electrons ejected per second.
Comparing Different Metals
Different metals have different atomic structures, meaning their electrons are bound with different strengths. Consequently, each metal has its own unique work function and, therefore, its own threshold frequency. The table below shows examples for some common metals.
| Metal | Work Function ($ \phi $) in eV | Threshold Frequency ($ f_0 $) in $ \times 10^{14} $ Hz | Corresponding Color Region |
|---|---|---|---|
| Cesium (Cs) | 1.95 eV | 4.7 | Infrared / Red |
| Sodium (Na) | 2.28 eV | 5.5 | Green |
| Zinc (Zn) | 4.3 eV | 10.4 | Ultraviolet |
| Platinum (Pt) | 6.35 eV | 15.3 | Far Ultraviolet |
As you can see, cesium has a very low work function, so even low-frequency infrared or red light can cause it to emit electrons. Platinum, on the other hand, requires high-frequency ultraviolet light. This is why metals like cesium and sodium are used in photoelectric cells for detecting light, as they are sensitive to visible light.
Practical Applications in Everyday Technology
The principles of the photoelectric effect and threshold frequency are not just abstract ideas; they are the working heart of many technologies we use every day.
1. Solar Panels: Solar cells are essentially large-scale photoelectric devices. Photons from sunlight strike the semiconductor material in the panel. If a photon's energy is above the material's "threshold frequency" (more accurately, its band gap), it knocks an electron loose, creating an electric current. This is how sunlight is directly converted into electricity.
2. Digital Camera Sensors (CCD/CMOS): The image sensor in your phone's camera is made of millions of tiny light-sensitive pixels. Each pixel acts like a tiny metal surface. When light hits a pixel, photons eject electrons via the photoelectric effect. The camera measures the number of ejected electrons, which tells it how intense the light was at that point, allowing it to build a digital image. The sensor is designed to be sensitive to the threshold frequencies of visible light.
3. Automatic Doors and Motion Sensors: Many security lights and automatic doors use a beam of infrared light. A photoelectric cell sits on the other side, constantly generating a current from the IR light. If someone walks through and interrupts the beam, the current stops, triggering the door to open or the alarm to sound. The material in the sensor is chosen to have a threshold frequency in the infrared range.
4. Photocopiers and Laser Printers: These machines use a static electric charge on a drum. Light (often from a laser) is shone onto the drum in the pattern of the image you want to copy or print. Where the light hits, it causes the photoelectric effect, removing the static charge from those areas. Toner (ink powder) then only sticks to the still-charged areas and is transferred to paper.
Common Mistakes and Important Questions
Q: Does increasing the intensity (brightness) of light change the threshold frequency?
A: No, absolutely not. The threshold frequency $ f_0 $ is a fixed property of the metal material itself. It depends only on the work function $ \phi $. Making the light brighter only increases the number of photons per second, not the energy of each individual photon. If the frequency is below the threshold, even the brightest light will not eject a single electron.
Q: What is the difference between threshold frequency and stopping potential?
A: The threshold frequency $ f_0 $ is the minimum frequency needed to start the photoelectric effect. The stopping potential $ V_s $ is a related but different concept. It is the minimum voltage needed to stop the most energetic ejected electrons from reaching a collector, thus reducing the current to zero. It is a measure of the maximum kinetic energy of the electrons: $ E_k = eV_s $, where $ e $ is the electron's charge. Both concepts are used to measure the work function of a metal.
Q: Why was the wave theory of light unable to explain the photoelectric effect?
A: According to classical wave theory, the energy of a wave is proportional to its intensity (amplitude). This theory predicted that:
1. A very bright light of any color should eventually eject electrons, given enough time for the energy to accumulate.
2. A brighter light should give electrons more kinetic energy.
However, experiments showed neither was true. Electrons were ejected instantly only if the light frequency was above a threshold, and while brighter light ejected more electrons, it did not increase their speed. Only Einstein's photon model, with energy tied to frequency, could explain these results.
Conclusion
The concept of threshold frequency is a brilliant demonstration of how a simple idea can shatter old paradigms and pave the way for new technologies. It moved physics from the continuous world of waves to the granular world of quanta. By understanding that light delivers its energy in discrete packets and that a specific minimum frequency is required to liberate an electron, we unlocked the secrets of the photoelectric effect. This knowledge is not just a chapter in a physics textbook; it is the fundamental principle behind the solar panels helping to power our world and the digital cameras capturing our memories. The humble threshold frequency truly is the gatekeeper to a deeper understanding of light and matter.
Footnote
1 Photoelectric Effect: The emission of electrons from a material when it is exposed to light (electromagnetic radiation).
2 Work Function ($ \phi $): The minimum energy required to remove an electron from the surface of a solid material (a metal) to a point just outside its surface.
3 Photon: A discrete packet or quantum of electromagnetic energy, behaving as both a particle and a wave.
4 Planck's Constant ($ h $): A fundamental physical constant that relates the energy of a photon to its frequency. $ h = 6.626 \times 10^{-34} $ Joule-seconds.
5 Kinetic Energy ($ E_k $): The energy possessed by an object due to its motion.
6 Hertz (Hz): The unit of frequency, defined as one cycle per second.
