Atomic Structure

Atomic Structure: The Blueprint of Matter

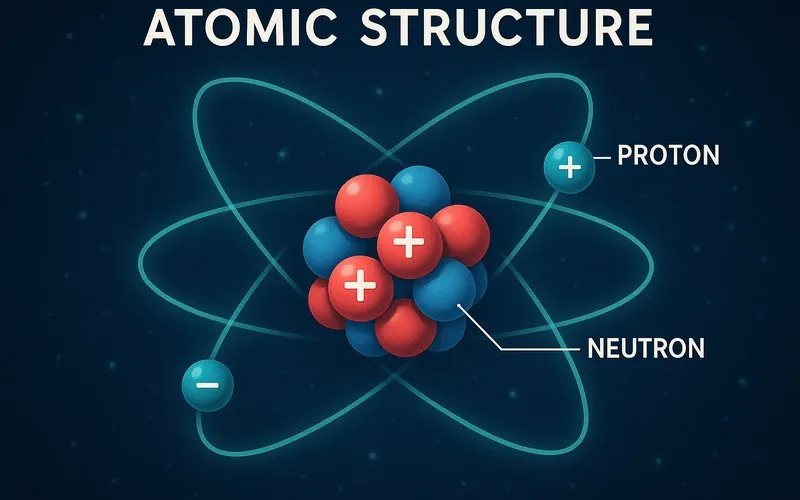

The Fundamental Particles of an Atom

Imagine you have a piece of aluminum foil. If you could cut it in half again and again, you would eventually get to the smallest possible piece of aluminum that still has all the properties of aluminum. This smallest unit is an atom. Every atom is made up of three even smaller, fundamental particles. These are the building blocks for all matter, from the air we breathe to the stars in the sky.

Protons and neutrons are tightly packed together in the center of the atom, a region called the nucleus. Despite being the center, the nucleus is incredibly small compared to the overall size of the atom. If an atom were the size of a football stadium, the nucleus would be about the size of a pea on the center spot! The protons have a positive electrical charge, while neutrons have no charge (they are neutral).

Electrons are much smaller and lighter than protons and neutrons. They whiz around the nucleus at very high speeds in a region often called the electron cloud. They have a negative electrical charge. The attraction between the positively charged protons and the negatively charged electrons is what holds the atom together.

Atomic Number and Mass Number

What makes one element different from another? The answer lies in the number of protons in its atoms. This is known as the atomic number, represented by the symbol Z.

Atomic Number (Z) = Number of Protons

For instance, every single atom with 6 protons is a carbon atom. Every atom with 1 proton is a hydrogen atom, and every atom with 92 protons is a uranium atom. The atomic number is the element's fingerprint.

The mass number, represented by the symbol A, tells us the total number of protons and neutrons in the nucleus of an atom.

Mass Number (A) = Number of Protons + Number of Neutrons

Since electrons have almost no mass, the mass of an atom is concentrated in its nucleus. We can easily find the number of neutrons in an atom by rearranging this formula:

Number of Neutrons = Mass Number (A) - Atomic Number (Z)

Scientists represent an element with its atomic and mass number using a standard notation. For example, a carbon atom with 6 protons and 6 neutrons has a mass number of 12. It is written as:

$^{12}_{6}C$

Where the mass number (12) is the superscript, and the atomic number (6) is the subscript.

The Evolution of the Atomic Model

Our understanding of the atom didn't appear overnight. It has evolved over centuries as scientists conducted new experiments and made new discoveries.

John Dalton's Solid Sphere Model (1803): Dalton proposed that all matter is made of tiny, indivisible spheres called atoms. He thought atoms of a given element were identical and different from atoms of other elements. While we now know atoms are divisible, his theory was a crucial first step.

J.J. Thomson's "Plum Pudding" Model (1897): Thomson discovered the electron, proving atoms were made of even smaller particles. He proposed a model where the atom was a sphere of positive charge with negatively charged electrons embedded within it, like plums in a pudding.

Ernest Rutherford's Nuclear Model (1911): Rutherford's famous gold foil experiment involved firing alpha particles (positively charged) at a thin sheet of gold. He expected them to pass straight through, but some bounced right back! This surprising result led him to conclude that the atom must have a tiny, dense, positively charged center—the nucleus—where most of its mass is concentrated. The electrons were thought to orbit this nucleus.

Niels Bohr's Planetary Model (1913): Bohr built on Rutherford's model by proposing that electrons orbit the nucleus in specific, fixed paths or shells, much like planets orbiting the sun. Each shell has a definite energy level. This model successfully explained the light emitted by simple atoms like hydrogen.

The Modern Quantum Mechanical Model (1920s-present): Today's model is more complex and mathematical. It doesn't define an exact path for an electron. Instead, it describes orbitals, which are three-dimensional regions around the nucleus where there is a high probability of finding an electron. Think of it not as a neat orbit, but as a "cloud" of possible locations.

Electron Arrangement and the Periodic Table

The way electrons are arranged in an atom determines its chemical properties and how it will react with other atoms. Electrons occupy energy levels, often called shells, around the nucleus.

• The first shell (closest to the nucleus) can hold up to 2 electrons.
• The second shell can hold up to 8 electrons.
• The third shell can hold up to 8 electrons (for the first 20 elements).

Let's look at some examples:

• Hydrogen (H, Z=1): Has 1 electron. Its electron configuration is 1 electron in the first shell.
• Carbon (C, Z=6): Has 6 electrons. Its configuration is 2 in the first shell and 4 in the second shell.
• Neon (Ne, Z=10): Has 10 electrons. Its configuration is 2 in the first shell and 8 in the second shell. This is a stable, full outer shell, making neon an inert gas that rarely reacts.

The periodic table is a masterful chart organized based on these electron configurations. Elements in the same vertical column (group) have the same number of electrons in their outer shell, which is why they have similar chemical properties.

Isotopes: When Atoms of the Same Element Vary

Not all atoms of the same element are identical. While they must all have the same number of protons (the same atomic number), they can have different numbers of neutrons. These different forms of the same element are called isotopes.

For example, carbon has three common isotopes:

• Carbon-12: 6 protons and 6 neutrons (most common).
• Carbon-13: 6 protons and 7 neutrons.
• Carbon-14: 6 protons and 8 neutrons (radioactive, used for carbon dating).

Isotopes have the same chemical properties because chemistry is governed by electrons, and isotopes have the same number of electrons. However, they have different masses. The atomic mass you see on the periodic table is a weighted average of the masses of all naturally occurring isotopes of that element.

Atoms in Action: From Salt to Sunlight

Atomic structure is not just a theoretical concept; it explains countless phenomena in our daily lives and the universe.

Example 1: Table Salt (Sodium Chloride). A sodium (Na) atom has 11 electrons (2,8,1). It has one lonely electron in its outer shell. A chlorine (Cl) atom has 17 electrons (2,8,7) and needs one more electron to fill its outer shell. When they meet, sodium readily donates its outer electron to chlorine. This transfer makes sodium a positive ion (Na+) and chlorine a negative ion (Cl-). The opposite charges attract, forming an ionic bond and creating the crystal structure of table salt, NaCl.

Example 2: Light from the Sun and Neon Signs. When an electron gains energy (from heat or electricity), it can "jump" to a higher energy level farther from the nucleus. This excited state is unstable, so the electron soon falls back to its original level. When it does, it releases the extra energy as a particle of light called a photon. The specific color of the light depends on how big the electron's "jump" was. This is how the sun produces light and how neon signs glow with specific colors.

Common Mistakes and Important Questions

Footnote

^[1] a.m.u. (Atomic Mass Unit): A standard unit of mass used for atomic and molecular weights. It is defined as one-twelfth the mass of a carbon-12 atom.

^[2] Nucleus (pl. Nuclei): The small, dense, positively charged center of an atom, containing protons and neutrons.

^[3] Ion: An atom or molecule that has a net electrical charge because it has gained or lost one or more electrons.

^[4] Orbital: A region in an atom where there is a high probability of finding an electron. It is a concept from the quantum mechanical model.
