Cathode Rays: Unveiling the Invisible Beam
What Exactly is a Cathode Ray?

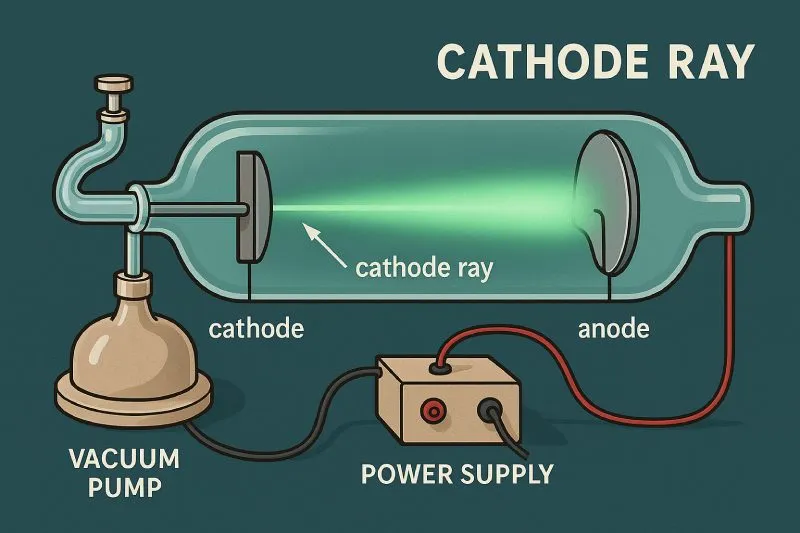

Imagine you could see inside a sealed glass tube with almost all the air sucked out, creating a near-perfect vacuum. If you then connect a very high voltage, say 10,000 volts, across two metal electrodes inside this tube, something fascinating happens. A mysterious green glow appears on the glass wall opposite the negative electrode, called the cathode. This glow is caused by an invisible beam shooting from the cathode—this is the cathode ray.
For a long time, scientists debated what these rays were made of. Some thought they were a new type of wave, like light. However, a series of brilliant experiments in the late 1800s proved that cathode rays are actually a beam of tiny, negatively charged particles. We now know these particles as electrons.
The Crucial Role of the Vacuum Tube
The vacuum is not just a helpful condition; it is absolutely essential for producing a cathode ray. To understand why, let's think about air. Air is made of molecules that are constantly moving and colliding. If the tube were filled with air, the electrons emitted from the cathode would immediately collide with these air molecules. These collisions would slow the electrons down, scatter them, and prevent a focused beam from forming. It would be like trying to run a straight, fast race through a dense, crowded forest.
By removing almost all the air, we create a clear path for the electrons. They can travel from the cathode to the other end of the tube with very few obstacles, allowing them to gain tremendous speed and form a defined beam. The higher the vacuum (the less air remaining), the better and longer the cathode ray becomes.
Landmark Experiments that Shaped Our Understanding
The true nature of cathode rays was uncovered through clever and now-famous experiments. These investigations moved science from mystery to certainty.
J.J. Thomson's Experiment: Discovering the Electron
In 1897, the British physicist J.J. Thomson conducted the most definitive experiment. He used a specially designed cathode ray tube with a phosphor-coated screen and both electric and magnetic fields applied to the path of the rays.
Thomson observed that the cathode ray beam was deflected (bent) by the electric field in a direction that proved it was made of negatively charged particles. He then used a magnetic field to bend the beam in the opposite direction. By carefully balancing the electric and magnetic forces, he was able to calculate the ratio of the particle's charge to its mass (known as the $e/m$ ratio). This ratio was the same regardless of the metal used for the cathode or the type of gas originally in the tube, proving that these particles were a fundamental component of all atoms. Thomson had discovered the first subatomic particle: the electron.
| Property | Description | Simple Demonstration |
|---|---|---|
| Travel in Straight Lines | Cathode rays cast sharp shadows of objects placed in their path. | Placing a metal cross in the tube creates a sharp shadow on the glowing end, like a shadow puppet. |
| Possess Energy | They can heat up objects they strike and cause certain materials to glow (fluoresce). | The point where the rays hit the glass glows brightly (fluorescence). A metal target can become hot. |
| Deflected by Electric and Magnetic Fields | The beam bends when it passes near a magnet or between electrically charged plates. | A magnet brought near the tube will make the green spot on the screen move. This is the principle behind old TV speakers interfering with the picture. |
| Composed of Negatively Charged Particles | The direction of deflection in an electric field proves the negative charge. | The beam is always attracted towards the positively charged plate, just like a balloon rubbed on your hair is attracted to a wall. |
From Lab Curiosity to Real-World Revolution
The discovery of cathode rays was not just a scientific curiosity; it sparked a technological revolution. The ability to control a beam of electrons became the foundation for many devices that defined the 20th century.
The Cathode Ray Tube (CRT)
The most famous application is the Cathode Ray Tube or CRT[1]. This is the bulky, deep television and computer monitor that was standard for decades. In a CRT television:
- An electron gun at the back of the tube acts as the cathode, shooting a focused beam of electrons.
- Electromagnetic coils steer the beam back and forth in a precise pattern, line by line, across the entire screen.
- The inside of the screen is coated with tiny dots of phosphor[2] that glow red, green, or blue when struck by the electrons.
- By varying the intensity of the electron beam and rapidly scanning it, a full-color picture is painted on the screen, faster than your eye can see.
The Oscilloscope
Before CRTs were used for entertainment, they were vital scientific tools. An oscilloscope is a device that uses a cathode ray tube to display electrical signals as a graph. Engineers use it to "see" changing voltages, like the waveform of sound or the pulses in a computer chip. The electron beam moves up and down in response to the voltage being measured, while it sweeps horizontally at a steady rate, drawing the signal on the screen.
X-Ray Machines
The discovery of X-rays by Wilhelm Röntgen in 1895 happened while he was experimenting with a cathode ray tube. He noticed that a fluorescent screen in his lab would glow even when it was shielded from the visible cathode rays. He realized the tube was emitting a new, highly penetrating kind of ray, which he called X-rays. We now know that X-rays are produced when high-energy electrons from the cathode ray smash into a metal target inside the tube, a process that is at the heart of every medical and security X-ray machine.
Common Mistakes and Important Questions
Are cathode rays the same as light?
No, this is a common misconception. While both can cause fluorescence and travel in straight lines, they are fundamentally different. Light is an electromagnetic wave and has no electric charge. Cathode rays are a stream of charged particles (electrons). This is why cathode rays can be deflected by a magnet, but a beam of light cannot.
Why is the cathode negative? I thought it was where current flows out.
This confusion comes from two definitions of "current." In the context of cathode rays, we are looking at the flow of electrons. Electrons are negatively charged, so they are repelled from the negative terminal (the cathode) and attracted to the positive terminal (the anode). However, by historical convention, electric current is defined as flowing from positive to negative. So, inside a cathode ray tube, electrons physically flow from cathode to anode, while conventional "current" is considered to flow from anode to cathode.
Are cathode rays still used today?
While you won't find a CRT TV in a new electronics store, the principle of the cathode ray is still very much in use. Old-fashioned TVs and monitors are the most recognizable examples, but oscilloscopes with CRT displays are still in some labs. More importantly, the science behind cathode rays is the foundation for modern devices. Electron microscopes use a focused beam of electrons, just like a cathode ray, to see incredibly small objects, and the picture tubes in old TVs were the direct ancestors of today's flat-screen displays.
The story of the cathode ray is a perfect example of how fundamental scientific research leads to world-changing technology. What began as a strange green glow in a vacuum tube led to the discovery of the electron, the first subatomic particle. This knowledge unlocked our understanding of electricity and the atom itself. The practical applications—from the televisions that informed and entertained generations to the medical X-rays that save lives—show how a beam of invisible particles can illuminate our world in countless ways. Even as specific technologies like the CRT fade into history, the principles of the cathode ray continue to underpin modern science and engineering.
Footnote
[1] CRT: Cathode Ray Tube. An evacuated glass tube that uses one or more electron guns and a phosphorescent screen to display images.
[2] Phosphor: A substance that emits light (luminesces) when struck by radiation such as electrons. In a CRT, different phosphors glow red, green, or blue to create a color image.
