The Half-Cell: A Fundamental Building Block of Electrochemistry
The Basic Components of a Half-Cell

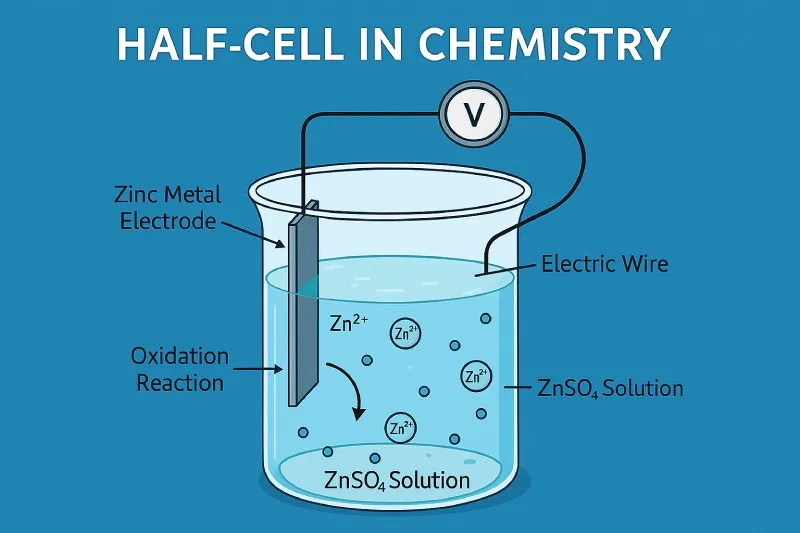

At its core, a half-cell is a simple system. Imagine a piece of copper metal placed in a blue solution of copper sulfate. This is a classic example of a copper half-cell. The metal piece is called the electrode. The solution, which contains Cu2+ ions, is called the electrolyte. The electrode and its ions in the electrolyte are in constant communication, creating a dynamic equilibrium.
Two primary types of reactions can happen at the interface between the electrode and the electrolyte:
- Oxidation: The metal electrode loses electrons and becomes a positive ion that enters the solution. For a zinc metal electrode, this would be: $ Zn_{(s)} \to Zn^{2+}_{(aq)} + 2e^{-} $.
- Reduction: Positive ions from the solution gain electrons and become solid metal deposited onto the electrode. For a copper ion, this would be: $ Cu^{2+}_{(aq)} + 2e^{-} \to Cu_{(s)} $.
A single half-cell cannot operate alone because electrons would quickly build up or be depleted. It must be connected to another half-cell to complete the electrical circuit, allowing electrons to flow and a sustained chemical reaction to proceed.
Common Types of Half-Cells
While the metal-metal ion half-cell is the most straightforward, there are several important varieties used in electrochemistry. The table below summarizes the most common types.
| Type of Half-Cell | Components | Example Reaction |
|---|---|---|
| Metal-Metal Ion | A metal electrode in a solution of its ions. | $ Zn_{(s)} | Zn^{2+}_{(aq)} $ |
| Gas-Ion | An inert electrode (like Platinum) in contact with a gas and its ions. | $ Pt_{(s)} | H_{2(g)} | H^{+}_{(aq)} $ (Hydrogen Half-Cell) |
| Ion-Ion (Oxidation State) | An inert electrode in a solution containing ions of the same element in different oxidation states. | $ Pt_{(s)} | Fe^{2+}_{(aq)}, Fe^{3+}_{(aq)} $ |
| Metal-Insoluble Salt | A metal coated with its insoluble salt, immersed in a solution containing a common anion. | $ Ag_{(s)} | AgCl_{(s)} | Cl^{-}_{(aq)} $ (Silver-Silver Chloride) |
Connecting Half-Cells to Make a Battery
To create a useful flow of electricity, two different half-cells must be connected. This combination is called an electrochemical cell. There are two main types: galvanic (or voltaic) cells and electrolytic cells. Galvanic cells, which are what we commonly call batteries, produce electrical energy from spontaneous chemical reactions.
Let's build a simple battery using a zinc half-cell and a copper half-cell:
- The Half-Cells: One beaker contains a zinc electrode in a ZnSO4 solution. The other beaker contains a copper electrode in a CuSO4 solution.
- The Salt Bridge: A U-shaped tube filled with a salt like potassium nitrate connects the two solutions. This bridge allows ions to flow between the half-cells to maintain electrical neutrality, completing the internal circuit.
- The Wire and Voltmeter: A metal wire connects the two electrodes, often through a device like a light bulb or a voltmeter. This completes the external circuit, allowing electrons to flow.
In this setup, the more reactive zinc undergoes oxidation: $ Zn \to Zn^{2+} + 2e^{-} $. The electrons released travel through the wire to the copper half-cell. There, the copper ions undergo reduction: $ Cu^{2+} + 2e^{-} \to Cu $. The flow of electrons through the wire is an electric current that can do work, like lighting a bulb. The zinc half-cell is called the anode (where oxidation occurs), and the copper half-cell is called the cathode (where reduction occurs).
Half-Cells in Action: From Lemon Batteries to Corrosion
The principles of half-cells are not confined to the laboratory; they are at work all around us.
The Lemon Battery: A classic school project that perfectly demonstrates a galvanic cell. You push a zinc-coated nail (a zinc half-cell) and a copper coin or wire (a copper half-cell) into a lemon. The lemon juice acts as the electrolyte, allowing ions to move. The two metals have different tendencies to lose electrons, creating a potential difference. When you connect the nail and the coin with a wire, electrons flow, and you can measure a small voltage or even power a tiny LED light!
Corrosion - The Unwanted Battery: The rusting of iron is an electrochemical process involving half-cells. Imagine a drop of water on a piece of iron. The center of the drop, with less oxygen, becomes the anode, where iron oxidizes: $ Fe \to Fe^{2+} + 2e^{-} $. The electrons travel through the metal to the edge of the drop, which has more oxygen. This area becomes the cathode, where oxygen is reduced: $ O_2 + 2H_2O + 4e^{-} \to 4OH^{-} $. The Fe2+ and OH- ions then combine to form rust, Fe(OH)2, which further oxidizes to the familiar reddish-brown Fe2O3.
Standard Hydrogen Electrode (SHE): To measure the inherent tendency of a half-cell to undergo reduction, scientists need a universal reference point. This is the role of the Standard Hydrogen Electrode[1]. It is defined as a platinum electrode in contact with 1 M H+ solution and bathed by hydrogen gas at 1 atmosphere pressure. Its electrode potential is arbitrarily defined as zero volts. By connecting any other half-cell to the SHE, we can measure its Standard Electrode Potential, which tells us how likely it is to be reduced compared to hydrogen.
Important Questions
Footnote
[1] SHE (Standard Hydrogen Electrode): A reference half-cell with a defined potential of 0 volts, against which the electrode potentials of all other half-cells are measured. It consists of a platinum electrode in a 1 M H+ solution, with hydrogen gas bubbled at 1 atm pressure.
[2] Electrode Potential (E0): The inherent tendency of a half-cell to gain electrons and be reduced. It is measured in volts (V) relative to the Standard Hydrogen Electrode. A more positive value indicates a greater tendency for reduction.
