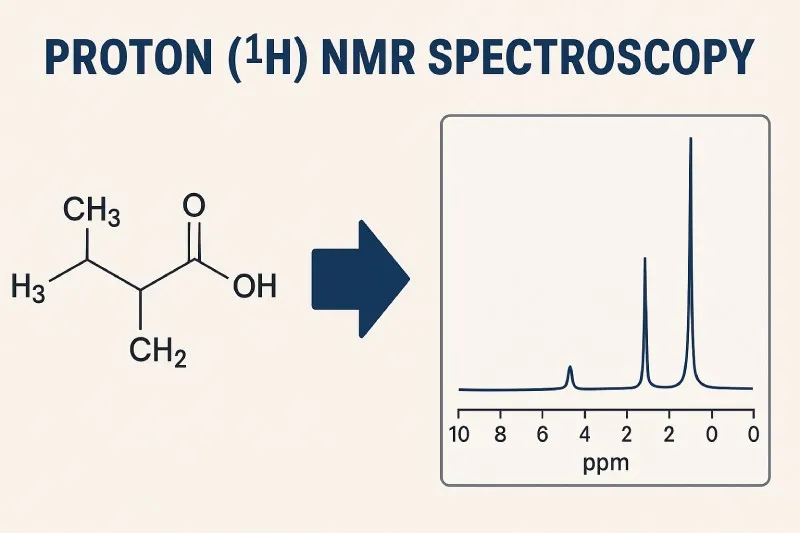

Proton NMR Spectroscopy
The Core Principle: Spinning Protons in a Magnetic Field
To understand $^1$H NMR, we first need to think about the hydrogen atom's nucleus. A hydrogen nucleus is just a single proton. This proton acts like a tiny, spinning magnet. In our everyday world, these tiny magnets are pointing in random directions.
When we place our sample inside the powerful magnet of an NMR machine, something special happens. The spinning protons align themselves either with the magnetic field (a lower energy state) or against it (a higher energy state). Most align with the field, creating a tiny net magnetism for the sample.
We then send a pulse of radio wave energy into the sample. If the radio wave's frequency is just right, protons in the lower energy state can absorb the energy and "flip" to the higher energy state. This is called resonance. After the pulse, these protons "relax" back to their original state, emitting radio wave signals as they do. The machine detects these emitted signals and processes them to create the NMR spectrum.
Decoding the Spectrum: Chemical Shift, Integration, and Splitting
The raw signal from the protons is transformed into a graph. This spectrum has a horizontal axis (measured in parts per million, or ppm) and a vertical axis for signal intensity. Three main features help us decode the molecule's structure.
1. Chemical Shift (δ): Not all hydrogen atoms in a molecule are identical. A hydrogen attached to a carbon that's also bonded to an oxygen atom (like in an alcohol) is in a different electronic environment than a hydrogen attached to a carbon in a simple chain. The electrons around the proton "shield" it slightly from the external magnetic field. The amount of shielding changes the exact radio frequency needed for resonance. This difference is called the chemical shift (δ). It's measured in ppm relative to a standard compound. By knowing the typical chemical shift ranges, we can guess what type of hydrogen we're looking at.
| Type of Proton | Example Compound | Approximate Chemical Shift (δ) in ppm |
|---|---|---|
| Alkyl (R-CH3) | Ethane (CH3CH3) | 0.9 |
| Allylic (C=C-CH3) | Propene (CH2=CHCH3) | 1.7 |
| Alcohol (R-OH) | Ethanol (CH3CH2OH) | 2-5 (varies) |
| Aromatic (Ar-H) | Benzene (C6H6) | 7.2 |
| Aldehyde (R-CHO) | Ethanal (CH3CHO) | ~9.8 |
2. Integration: The area under each signal peak is called the integral. This area is directly proportional to the number of hydrogen atoms giving that signal. If one peak has an integral value twice as large as another, it means there are twice as many hydrogens in that environment. This is crucial for counting hydrogens in different parts of the molecule.
3. Signal Splitting (Spin-Spin Coupling): This is one of the most informative and fascinating parts of $^1$H NMR. Protons on neighboring carbon atoms can "feel" each other's magnetic spin through the bonds. This interaction splits a single peak into multiple peaks, creating patterns like doublets (two peaks), triplets (three peaks), or quartets (four peaks).
The rule for this splitting is the n+1 rule. If a proton has n equivalent protons on the adjacent carbon, its NMR signal will be split into n+1 peaks. For example, in ethanol (CH3CH2OH), the CH3 group is next to a CH2 group. The CH3 protons "see" 2 protons on the neighboring carbon, so its signal is split into a triplet (2+1 = 3 peaks). The CH2 group is next to a CH3 group (3 protons), so its signal is split into a quartet (3+1 = 4 peaks).
A Step-by-Step Example: Analyzing Ethyl Acetate
Let's put it all together with a common compound: ethyl acetate. Its structure is CH3COOCH2CH3. We can break down what its $^1$H NMR spectrum would show.
- Identify Different Hydrogen Environments: There are three distinct types:
• Hydrogens A: The CH3 group attached directly to the carbonyl (C=O). 3 equivalent protons.
• Hydrogens B: The CH2 group in the ethyl part (O-CH2-CH3). 2 equivalent protons.
• Hydrogens C: The CH3 group at the end of the ethyl chain (O-CH2-CH3). 3 equivalent protons. - Predict Chemical Shifts:
• HA: Near a carbonyl, so less shielded. δ ~ 2.0 ppm.
• HB: Attached to a carbon bonded to oxygen. δ ~ 4.1 ppm.
• HC: Three bonds away from oxygen, more shielded. δ ~ 1.2 ppm. - Predict Splitting (n+1 rule):
• HA (CH3): It has no protons on the adjacent carbon (it's next to the carbonyl carbon, which has no H). So, n=0, it should be a singlet (1 peak).
• HB (CH2): It is adjacent to the CH3 group (HC). n=3, so it should be a quartet (4 peaks).
• HC (CH3): It is adjacent to the CH2 group (HB). n=2, so it should be a triplet (3 peaks). - Predict Integration: The areas under the peaks should be in the ratio of the number of protons: HA : HB : HC = 3 : 2 : 3.
So, the predicted spectrum would show three signals: a singlet, a quartet, and a triplet, with areas in a 3:2:3 ratio, at specific locations on the ppm scale. Matching this prediction to an actual spectrum confirms the molecule is ethyl acetate.
Important Questions
Q1: Why do we need such a strong magnet for NMR?
The alignment difference between protons with and against the magnetic field is very, very small. A stronger magnet makes this population difference larger, which means the signals emitted by the sample are stronger and clearer. It's like having a louder voice in a quiet room versus a noisy one—the stronger magnet gives us a better signal to "hear."
Q2: Can NMR tell the difference between two molecules that have the same formula but different structures (isomers)?
Yes, absolutely! This is one of NMR's greatest strengths. For example, the molecule with formula C2H6O could be ethanol (CH3CH2OH) or dimethyl ether (CH3OCH3). Ethanol's NMR would show three signals (a triplet, a quartet, and a broad singlet for the OH), while dimethyl ether would show only one signal (a singlet for the six identical protons). The spectra would look completely different.
Q3: Is NMR spectroscopy safe?
The NMR technique itself is non-invasive and non-destructive. It uses radio waves and magnetic fields, not harmful ionizing radiation like X-rays. The main safety concern is the extremely strong magnet, which requires careful handling of metal objects around the machine. The sample is not harmed and can often be recovered after the experiment.
Conclusion
Proton ($^1$H) NMR Spectroscopy is a window into the molecular world. By tuning into the radio signals emitted by hydrogen atoms in a magnetic field, chemists can deduce critical information: what types of hydrogens are present (chemical shift), how many of each type (integration), and what their neighbors are (spin-spin splitting). From identifying simple organic compounds in a school lab to determining the complex 3D structure of proteins and diagnosing diseases through medical MRI[2] (a related imaging technology), the principles of NMR have become indispensable in modern science. It transforms the invisible arrangement of atoms into a readable graph, proving that sometimes, to understand matter, you just have to listen to it.
Footnote
[1] NMR: Nuclear Magnetic Resonance. This is the full name for the general technique. "Proton NMR" or "$^1$H NMR" specifies that we are looking at hydrogen-1 nuclei.
[2] MRI: Magnetic Resonance Imaging. This is the medical application of NMR principles used to create detailed images of the inside of the human body. It primarily detects signals from the protons in water and fat molecules.
