Carbon-13 NMR Spectroscopy: Decoding the Molecular Backbone
The Basics: What is NMR and Why Carbon-13?
The Nuclear Magnetic Resonance Phenomenon

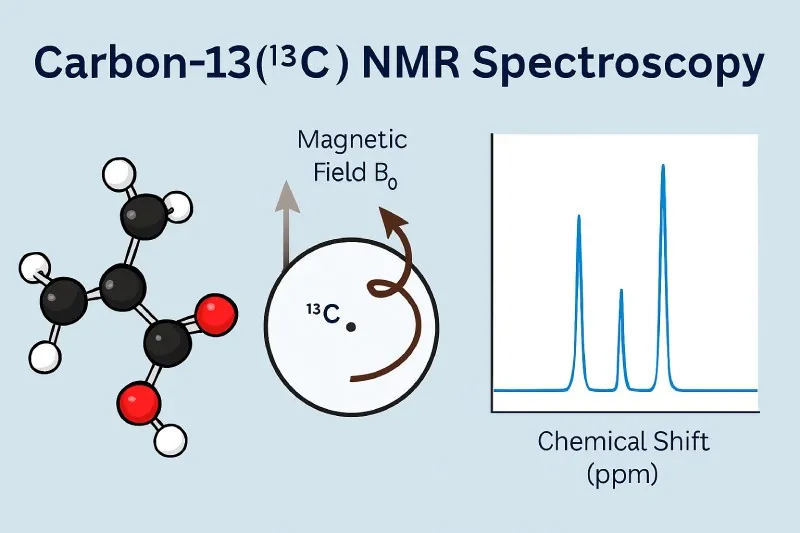

Imagine a tiny, spinning magnet inside the nucleus of an atom. NMR spectroscopy takes advantage of this. When these atomic magnets are placed in a very strong external magnetic field, they can align with or against the field. By applying a pulse of radio wave energy, we can "flip" these magnets. As they flip back to their original state, they emit radio wave signals that are unique to their environment in the molecule. This is the essence of Nuclear Magnetic Resonance[2].
For carbon NMR, we specifically look at the carbon-13 isotope. Natural carbon is mostly carbon-12 (12C), which does not act like a magnet and is invisible to NMR. Luckily, about 1.1% of carbon atoms are the carbon-13 (13C) isotope. Its nucleus has a property called "spin," which makes it behave like a tiny bar magnet and detectable by NMR instruments.
Chemical Shift: The Carbon Atom's Fingerprint
The most important piece of information from a 13C NMR spectrum is the chemical shift. This tells us the type of chemical environment a carbon atom is in. The shift is measured in parts per million (ppm) relative to a standard compound, usually tetramethylsilane (TMS).
Electrons surrounding a carbon nucleus "shield" it from the external magnetic field. The more electron density around the carbon, the higher the shielding, and the lower its chemical shift value (further to the right on the spectrum). Different functional groups[3] pull electron density away or add to it, creating characteristic chemical shift ranges.
| Type of Carbon Atom | General Formula | Chemical Shift Range (ppm) |
|---|---|---|
| Alkane (saturated) | $C - C$ | 0 - 60 |
| Alkene (double bond) | $C = C$ | 100 - 150 |
| Alkyne (triple bond) | $C \equiv C$ | 65 - 90 |
| Alcohol / Ether | $C - O$ | 50 - 90 |
| Carbonyl (e.g., in ketones) | $C = O$ | 170 - 220 |
| Aromatic (in benzene rings) | 110 - 160 |
A simple 13C NMR spectrum is usually displayed as a series of sharp peaks (or lines) on a horizontal scale from 0 to 220 ppm. The number of peaks often tells you how many different types of carbon atoms are in your molecule. Identical carbon atoms (like the two methyl groups in acetone, (CH_3)_2CO) will produce only one peak.
Understanding Signal Patterns and Splitting
In another common NMR technique (proton NMR), signals are often split into multiple peaks due to interactions between neighboring hydrogen atoms. However, in standard 13C NMR, this splitting is usually turned off by a technique called "decoupling." The result is that each unique carbon typically gives a single, sharp line. This makes the spectrum simpler to interpret initially, as you can just count the lines to know how many distinct carbon environments exist.
For example, the simple molecule ethanol (CH_3CH_2OH) has three carbon atoms, but they are in only two distinct environments: the carbon in the methyl (CH_3-) group and the carbon in the methylene (-CH_2-) group. Its 13C NMR spectrum would show two peaks.
From Spectrum to Structure: A Practical Example
Solving the Puzzle of an Unknown Compound
Let's pretend we are chemists trying to identify a clear liquid. We know its molecular formula is C_4H_8O_2. We run a 13C NMR experiment and get a spectrum with four distinct peaks at the following chemical shifts: 14 ppm, 60 ppm, 128 ppm, and 166 ppm.
We can use the table of chemical shifts as a guide:
- 14 ppm: This is in the alkane range. It's a low value, suggesting a carbon with lots of shielding, likely a terminal methyl (CH_3-) group.
- 60 ppm: This falls in the C-O range. It could be a carbon bonded to oxygen, like in an alcohol or ester.
- 128 ppm: This is a classic signal for carbons in a carbon-carbon double bond (C=C) or an aromatic ring.
- 166 ppm: This is in the carbonyl (C=O) region. The exact value suggests it might be part of an ester or carboxylic acid.
Putting these clues together with the formula, a likely candidate is an ester called methyl propanoate. Its structure is CH_3CH_2C(O)OCH_3. Let's check:
- The CH_3- of the ethyl group: ~14 ppm.
- The -CH_2- next to the carbonyl: ~30 ppm? Wait, we don't have a peak at 30 ppm. This is a good check! Our guess might be wrong. Maybe it's ethyl acetate (CH_3C(O)OCH_2CH_3)?
For ethyl acetate:
- The methyl carbon of the carbonyl group (CH_3C=O): ~20-25 ppm. Not 14.
The peak at 128 ppm is a big clue. It points to a double bond that is not a carbonyl. What if the molecule has a C=C and a C=O? A possible structure is methyl acrylate, H_2C=CHC(O)OCH_3. Its carbons: the alkene carbons (~128 ppm), the carbonyl carbon (~166 ppm), and the methoxy (O-CH_3) carbon (~60 ppm). But where is the fourth peak at 14 ppm? This puzzle shows how 13C NMR guides us, but we often need other information (like proton NMR) to get the final, correct answer—which in this case might be a different isomer.
Real-World Applications Beyond the Lab
13C NMR isn't just for identifying small, pure compounds. It has vital applications in many fields:
- Pharmaceuticals: Ensuring the correct structure of a new drug molecule is synthesized, and checking the purity of the final product.
- Biofuels and Petroleum: Analyzing the complex mixture of hydrocarbons in fuel to understand its composition and quality.
- Food Science: Detecting adulteration, for example, confirming the authenticity of olive oil by checking its unique carbon fingerprint.
- Archaeology and Geology: Dating ancient artifacts and fossils using carbon-14 (14C), a radioactive isotope, relies on principles related to detecting carbon isotopes, though it's a different technique.
Important Questions About Carbon-13 NMR
Q1: Why do we use Carbon-13 instead of the more abundant Carbon-12?
The nucleus of carbon-12 has zero nuclear spin. In NMR terms, it is "NMR silent" because it cannot align with or against a magnetic field. Carbon-13 has a nuclear spin of 1/2, which gives it the magnetic properties needed to produce an NMR signal.
Q2: If only 1.1% of carbons are C-13, is the signal very weak?
Yes, the natural low abundance of 13C makes its signal much weaker than that of hydrogen (proton) NMR. This is why 13C NMR experiments often require more sample, more concentrated solutions, and many more signal scans to build up a clear spectrum. Modern instruments, however, are very sensitive and can handle this well.
Q3: Can Carbon-13 NMR tell us about the 3D shape of a molecule?
To some extent, yes. Advanced techniques and careful analysis can provide information about the spatial arrangement of atoms (stereochemistry). For example, the chemical shifts of carbons in a ring system can change depending on whether substituents are above or below the ring plane. However, for detailed 3D structure, other methods like X-ray crystallography are often used alongside NMR.
Carbon-13 NMR spectroscopy is an indispensable tool in the chemist's arsenal, acting as a molecular "X-ray" that reveals the hidden carbon framework of substances. By interpreting chemical shifts and signal patterns, scientists can deduce the identity and structure of everything from newly synthesized compounds in research labs to complex mixtures in industrial settings. While the underlying physics involves quantum mechanics, the basic principles—different carbons resonate at different frequencies based on their electronic environment—are accessible and provide a fascinating window into the atomic world. Mastering its interpretation is a key step in understanding organic chemistry and molecular science.
Footnote
[1] Organic molecules: Molecules that primarily contain carbon atoms bonded to hydrogen and other elements like oxygen, nitrogen, etc. They are the basis of all living things and many synthetic materials.
[2] NMR (Nuclear Magnetic Resonance): A physical phenomenon and analytical technique where nuclei in a magnetic field absorb and re-emit electromagnetic radiation at a specific frequency characteristic of their environment.
[3] Functional groups: Specific groups of atoms within molecules that have characteristic chemical properties and reactions (e.g., -OH hydroxyl group, -COOH carboxylic acid group).
[4] Chemical Shift (δ): A dimensionless number expressed in parts per million (ppm) that indicates the resonant frequency of a nucleus relative to a standard reference compound in an NMR spectrum. It is calculated as $δ = \frac{ν_{sample} - ν_{reference}}{ν_{spectrometer}} \times 10^6$.
[5] Decoupling: An NMR technique that irradiates hydrogen nuclei with radio waves to eliminate their splitting effect on carbon-13 signals, resulting in simpler single peaks for each carbon.
