Thin-Layer Chromatography (TLC)
The Core Idea: How TLC Separates a Mixture
Imagine you have a mixture of different colored inks in a single pen. How could you separate them to see what colors make up the black or blue ink? Thin-Layer Chromatography offers a clever solution. The entire process is based on a competition between two phases:
- The Stationary Phase: This is a thin, solid layer of an adsorbent material (like silica gel or alumina) that is firmly coated onto a flat plate (made of glass, aluminum, or plastic). Think of it as a very fine, dry sponge stuck to a card.
- The Mobile Phase: This is a liquid solvent or mixture of solvents (like water, alcohol, or acetone). It acts like a flowing river.

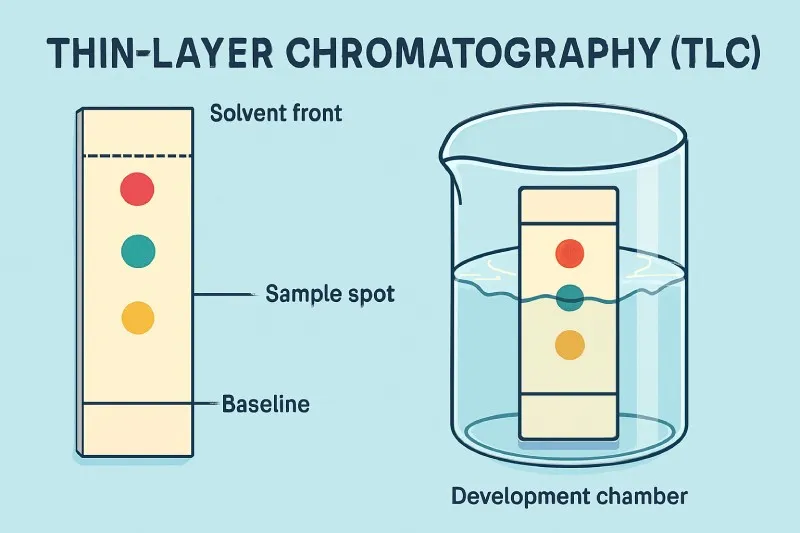

A tiny spot of the mixture you want to analyze is placed near the bottom of the TLC plate. The plate is then placed upright in a shallow pool of the mobile phase inside a closed container. The solvent begins to move upward through the stationary phase by capillary action—the same force that pulls water up into a paper towel.
As the solvent front moves past the sample spot, it dissolves the mixture's components and carries them up the plate. However, the adsorbent material on the plate constantly tries to grab and hold onto these components. This creates a race:
- Components that are more attracted to the mobile phase (more soluble) will spend more time traveling with the solvent and will be carried higher up the plate.
- Components that are more attracted to the stationary phase (they "stick" better to the silica gel) will be held back and not travel as far.
After the solvent has moved most of the way up the plate, the plate is removed and dried. The different components of the original mixture are now separated into distinct spots at different heights. If the components are colorless (like many chemicals), they can be visualized under UV light or by using special staining techniques.
Scientists use a simple calculation called the Retention Factor (Rf) to identify substances and compare results. It is a ratio of distances traveled: $$ R_f = \frac{\text{Distance traveled by the substance}}{\text{Distance traveled by the solvent front}} $$
For example, if a green ink spot traveled 2.5 cm from the start line, and the solvent front traveled 5.0 cm, then the Rf for that green component is: $$ R_f = \frac{2.5 \text{ cm}}{5.0 \text{ cm}} = 0.5 $$ Rf values are always between 0 and 1. Each substance has a specific Rf value under identical experimental conditions.
Essential Materials and Step-by-Step Procedure
Performing a TLC experiment is straightforward. Here is a breakdown of what you need and what you do.
| Material | Description and Purpose |
|---|---|
| TLC Plate | A flat sheet coated with a thin layer of adsorbent (usually silica gel, $SiO_2 \cdot xH_2O$). This is the stationary phase where separation occurs. |
| Mobile Phase (Eluent) | A carefully chosen solvent or solvent mixture. It dissolves the sample and carries it up the plate. |
| Developing Chamber | A closed container (like a jar or beaker with a lid) that holds the mobile phase and provides a saturated atmosphere to prevent the solvent from evaporating too quickly. |
| Capillary Tube | A very thin glass tube used to apply a tiny, concentrated spot of the sample solution onto the plate. |
| UV Lamp or Visualizer | Many compounds are invisible. A UV lamp causes them to fluoresce (glow) or appear as dark spots, allowing us to see where they are on the plate. |
The step-by-step procedure is as follows:
- Prepare the Plate: Using a pencil (ink would dissolve and run), draw a faint start line about 1 cm from the bottom edge. Mark where you will place your samples.
- Spot the Sample: Dip the capillary tube into your sample solution and gently touch it to the plate on one of the pencil marks. Let a very small spot (1-2 mm diameter) form. Allow it to dry completely.
- Prepare the Chamber: Pour a small amount of the mobile phase solvent into the developing chamber, just enough to cover the bottom (a few millimeters deep). Close the lid and let it sit for a few minutes so the air inside becomes saturated with solvent vapor.
- Develop the Plate: Carefully place the spotted TLC plate into the chamber, ensuring the solvent level is below the start line. Close the lid tightly. The solvent will begin to rise up the plate by capillary action.
- Stop Development: When the solvent front is about 0.5-1 cm from the top of the plate, remove the plate from the chamber. Immediately use a pencil to mark the final position of the solvent front.
- Visualize and Analyze: Let the plate dry. View it under a UV lamp or use another method to see the separated spots. Circle each spot with a pencil. Measure the distance from the start line to the center of each spot and to the solvent front line. Calculate the Rf value for each spot.
Real-World Applications: TLC in Action
TLC is not just a classroom experiment; it is a vital tool in many real-world scientific and industrial fields. Its speed, low cost, and simplicity make it the first choice for many analytical checks.
1. Checking Medicine Purity: Pharmaceutical companies use TLC to ensure their products contain the correct active ingredient and are free from impurities or byproducts from the manufacturing process. For example, they can run a TLC plate with a standard sample of aspirin ($C_9H_8O_4$) alongside a sample from a production batch. If extra, unexpected spots appear on the production sample's lane, it indicates contamination.
2. Forensic Analysis: Crime scene investigators might find an unknown powder. They can extract it and run a TLC analysis, comparing its spot pattern and Rf values to known standards of drugs like caffeine, ibuprofen, or illegal substances. This provides a quick preliminary identification.
3. Food and Cosmetic Industry: Is the expensive saffron spice you bought pure, or is it mixed with cheaper dyes? TLC can separate the pigments to reveal the answer. Similarly, it can check for the presence of specific colorings or preservatives in food and makeup.
4. Monitoring Chemical Reactions: A chemist running a reaction can use TLC to check its progress. They take a tiny sample from the reaction flask at different times and spot it on a TLC plate. As the reaction proceeds, the spot for the starting material will diminish, and a new spot for the product will appear and grow stronger. This tells the chemist when the reaction is complete.
5. Plant Chemistry (Phytochemistry): Scientists studying plants use TLC to separate and identify the various chemical compounds present in leaf extracts, like chlorophylls, carotenoids, and flavonoids. This helps in discovering new natural products or medicines.
Important Questions About TLC
Q1: Why must the start line be drawn in pencil and not pen?
Q2: What happens if the solvent level in the chamber is above the start line on the plate?
Q3: Can TLC be used to separate all types of mixtures?
Advanced Concepts: Polarity and Solvent Choice
As you progress in your science studies, understanding polarity becomes key to mastering TLC. Polarity refers to how unevenly electrical charge is distributed in a molecule. Water ($H_2O$) is very polar; oil is non-polar.
- Polar Stationary Phase: Silica gel ($SiO_2$) is polar. It has hydroxyl ($-OH$) groups on its surface that can form hydrogen bonds with other polar molecules.
- Polarity of the Mobile Phase: The solvent's polarity can be adjusted. Common solvents range from non-polar (like hexane) to very polar (like water or methanol).
- The "Like Dissolves Like" Rule: Polar compounds stick more strongly to the polar silica gel and are less soluble in non-polar solvents. Non-polar compounds have less attraction to silica and are more soluble in non-polar solvents.
Therefore, the choice of solvent is a powerful tool:
- To make a compound travel further (increase its Rf), use a more polar solvent for a polar compound, or a more non-polar solvent for a non-polar compound. This increases the compound's attraction to the mobile phase.
- To make a compound travel less (decrease its Rf), do the opposite. This increases the compound's attraction to the stationary phase.
Scientists often use mixtures of solvents (e.g., 70% hexane, 30% ethyl acetate) to fine-tune the polarity of the mobile phase and achieve perfect separation.
Thin-Layer Chromatography is a fundamental and brilliantly simple scientific technique that brings the invisible world of mixtures into view. By harnessing the differential attraction of molecules to a stationary and a mobile phase, TLC allows us to separate, analyze, and identify the components of complex substances with minimal equipment. From checking the authenticity of a spice to monitoring the creation of a new drug, its applications are vast and impactful. Mastering the concepts of the stationary phase, mobile phase, Rf value, and polarity provides a strong foundation for understanding more complex separation methods used in modern research and industry.
