The Apex of a Pyramid: Its Point of Convergence
The Apex Defined: Core Geometry and Properties

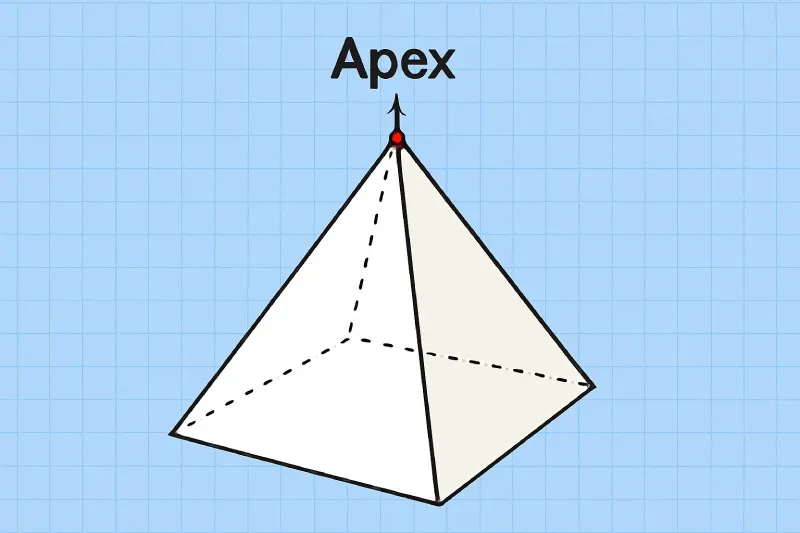

A pyramid is a three-dimensional polyhedron4 formed by connecting a polygonal base to a single point, the apex. The other faces are triangles. The apex is not merely the top; it is the vertex from which the entire three-dimensional shape derives its form.
The most critical measurement related to the apex is the height (or altitude). The height is the perpendicular distance from the apex down to the plane of the base. This is different from the slant height, which is the distance from the apex down the center of a triangular face to the midpoint of a base edge. The location of the apex determines the pyramid's classification.
In a right square pyramid with base side length $a$ and height $h$, the slant height $l$ can be found using the Pythagorean Theorem5: $l = \sqrt{h^2 + (\frac{a}{2})^2}$. The apex is the starting point for measuring both $h$ and $l$.
When the apex lies directly above the center of the base (like the centroid of the base polygon), the pyramid is called a right pyramid. If the apex is positioned above the center of a regular polygon, it is a regular pyramid, which has high symmetry. If the apex is offset, not directly above the base's center, the pyramid is an oblique pyramid. Its faces are not congruent isosceles triangles, and the height is measured from the apex perpendicular to the base plane, not along a face.
Classifying Pyramids by Their Apex
The characteristics of the apex and its relationship to the base allow us to categorize pyramids into distinct types. The table below summarizes the main classifications.
| Pyramid Type | Apex Position Relative to Base | Base Shape | Key Feature |
|---|---|---|---|
| Regular Pyramid | Directly above the center of the base. | A regular polygon (e.g., square, equilateral triangle). | All lateral faces are congruent isosceles triangles. Highly symmetrical. |
| Right Pyramid (Non-regular) | Directly above the base's centroid, but base may be irregular. | Any polygon (e.g., rectangle, scalene triangle). | The apex's foot is at the centroid. Lateral faces are triangles but not necessarily congruent. |
| Oblique Pyramid | Not directly above the base's center. | Any polygon. | Lateral faces are not congruent. The pyramid appears to "lean." |
| Tetrahedron | Any vertex can be considered the apex. | Triangle (the simplest polygon). | A pyramid with a triangular base. All four faces are triangles. It is a Platonic solid6 if regular. |
From Ancient Monuments to Modern Math
The apex is more than a theoretical point; it is a principle of design and stability observed throughout history and science.
The Great Pyramid of Giza is the most famous example. Its original apex, now missing, was a solid capstone. The pyramid is an almost perfect regular square pyramid. The apex was precisely aligned above the center of the square base, showcasing the Egyptians' advanced understanding of geometry and alignment. The stability of this shape comes from the weight being distributed down through the faces from the single apex to the broad base.
In crystallography, many crystal structures are based on pyramidal forms. For instance, some crystals grow with a pyramidal habit, where the apex represents the direction of fastest growth. The molecular arrangement dictates the angles between the faces meeting at the apex.
A more modern example is the Louvre Pyramid in Paris. While it is a glass and metal structure, its form is a clear regular square pyramid. Its apex serves as the visual and architectural focal point, directing viewers' eyes upward and creating a sense of convergence from the four sloping sides.
Finally, consider a simple camping tent. Most traditional tents use a pyramidal (or A-frame) design. The apex is the highest point where the tent poles meet. This design efficiently sheds rain and snow, as water runs down the sloping sides (the faces) from the apex to the ground, demonstrating the functional utility of this geometric form.
Important Questions
No. By definition, a pyramid has one and only one apex. If a solid has more than one point where all the sloping sides meet (like in a prism or a double pyramid/bipyramid), it is not a single pyramid. A bipyramid is essentially two pyramids joined base-to-base, each with its own apex.
Visually, we usually imagine the apex at the top. However, mathematically, the apex is simply the vertex opposite the base. If you flip a pyramid upside down, the apex is at the bottom. The key is that it is the single point where all lateral faces converge, regardless of orientation. For a pyramid floating in space, "top" is a relative term based on gravity, but the apex is an absolute geometric feature.
For a right pyramid with a known base, the apex lies directly above the base's centroid. First, find the centroid $(x_c, y_c)$ of the base polygon in its plane (e.g., using formulas for the center of a rectangle or triangle). The apex's coordinates will be $(x_c, y_c, h)$, where $h$ is the height of the pyramid. If the pyramid is oblique, you need additional information, such as the horizontal offset from the centroid.
The apex is the defining vertex of a pyramid, the crucial point from which its entire three-dimensional form emerges. Its position relative to the base—whether centered for symmetry or offset to create an oblique shape—dictates the pyramid's classification and properties. From the majestic pyramids of Egypt to the molecular structure of crystals, the concept of the apex illustrates how a single point of convergence can create structures of immense strength, beauty, and mathematical elegance. Understanding the apex provides a foundational insight into spatial reasoning, geometry, and their practical applications in our world.
Footnote
1 Base: The polygonal face of a pyramid that does not contain the apex. It is the foundation upon which the pyramid is built.
2 Regular Pyramid: A right pyramid whose base is a regular polygon.
3 Oblique Pyramid: A pyramid where the apex is not aligned directly above the centroid of the base.
4 Polyhedron: A three-dimensional solid with flat polygonal faces, straight edges, and vertices.
5 Pythagorean Theorem: A fundamental relation in Euclidean geometry: in a right triangle, the square of the length of the hypotenuse ($c$) is equal to the sum of the squares of the lengths of the other two sides ($a$ and $b$): $a^2 + b^2 = c^2$.
6 Platonic Solid: A highly symmetric, convex polyhedron in three dimensions with congruent faces of regular polygons and the same number of faces meeting at each vertex. There are exactly five: tetrahedron, cube, octahedron, dodecahedron, icosahedron.
