Venn Diagrams: The Picture of Logic
What are Sets and Venn Diagrams?
Imagine you have a collection of things. In mathematics, we call such a collection a set. The things inside a set are called its elements or members. For example, the set of "Days in a Weekend" has two elements: Saturday and Sunday. The set of "Primary Colors" has three elements: Red, Yellow, and Blue.

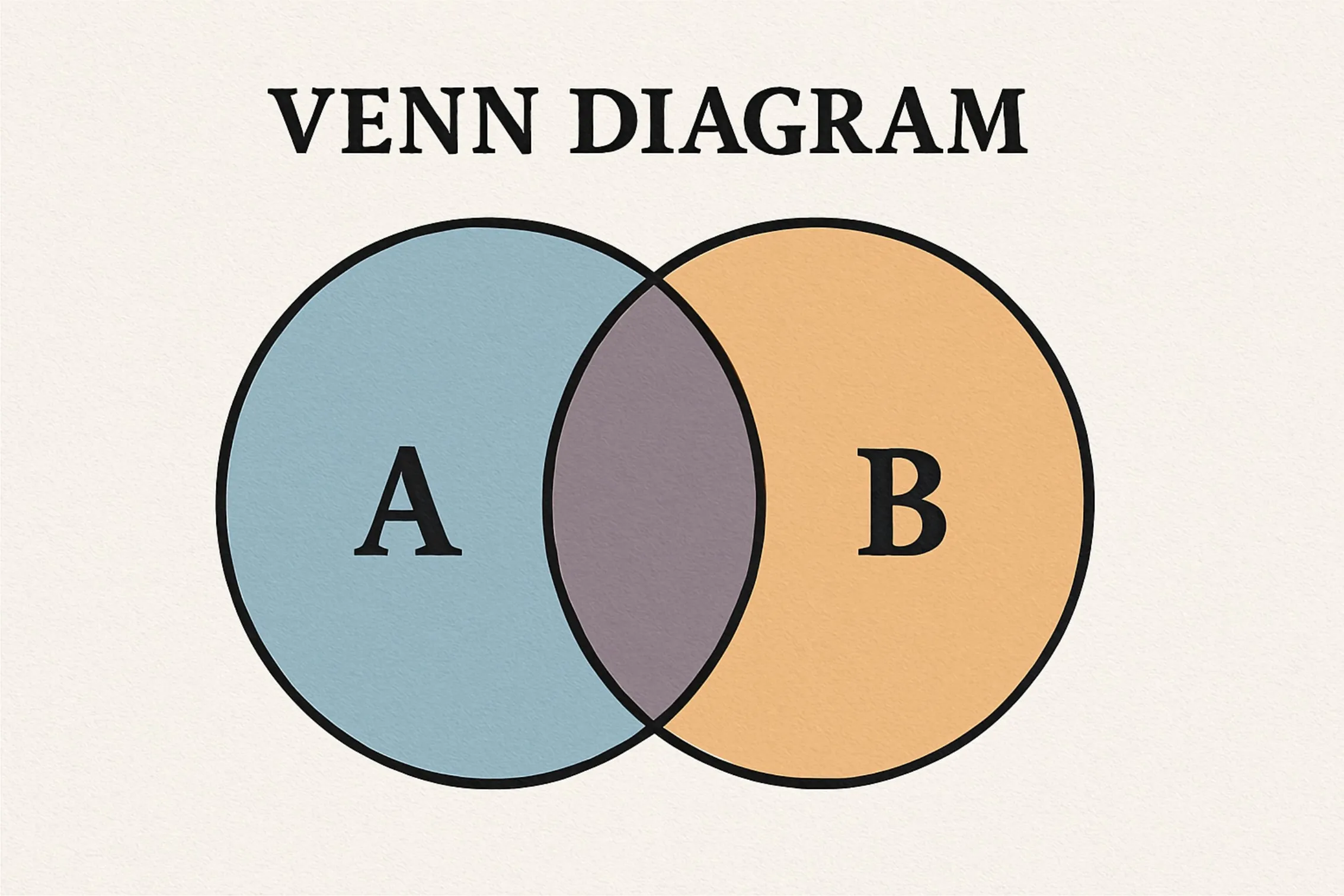

A Venn diagram is a picture of sets. Named after the English mathematician John Venn (1834–1923), it uses shapes—most commonly circles—to represent sets. The area inside the circle represents all the members of that set. The key feature is overlap: when circles overlap, the shared area represents elements that belong to both sets simultaneously. The space outside the circles but inside a rectangle (called the universal set) represents everything else under consideration.
Fundamental Set Operations in Pictures
The true power of Venn diagrams is in showing how sets interact. These interactions are called set operations. Let's explore the three most important ones.
1. Intersection ($\cap$)
The intersection of two sets, written as $A \cap B$, is the set of elements that are in A and in B. On a Venn diagram, it is the region where the two circles overlap.
Example: Let Set A = $\{$Cat, Dog, Fish$\}$ and Set B = $\{$Dog, Rabbit, Hamster$\}$. Then $A \cap B = \{$Dog$\}$. Only "Dog" is in both sets.
2. Union ($\cup$)
The union of two sets, written as $A \cup B$, is the set of all elements that are in A, or in B, or in both. On a Venn diagram, it is the total area covered by both circles.
Example: Using the same sets A and B above, $A \cup B = \{$Cat, Dog, Fish, Rabbit, Hamster$\}$. We list every pet, but only once.
3. Complement
The complement of a set A, often written as A' or $A^c$, is the set of all elements in the universal set that are not in A. On the diagram, it's everything outside circle A but inside the universal rectangle.
Example: If the universal set is "Letters of the Alphabet" and Set V = $\{$A, E, I, O, U$\}$ (vowels), then V' is the set of all consonants.
| Operation | Symbol | Meaning | Venn Diagram Region |
|---|---|---|---|
| Intersection | $\cap$ | Elements in both sets | Overlapping area of circles |
| Union | $\cup$ | Elements in either set (or both) | Total area covered by all circles |
| Complement | $'$ or $^c$ | Elements not in the set | Area outside the circle but inside the universal rectangle |
Working with Two and Three Sets
Venn diagrams can handle more than two sets. A diagram with three overlapping circles is very common and useful for more complex categorization.
Three-Set Diagram Regions: When three circles (A, B, C) all overlap, they create eight distinct regions:
- Only in A
- Only in B
- Only in C
- In A and B, but not C $(A \cap B \cap C')$
- In A and C, but not B $(A \cap C \cap B')$
- In B and C, but not A $(B \cap C \cap A')$
- In all three: A, B, and C $(A \cap B \cap C)$
- In none of the sets (outside all circles)
This allows us to solve problems like: "In a class, some students play Football (F), some play Basketball (B), and some play Tennis (T). Some play two sports, some play all three, and some play none. How many students play only Tennis?" By placing numbers in the correct regions of a three-circle Venn diagram, the answer becomes clear.
Solving Real-World Problems with Venn Diagrams
Let's apply what we've learned to a classic survey problem, suitable for middle and high school students.
Scenario: In a survey of 60 students about their preferred subjects:
- 35 like Mathematics (M).
- 30 like Science (S).
- 25 like English (E).
- 15 like both Mathematics and Science.
- 12 like both Science and English.
- 10 like both Mathematics and English.
- 7 like all three subjects.
How many students like only English? And how many like none of these subjects?
Step-by-Step Solution with a Venn Diagram:
- Draw three overlapping circles labeled M, S, and E inside a rectangle (the universal set of 60 students).
- Start from the innermost region: The number who like all three is 7. Write "7" in the central overlap of all three circles.
- Move outward to pairwise overlaps:
- "Both M and S" is 15. The central region (7) is part of this. So, the number who like M and S but not E is $15 - 7 = 8$.
- "Both S and E" is 12. Minus the central 7 gives $12 - 7 = 5$ for S and E only.
- "Both M and E" is 10. Minus the central 7 gives $10 - 7 = 3$ for M and E only.
- Find the "only" regions:
- Total who like M is 35. Subtract those already counted in M's circle: $35 - (8 + 7 + 3) = 35 - 18 = 17$. These 17 like only Mathematics.
- Total who like S is 30. Subtract: $30 - (8 + 7 + 5) = 30 - 20 = 10$. These 10 like only Science.
- Total who like E is 25. Subtract: $25 - (3 + 7 + 5) = 25 - 15 = 10$. These 10 like only English.
- Find the number outside all circles: Add all numbers inside the diagram: $17 + 8 + 10 + 3 + 7 + 5 + 10 = 60$. The sum is 60, which matches the total surveyed. Therefore, 0 students like none of the subjects.
Beyond Circles: Other Uses and Variations
While circles are standard, Venn diagrams can use other shapes. For example, intersecting squares or ovals work the same way. There are also related diagrams:
- Euler Diagrams: Similar to Venn diagrams, but circles do not have to intersect if the sets have no common elements. They show relationships more than all possible logical intersections.
- John Venn's Original Diagrams: He used more complex shapes, like ellipses and rectangles, to represent sets with many members.
Venn diagrams are not just for math! They are used in:
- Reading & Writing: To compare and contrast two characters in a story or two historical events.
- Science: To classify animals (e.g., traits of mammals vs. reptiles).
- Computer Science: In database searches using "AND" (intersection), "OR" (union), and "NOT" (complement) operations.
- Everyday Decision Making: Listing pros and cons of two different choices in overlapping circles to see shared advantages.
Important Questions
Q1: What is the main difference between a Venn diagram and a Euler diagram?
A Venn diagram shows all possible logical relationships between sets, meaning every possible overlap (intersection) between circles must be drawn, even if it's empty. An Euler diagram only shows the relationships that actually exist; if two sets have no common elements, their circles are drawn separately without overlap.
Q2: Can a Venn diagram have more than three sets? How is it drawn?
Yes, Venn diagrams can represent more than three sets, but it becomes visually complex. For four sets, ellipses or other curved shapes are often used to create a diagram where all 16 possible regions are visible. For five or more sets, symmetric diagrams are very difficult to draw clearly, so mathematicians and computer scientists often use other representations, though the logical principles remain the same.
Q3: In the survey example, what does the region "Mathematics and Science but not English" represent in plain language?
It represents students who like both Math and Science but do not like English. These are students who have a preference for the two STEM[1] subjects but do not count English among their favorites.
Footnote
[1] STEM: An abbreviation for Science, Technology, Engineering, and Mathematics. It refers to academic and professional disciplines in these fields.
[2] Universal Set: In the context of a particular discussion or problem, it is the set that contains all objects or elements under consideration, typically represented by a rectangle in a Venn diagram.
[3] Element/Member: An individual object that belongs to a set. For example, the number 2 is an element of the set of even numbers.
