The Giant Ionic Lattice
Building Blocks: Ions and Ionic Bonds
To understand a giant ionic lattice, we must first meet its building blocks: ions. An ion is an atom or group of atoms that has gained or lost one or more electrons, giving it an overall electric charge.
- Cations are positively charged ions, formed when atoms lose electrons. Metals often form cations.
- Anions are negatively charged ions, formed when atoms gain electrons. Non-metals often form anions.
The force that glues these oppositely charged ions together is the ionic bond. It is not a physical stick or string, but a powerful electrostatic attraction—the same type of force that makes your hair stand up with static electricity, but on a much stronger and more organized scale.
Example: The Formation of Sodium Chloride
A sodium atom (Na) has 11 electrons. It readily donates its single outer electron to a chlorine atom (Cl), which has 17 electrons and needs one more to be stable.
- Sodium becomes a sodium cation: Na → Na+ + e-
- Chlorine becomes a chloride anion: Cl + e- → Cl-
The resulting Na+ and Cl- ions are then powerfully attracted to each other, forming an ionic bond. This process is the first step in building the lattice.
From a Single Bond to a Giant Structure

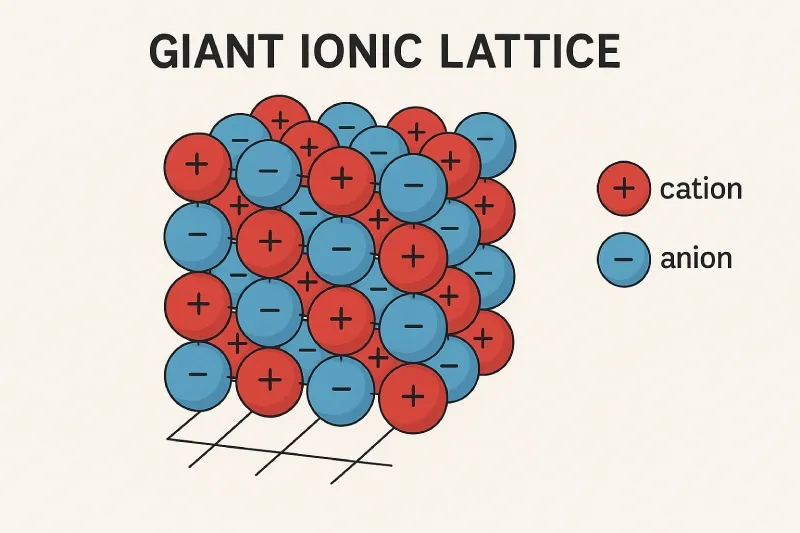

An ionic compound does not exist as a simple pair of ions like Na+Cl-. Instead, each ion attracts several ions of the opposite charge from all directions, assembling into a massive, repeating 3D pattern called a giant ionic lattice. The term "giant" refers to its immense size, containing a virtually uncountable number of ions.
In the sodium chloride lattice, each sodium ion is surrounded by six chloride ions, and each chloride ion is surrounded by six sodium ions. This arrangement is incredibly efficient and stable, maximizing the attractive forces between ions while minimizing the repulsive forces between like charges.
| Compound | Formula | Melting Point (°C) | Boiling Point (°C) | Electrical Conductivity |
|---|---|---|---|---|
| Sodium Chloride | NaCl | 801 | 1,413 | Only when molten or dissolved |
| Magnesium Oxide | MgO | 2,852 | 3,600 | Only when molten |
| Potassium Iodide | KI | 681 | 1,330 | Only when molten or dissolved |
Properties Explained by the Lattice Structure
The specific arrangement and bonding within a giant ionic lattice directly cause the physical properties we observe.
High Melting and Boiling Points
The electrostatic forces holding the lattice together are extremely strong. To melt an ionic solid, you must supply enough energy to overcome these powerful ionic bonds and allow the ions to move freely. This requires very high temperatures, which is why ionic compounds like sodium chloride are solids at room temperature and have melting points in the hundreds of degrees Celsius.
The strength of an ionic lattice is measured by its lattice energy: the energy released when gaseous ions form one mole of a solid ionic compound. A higher lattice energy means stronger bonds and a higher melting point. Lattice energy increases with higher ion charges and smaller ion sizes. For example, MgO (Mg2+ and O2-) has a much higher melting point than NaCl (Na+ and Cl-).
Electrical Conductivity
In a solid ionic lattice, the ions are locked in place and cannot move to carry an electric current. However, when the compound is molten (melted) or dissolved in water, the lattice structure breaks down. The ions are then free to move, and this movement allows them to conduct electricity. For instance, molten salt is an excellent conductor.
Brittleness
Ionic crystals are hard but brittle. If you apply a force that shifts one layer of ions, ions of the same charge can be brought next to each other.
- Like charges repel.
- This repulsion forces the layers apart, causing the crystal to split and shatter.
Solubility in Water
Many ionic compounds are soluble in water. Water molecules are polar, meaning they have a slight positive charge on one end and a slight negative charge on the other. These polar water molecules can surround the ions, pulling them away from the lattice and dissolving the solid. Not all ionic compounds are soluble; it depends on whether the energy released when ions are hydrated (surrounded by water) is greater than the lattice energy holding them together.
Ionic Lattices in Action: From Salt to Smartphones
The properties of giant ionic lattices make them indispensable in daily life and modern technology.
Table Salt (Sodium Chloride, NaCl): The most classic example. Its lattice structure makes it a stable, crystalline solid that we use to flavor our food. In the body, the dissolved Na+ and Cl- ions are essential for nerve function and fluid balance.
De-icing Roads: Salts like sodium chloride (NaCl) or calcium chloride (CaCl2) are spread on icy roads. When they dissolve, they lower the freezing point of water, melting the ice and making roads safer.
Batteries and Electrolysis: Molten ionic compounds or their solutions are used as electrolytes in batteries and for electrolysis. For example, lithium-ion batteries rely on the movement of Li+ ions. The extraction of aluminum from its ore uses electrolysis of molten cryolite (Na3AlF6) and aluminum oxide (Al2O3), both of which contain ionic lattices.
Ceramics and Materials Science: Compounds like magnesium oxide (MgO) and aluminum oxide (Al2O3) have extremely high melting points due to their strong ionic lattices. This makes them ideal for lining industrial furnaces and creating heat-resistant tiles for spacecraft.
Important Questions
Why don't ionic compounds conduct electricity in their solid state?
In a solid ionic lattice, the ions are held in fixed positions by strong ionic bonds. Since they cannot move freely, there are no charged particles available to carry an electric current through the material. The electricity cannot flow.
What is the difference between an ionic bond and a covalent bond?
An ionic bond is formed by the transfer of electrons from a metal to a non-metal, creating ions that attract each other. A covalent bond is formed when two non-metal atoms share one or more pairs of electrons. Ionic bonds typically form giant lattices, while covalent bonds can form simple molecules (like H2O) or giant structures (like diamond).
Why do some ionic compounds dissolve in water while others do not?
Dissolution is a balance of energies. For an ionic compound to dissolve, the energy released when water molecules surround and interact with the ions (hydration energy) must be greater than the energy holding the ions together in the lattice (lattice energy). If the lattice energy is too high, the compound won't dissolve easily.
Footnote
1 Electrostatic Forces: The forces of attraction or repulsion between electrically charged particles.
2 Cations: Positively charged ions.
3 Anions: Negatively charged ions.
4 Lattice Energy: The energy released when one mole of an ionic crystal is formed from its gaseous ions.
5 Polar Molecule: A molecule in which one end has a slight positive charge and the other end has a slight negative charge.
