Giant Metallic Lattice: The Architecture of Metals
What is a Giant Metallic Lattice?

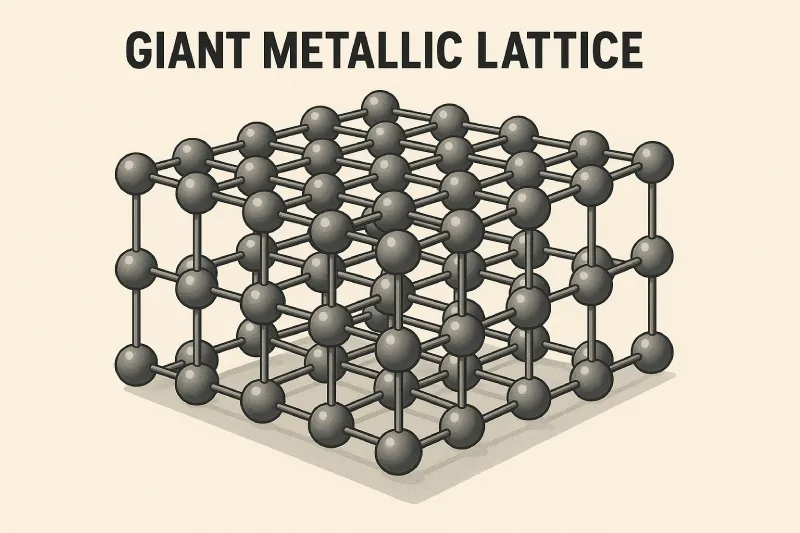

Imagine a tightly packed, orderly array of spheres, like oranges in a supermarket display. Now, imagine that these spheres are positively charged metal ions. This is the starting point of the giant metallic lattice. The key feature that makes this structure unique is what holds these positive ions together. Unlike ionic or covalent bonds, there are no negative ions or shared electron pairs directly bonding the atoms. Instead, the outer electrons from each metal atom detach and become free to move throughout the entire structure. This creates a 'sea' or 'cloud' of delocalised electrons that surrounds the positive ions.
The strong electrostatic attraction between the negatively charged delocalised electrons and the positively charged metal ions is the glue that holds the entire structure together. This type of bonding is known as metallic bonding[1]. The structure is called 'giant' because it extends in all three dimensions, consisting of a very large, repeating pattern of ions and electrons, which can be millions of atoms long.
How Metals are Formed: A Closer Look at the Particles
To understand how this lattice forms, let's consider the element sodium (Na). A single sodium atom has 11 electrons: 2 in the first shell, 8 in the second, and 1 in the third (outer shell). This single outer electron is held weakly by the nucleus.
When billions of sodium atoms come together to form a piece of metal, each atom donates its single outer electron to a shared pool. What remains is a sodium ion, Na+, which has a positive charge. These Na+ ions then arrange themselves in a regular, closely-packed 3D pattern. The donated electrons are no longer associated with any specific ion; they are delocalised and free to move randomly throughout the spaces between the ions.
The same principle applies to other metals. For example, magnesium (Mg) has two outer electrons. Each Mg atom donates both electrons, forming an Mg2+ ion and contributing two electrons to the delocalised sea. This generally results in stronger bonding and a higher melting point compared to sodium, as we will see in the next section.
Properties Explained by the Metallic Lattice
The unique properties of metals are direct consequences of the giant metallic lattice structure. The following table summarizes how this structure leads to the behaviors we observe.
| Property | Explanation Linked to the Lattice Structure |
|---|---|
| High Electrical Conductivity | The delocalised electrons are free to move. When a voltage is applied, these electrons drift in one direction, creating an electric current. The positive ions remain in their fixed positions. |
| High Thermal Conductivity | The free-moving electrons can transfer kinetic energy rapidly through the lattice. When one part of the metal is heated, electrons gain energy, move faster, and collide with other electrons and ions, transferring heat energy throughout the material. |
| Malleability and Ductility | Metals can be hammered into sheets (malleability) or drawn into wires (ductility). When layers of ions are forced to slide over one another, the delocalised electrons quickly redistribute and re-establish the metallic bonds. The lattice structure is not shattered, just reshaped. |
| Metallic Luster (Shininess) | The delocalised electrons on the metal's surface absorb light energy and immediately re-emit it, resulting in the characteristic shiny appearance of polished metals. |
| High Melting and Boiling Points | Metallic bonding is strong. A significant amount of thermal energy is required to overcome the strong electrostatic forces holding the ions and electron sea together, so most metals have high melting points. Exceptions like mercury have weaker bonding. |
Factors Influencing Metallic Bond Strength
Not all metallic bonds are equally strong. The strength of the bonding, and therefore properties like melting point and hardness, depends on two main factors:
1. Number of Delocalised Electrons per Atom: A metal atom that can donate two delocalised electrons (e.g., Magnesium, Mg2+) will contribute more to the electron sea than an atom that donates only one (e.g., Sodium, Na+). More delocalised electrons lead to a stronger attractive force between the sea and the ions, resulting in a higher melting point and stronger metal.
2. Size of the Metal Ion (Ionic Radius): Smaller positive ions can pack more closely together. This means the delocalised electrons are closer to the nuclei of more ions, strengthening the overall electrostatic attraction. For example, sodium ions are larger than magnesium ions, which is another reason why sodium has a lower melting point than magnesium.
Metals in Action: From Wires to Kitchen Foil
The theory of the metallic lattice explains countless real-world applications. Let's look at a few common examples:
Copper Electrical Wires: Copper is an excellent conductor of electricity because its delocalised electrons move very easily with little resistance. The copper lattice allows a smooth flow of charge, making it the ideal material for wiring in our homes and electronics.
Aluminum Foil: Aluminum is both malleable and ductile. It can be rolled into incredibly thin sheets (foil) because when force is applied, the layers of Al3+ ions can slide past each other. The sea of electrons acts as a lubricant and a binder, preventing the foil from shattering and maintaining its integrity even when bent or folded.
Steel Bridges and Skyscrapers: The strength of iron, enhanced by mixing it with carbon to form steel, comes from its strong metallic bonding. The giant metallic lattice can withstand enormous forces without the layers of ions sliding apart easily, providing the structural strength needed for large buildings and bridges.
Stainless Steel Cutlery: The shiny, reflective surface of a metal spoon is a direct demonstration of metallic luster. The electrons at the surface interact with light to create the shiny appearance. Furthermore, the hardness and high melting point of the steel allow the spoon to be used in hot food without deforming.
Important Questions
Why don't metals dissolve in water?
Metallic bonding is extremely strong and non-polar. Water molecules, which are polar, cannot overcome the powerful electrostatic forces between the positive ions and the electron sea to separate them and form a solution. Some metals may react with water (like sodium), but they do not simply dissolve like salt or sugar.
If the electrons are free to move, why are most metals solid at room temperature?
While the electrons are delocalised, the positive metal ions are held in fixed positions within the lattice by the strong metallic bonds. These bonds require a large amount of energy (high temperature) to break. At room temperature, there is not enough thermal energy to overcome these forces, so the ions remain in their rigid, solid structure, even as the electrons flow around them.
How are alloys different from pure metals?
In an alloy, atoms of different elements are mixed together. These foreign atoms have different sizes than the host metal atoms. They disrupt the regular layers of the giant metallic lattice, making it more difficult for the layers to slide over each other. This is why alloys like brass (copper and zinc) or steel (iron and carbon) are generally harder and stronger than the pure metals they are made from.
Footnote
[1] Metallic Bonding: The chemical bonding that arises from the electrostatic attractive force between conduction electrons (delocalised electrons) and positively charged metal ions.
[2] Delocalised Electrons: Electrons that are not associated with a single atom or a single covalent bond. In metals, these electrons are free to move throughout the entire crystalline structure.
[3] Malleability: The ability of a material to be deformed under compression (e.g., hammered or rolled into thin sheets) without cracking.
[4] Ductility: The ability of a material to be stretched into a long wire without breaking.
