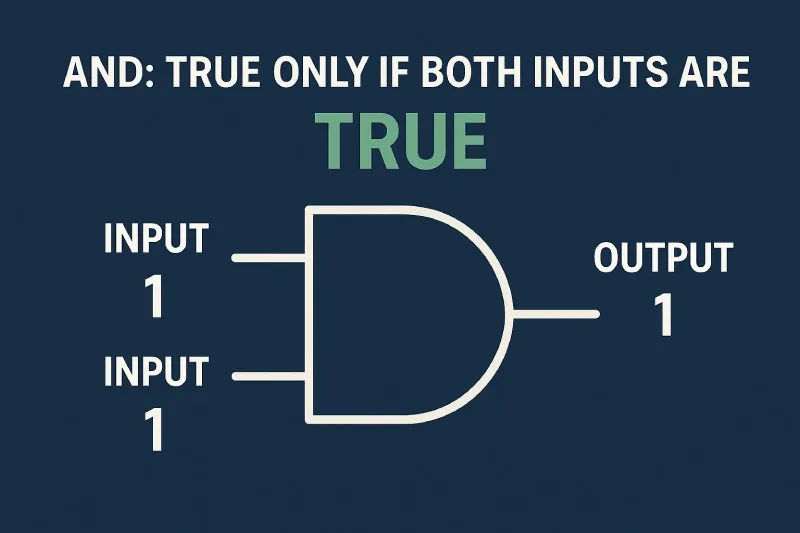

The AND Gate: TRUE only if both inputs are TRUE
1. Everyday Conjunction: The Two-Switch Problem
Imagine a simple challenge: you want a light bulb in a long hallway to turn on only if two specific conditions are met. For example, the light should only shine if the master switch AND the safety key are both activated. If either one is off, the room remains dark. This is the most basic form of the AND operation. It represents a situation where multiple requirements must be satisfied simultaneously for a result to happen. In computer science and electronics, we call this a "gate" because it lets a signal pass (like a gate opening) only when all entry conditions are true.
Consider a home security system that sends an alert only if a window sensor is broken AND the alarm system is armed. If the system is disarmed, no alert is sent, even if the window breaks. This "all-or-nothing" requirement is the heart of the AND logic. It's a fundamental part of decision-making in both mechanical circuits and modern microprocessors.
2. The Truth Table: Mapping Every Possibility
To precisely define the AND operation, we use a tool called a truth table. It lists every possible combination of inputs and shows the corresponding output. For a two-input AND gate, there are four possible input pairs. We typically denote "FALSE" as 0 and "TRUE" as 1. This binary system is the language of computers.
| Input A | Input B | Output Q (A AND B) |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
As the table shows, the output is 1 (TRUE) only in the single case where both A AND B are 1 (TRUE). This simple rule is the foundation for more complex operations, such as enabling a computer's memory chip only when the correct address line and the read signal are both active.
3. From Switches to Silicon: The AND Gate Circuit
In electronics, an AND gate is built using transistors. Imagine two switches connected in series (one after the other) with a light bulb. Current can only flow from the battery to the bulb if both switches are closed (TRUE). If either switch is open (FALSE), the path is broken. This series configuration is the physical equivalent of the logical AND.
Modern AND gates are microscopic circuits etched onto silicon chips. They form the basic building blocks of arithmetic logic units (ALUs) in CPUs. For instance, when a computer adds two numbers, it uses a series of AND gates to calculate the "carry" bit. Without the AND operation, your calculator, smartphone, or video game console simply wouldn't function.
4. Beyond Two Inputs: Multi-Input AND Logic
The AND concept extends naturally to more than two inputs. A three-input AND gate outputs TRUE only if Input A, Input B, AND Input C are all TRUE. This is like a safety system for a nuclear reactor that requires three separate keys to be turned simultaneously to start a process. The truth table for three inputs has $2^3 = 8$ rows, and only one of those rows (the last one) has an output of 1.
| A | B | C | Output (A·B·C) |
|---|---|---|---|
| 0 | 0 | 0 | 0 |
| 0 | 0 | 1 | 0 |
| 0 | 1 | 0 | 0 |
| 0 | 1 | 1 | 0 |
| 1 | 0 | 0 | 0 |
| 1 | 0 | 1 | 0 |
| 1 | 1 | 0 | 0 |
| 1 | 1 | 1 | 1 |
5. Practical Application: The Digital Combination Lock
Let's design a simple electronic combination lock. Suppose the lock opens (output Q=1) only when two conditions are TRUE: the correct 4-bit code is entered AND a valid "open" button is pressed. Internally, the code "1011" might be checked by a circuit that outputs a 1 only if each bit matches. This signal (Condition A) and the button press signal (Condition B) are fed into an AND gate. The lock mechanism only receives power when the AND gate's output is 1.
This principle scales up. In a modern computer, the decision to write data to memory involves an AND combination of several signals: the memory address must be correct, the "write enable" line must be active, and the system clock must pulse at the right moment. Only when all these conditions are TRUE does the data get stored.
Important Questions
A1: Because its output is "all" (TRUE) only when "all" inputs are TRUE. In every other case, the output is "nothing" (FALSE). It demands unanimous agreement from all inputs.
A2: The OR operation outputs TRUE if at least one input is TRUE. For example, in an OR gate, $1 + 0 = 1$. The AND gate is much stricter: it requires all inputs to be TRUE to output TRUE ($1 \cdot 0 = 0$). It's the difference between "one is enough" and "everyone must agree."
A3: Absolutely. You can buy integrated circuit chips containing AND gates with three, four, or even eight inputs. They function exactly like the two-input version: the output is high (TRUE) only if every single input is high. They are essential for tasks like address decoding in computers, where a specific chip must be activated only when a specific set of address lines are all 1.
Footnote
[1] Boolean Algebra: A branch of algebra invented by George Boole in the 19th century. It deals with variables that have only two possible values: TRUE (1) and FALSE (0), and operations like AND, OR, and NOT.
[2] Truth Table: A mathematical table used in logic to compute the output of a function for all possible combinations of its inputs.
[3] Integrated Circuit (IC): A set of electronic circuits on one small flat piece of semiconductor material, usually silicon. It is often called a microchip.
[4] Conjunction: The logical term for the AND operation. In formal logic, the symbol $\land$ is often used to represent AND.
