Galvanizing: The Protective Shield of Zinc
The Enemy: Understanding Rust
Before we learn about the solution, we must understand the problem. Rust is the common name for the corrosion of iron and its alloys, like steel. It's not just a cosmetic issue; it weakens the metal, making structures unsafe.
Rust forms through a chemical reaction between iron, oxygen, and water. You can think of it as a slow "burning" of the metal. The scientific name for rust is iron oxide. The chemical reaction can be simplified as:
In a more chemical form: $4Fe + 3O_2 + xH_2O → 2Fe_2O_3·xH_2O$
Imagine a shiny nail. When it gets wet, a thin layer of water allows oxygen from the air to react with the iron atoms on the surface. This reaction creates a new, flaky, orange compound that doesn't stick well to the metal. Unlike the protective patina on copper, rust flakes off, exposing fresh iron underneath to continue the cycle until the nail is completely weakened.
The Hero: Zinc and Sacrificial Protection
Zinc is a bluish-white metal that doesn't rust like iron. When zinc coats iron, it protects it in two ingenious ways:
1. The Barrier Protection: The zinc coating simply acts as a physical barrier, like a raincoat, preventing oxygen and water from reaching the iron surface.
2. The Sacrificial (Cathodic) Protection: This is the real superpower of galvanizing. If the zinc coating is scratched or cut, exposing the iron, something amazing happens. Zinc is more reactive than iron in the electrochemical series[1]. This means zinc will corrode preferentially to iron.
Think of it like this: Zinc is a more willing volunteer to react with oxygen and water. When both metals are exposed, zinc "sacrifices" itself by corroding first, thereby protecting the iron. The zinc acts as an anode[2], and the iron acts as a cathode[3], in a tiny natural battery. This process continues until all the zinc around the scratch is consumed, which can take a very long time.
How Galvanizing is Done: The Main Methods
There are several ways to apply a zinc coating, each suitable for different products and levels of protection.
| Method | Process Description | Common Uses | Protection Thickness |
|---|---|---|---|
| Hot-Dip Galvanizing (HDG) | Clean steel is dipped into a bath of molten zinc at about 450°C (842°F). A metallurgical bond forms, creating zinc-iron alloy layers. | Structural steel, guardrails, transmission towers, bridges, street furniture. | Thick (50-150 microns). Long-lasting, decades of protection. |

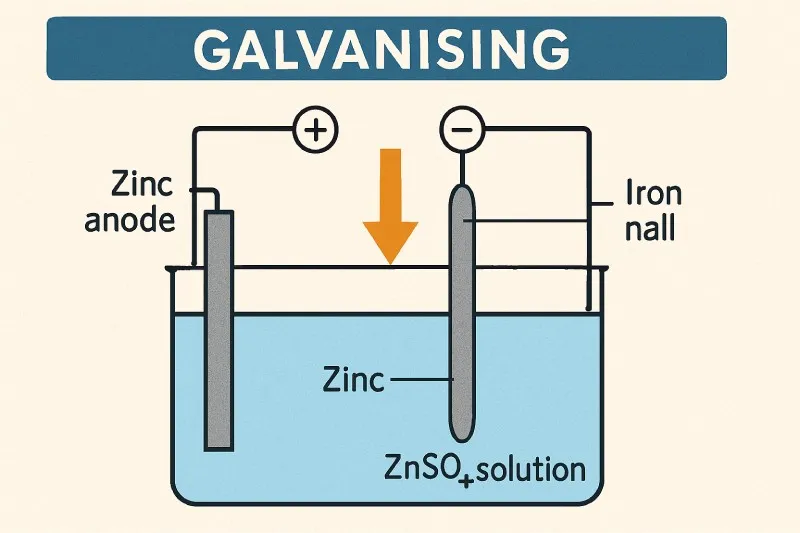

| Electrogalvanizing | Uses an electrical current to deposit zinc ions from a solution onto the steel surface (electroplating). | Automotive body panels, hardware, electrical enclosures. | Thin (5-25 microns). Smooth, shiny finish, but less rugged. |
| Zinc Spraying (Thermal Spray) | Molten zinc is sprayed onto prepared steel using a special gun. The particles solidify on impact. | Large structures that cannot be dipped (e.g., ship hulls, already-built bridges, large tanks). | Variable thickness. Good for on-site repair and large items. |
| Sherardizing (Diffusion Galvanizing) | Parts are tumbled in a sealed drum with zinc powder and heated. The zinc diffuses into the steel to form a zinc-iron alloy coating. | Small, complex parts like nuts, bolts, screws, and fasteners. | Uniform, even on complex shapes. Matte grey finish. |
The Hot-Dip Galvanizing Journey: A Step-by-Step Story
Let's follow a steel beam as it goes through the most common industrial process, hot-dip galvanizing. This deep dive shows why the protection is so durable.
Step 1: Surface Preparation – The Deep Clean. This is the most critical step. Any oil, paint, or rust left on the steel will prevent the zinc from bonding properly. The beam goes through three baths:
- Degreasing: A hot alkaline solution removes dirt, oil, and organic contaminants.
- Pickling: The beam is dipped in a dilute acid (usually hydrochloric or sulfuric acid) to remove mill scale[4] and any rust. The acid reacts with iron oxide: $Fe_2O_3 + 6HCl → 2FeCl_3 + 3H_2O$.
- Fluxing: The clean steel is dipped in a zinc ammonium chloride solution. This removes any last oxides and forms a protective layer to prevent re-oxidation before dipping in the zinc.
Step 2: Galvanizing – The Zinc Bath. The perfectly clean and fluxed steel is slowly immersed into a kettle of molten zinc at 450°C. The zinc reacts with the iron to form a series of zinc-iron alloy layers, which are actually harder than the base steel. The outer layer is pure zinc. The beam is then withdrawn slowly, allowing excess zinc to drip off.
Step 3: Inspection – The Final Check. The now silver-gray beam is cooled and inspected. The coating thickness is measured, and its appearance is checked. The iconic spangled finish (a crystalline pattern) is often visible, a signature of hot-dip galvanizing.
Galvanizing in Action: From Playgrounds to Power Lines
Galvanized steel is all around us. Its combination of durability, cost-effectiveness, and low maintenance makes it indispensable.
The Playground Jungle Gym: A jungle gym faces constant exposure to rain, sun, and the touch of many hands. A galvanized coating ensures it won't rust and stain children's clothes, and it provides a robust, long-lasting structure without needing frequent repainting.
Transmission Towers and Power Lines: These structures stand in remote fields, forests, and mountains, exposed to all weather conditions. Galvanizing provides a maintenance-free corrosion protection for 50 years or more, ensuring the reliable delivery of electricity. The sacrificial protection is vital for areas with high humidity or salt spray.
Everyday Hardware: Nails, screws, bolts, and buckets are often galvanized. For a nail, the sacrificial protection is crucial. When hammered into wood, its zinc coating may get scratched, but the surrounding zinc will sacrificially protect the exposed tip, preventing it from rusting and weakening inside the wood.
Important Questions Answered
Q: Can galvanized steel rust eventually?
Yes, but it takes a very long time. The zinc coating corrodes very slowly at a predictable rate—about 1 micron per year in a rural atmosphere, slower than the corrosion rate of bare steel. Once the zinc is fully consumed, the underlying steel will begin to rust. A thick hot-dip coating can last for decades, even in harsh environments.
Q: Why does galvanized steel have that unique crystalline or "spangled" pattern?
The spangled pattern is a characteristic of hot-dip galvanizing. As the steel is pulled from the molten zinc bath, the pure zinc layer on the surface solidifies. The pattern is formed by the crystalline growth of zinc as it cools. The size and visibility of the spangles depend on the steel's chemistry and the cooling rate. It's a natural, decorative signature of the process and does not affect the protective qualities.
Q: Is galvanizing environmentally friendly?
Galvanizing has several green advantages. First, it extends the life of steel massively, reducing the need for replacement and saving raw materials and energy. Second, zinc is a natural, abundant element. Third, the galvanizing process itself generates minimal waste; any excess zinc drippings are collected and reused. Finally, at the end of its long life, both the steel and the zinc coating are 100% recyclable without loss of properties.
Advantages and Limitations
Galvanizing is an excellent solution, but it's not perfect for every single situation. Here’s a balanced view.
| Advantages (The Pros) | Limitations (The Cons) |
|---|---|
|
|
Footnote
[1] Electrochemical Series: A list of metals arranged in order of their standard electrode potentials, showing their tendency to lose electrons (oxidize). Zinc is above iron, meaning it is more reactive and will oxidize (corrode) more readily.
[2] Anode: The electrode where oxidation (loss of electrons) occurs. In a galvanic cell protecting iron, the zinc acts as the anode and corrodes.
[3] Cathode: The electrode where reduction (gain of electrons) occurs. In a galvanic cell, the protected iron acts as the cathode.
[4] Mill Scale: A bluish-black oxide layer that forms on hot steel surfaces during rolling or forging in a steel mill. It must be removed for proper galvanizing adhesion.
