Sampling Rate: Capturing the Waves of Sound
What is a Sound Wave?
To understand sampling, we must first understand what we are sampling. Sound travels as a wave through the air. Imagine throwing a pebble into a still pond. Ripples move outward from the point of impact. These ripples have crests (high points) and troughs (low points). A sound wave is similar; it is a continuous change in air pressure.
This continuous wave can be visualized on a graph. The vertical axis represents air pressure (or amplitude), and the horizontal axis represents time. A smooth, curving line moves up and down as time passes. This is an analog signal – it is continuous and unbroken, just like the original sound in the real world.
Two key properties define a sound wave:
- Frequency: How many complete wave cycles occur in one second. We perceive this as pitch. A high-frequency wave creates a high-pitched sound (like a whistle), and a low-frequency wave creates a low-pitched sound (like a drum). Frequency is measured in Hertz (Hz). 1 Hz means one cycle per second.
- Amplitude: The height (or intensity) of the wave. We perceive this as loudness. A wave with greater amplitude sounds louder.
The Need for Digital: From Continuous to Discrete
Computers and digital devices don't understand smooth, continuous curves. They only understand numbers – specifically, binary digits (bits), which are 1s and 0s. To store, process, or transmit sound with a computer, we must convert the continuous analog wave into a list of discrete numbers. This process is called Analog-to-Digital Conversion (ADC)1.
Think of it like creating a flipbook animation. A smooth motion is broken down into a series of still pictures (frames). When you flip through the pages quickly, your brain puts the pictures together to see motion. In digital audio, we break the continuous sound wave into a series of individual samples. When these samples are played back in rapid succession, our ears hear it as a continuous sound.
Defining Sampling Rate and its Measurement

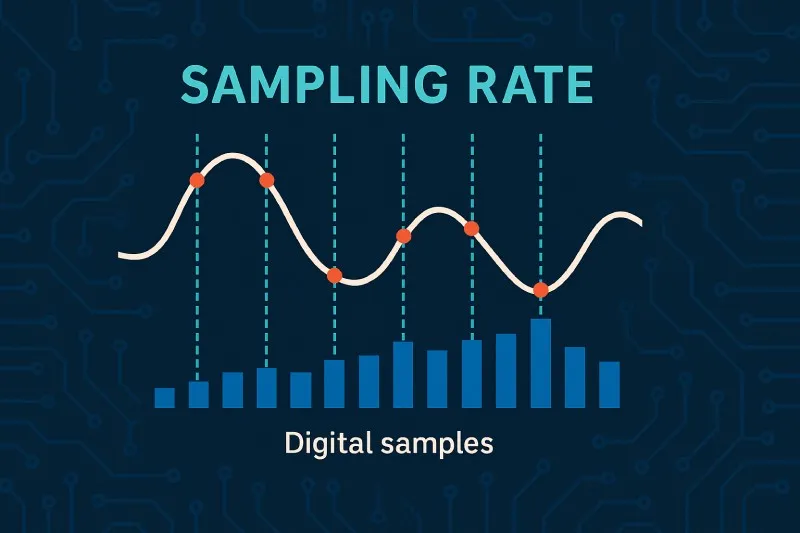

The Sampling Rate, also called Sample Rate, is precisely the speed at which we take these "snapshots" of the sound wave. It is defined as:
It is measured in Hertz (Hz) or more commonly kilohertz (kHz), where 1 kHz = 1,000 Hz.
Example: The standard sampling rate for audio CDs is 44,100 Hz (or 44.1 kHz). This means that to create one second of CD-quality digital audio, the original analog wave is measured 44,100 times. Each measurement produces a number representing the wave's amplitude at that exact moment.
The Nyquist-Shannon Theorem: The Golden Rule
You might think: "The more samples we take, the better!" And you'd be right, but there's a scientific limit to how many we need to take. This is defined by a foundational principle called the Nyquist-Shannon Sampling Theorem.
In simple terms, the theorem states:
To perfectly reconstruct an analog signal from its digital samples, you must sample at a rate at least twice the highest frequency present in the original signal.
This minimum required rate is called the Nyquist Rate. The highest frequency that can be accurately represented is called the Nyquist Frequency, and it is exactly half of the sampling rate.
Rule: To capture a sound of frequency $(f)$, you need $f_s > 2f$.
Why is this rule so important? If you don't sample fast enough (i.e., below the Nyquist rate), you encounter a problem called Aliasing. Aliasing creates false, low-frequency sounds that were not in the original recording, causing distortion and a "warbly" sound. It's like a stroboscope effect for sound. All professional audio equipment uses anti-aliasing filters to remove frequencies above the Nyquist frequency before sampling to prevent this.
Common Sampling Rates and Their Uses
Different sampling rates are used for different applications, balancing audio quality with file size and processing power. Here is a comparative table:
| Sampling Rate | Nyquist Frequency | Common Applications | Explanation |
|---|---|---|---|
| 8 kHz | 4 kHz | Telephone, VoIP, low-quality voice memos. | Adequate for human speech (which concentrates below 4 kHz), resulting in small file sizes. |
| 44.1 kHz | 22.05 kHz | Audio CDs, streaming music, most consumer audio. | The gold standard. It exceeds twice the 20 kHz upper limit of human hearing, ensuring all audible frequencies are captured. |
| 48 kHz | 24 kHz | Professional video, DVD, digital television, film. | Slightly higher than CD quality, chosen for better synchronization with video frame rates. |
| 96 kHz / 192 kHz | 48 kHz / 96 kHz | High-resolution audio, professional music recording and mastering. | Captures frequencies far beyond human hearing. While we can't hear these ultrasonic frequencies directly, some argue they affect the character of audible sounds and provide more "headroom" for processing. |
Sampling Rate vs. Bit Depth: Two Sides of Digital Audio
Sampling rate is often mentioned alongside another crucial parameter: Bit Depth. While they work together, they control different aspects of the digitization process.
- Sampling Rate controls how often you measure the wave (horizontal/time axis precision). It determines the highest frequency you can capture.
- Bit Depth controls how precisely you measure the wave's amplitude each time (vertical/amplitude axis precision). It determines the dynamic range and noise floor. Common bit depths are 16-bit (CDs) and 24-bit (professional audio).
An analogy: Imagine drawing the path of a bouncing ball on graph paper. The sampling rate is how close together you place your dots along the time line. The bit depth is the number of horizontal lines on the graph paper that you can use to mark the ball's height. More lines (higher bit depth) let you record the height more accurately.
Practical Example: From Whistle to WAV File
Let's follow the journey of a simple, pure-tone whistle at 1,000 Hz (1 kHz).
- Analog Signal: The whistle produces a smooth, sine-wave-shaped pressure wave that reaches a microphone.
- Setting the Sampling Rate: Our ADC is set to 44,100 Hz. According to Nyquist, the highest frequency we can capture is 44,100 / 2 = 22,050 Hz. Our 1 kHz whistle is well within this limit.
- Sampling: Every 1/44,100 of a second (~0.0000227 seconds), the ADC measures the amplitude of the whistle wave. In one second, it takes 44,100 measurements.
- Quantization (Bit Depth): Each amplitude measurement is rounded to the nearest value allowed by the bit depth (e.g., 65,536 possible values for 16-bit).
- Digital File: This long list of numbers, along with the information about the sampling rate and bit depth, is saved as a digital audio file (like a WAV or MP3).
- Playback: During playback, a Digital-to-Analog Converter (DAC)2 reads the numbers at the exact same rate (44,100 per second) and uses them to reconstruct a new analog wave for your speakers, which your ears perceive as the original whistle.
Visualizing the Impact of Different Sampling Rates
The diagrams below, described in words, show how sampling rate affects the digital representation of a wave. Imagine a simple sine wave.
- Very Low Sampling Rate (e.g., 2x the wave's frequency): The wave is sampled only at its peaks and troughs. The resulting digital "staircase" is a very crude and blocky approximation of the original smooth curve. When played back, it may sound distorted and robotic.
- Moderate Sampling Rate (e.g., 8x the wave's frequency): More points are captured along the wave's path. The digital representation starts to look much more like the original smooth curve, leading to a clearer, more accurate sound.
- High Sampling Rate (e.g., 44x the wave's frequency): The sampled points are so close together that the reconstructed line is virtually indistinguishable from the original analog wave. The sound is faithful to the source.
Important Questions About Sampling Rate
Q1: If human hearing tops out at around 20 kHz, why do we need sampling rates higher than 40 kHz (like 96 kHz)?
There are a few reasons. First, anti-aliasing filters are not perfect "brick walls." They need a little extra space, or a "transition band," to smoothly filter out frequencies above the Nyquist frequency without affecting those below it. A higher sampling rate provides this space. Second, in professional recording and mixing, higher rates can provide more data for digital signal processing (like equalization or time-stretching) without introducing artifacts. Finally, some believe that ultrasonic frequencies, while inaudible themselves, can interact to produce subtle effects within the audible range.
Q2: Does a higher sampling rate always mean a significantly larger file size?
Yes, directly increasing the sampling rate increases file size proportionally, if the bit depth and other factors remain the same. Doubling the sampling rate from 44.1 kHz to 88.2 kHz doubles the number of samples per second, thus doubling the raw data. However, modern audio compression formats (like MP3, AAC, or Opus) are very efficient at reducing file size. They use psychoacoustic models to remove data that is less perceptible, so the final compressed file size difference between a 44.1 kHz and a 96 kHz recording may be less dramatic than you think, though the higher rate file will still be larger.
Q3: Can you hear the difference between 44.1 kHz and 48 kHz?
For the vast majority of people, in a blind listening test with normal music, the answer is no. Both rates capture the full spectrum of human hearing. The difference in their Nyquist frequencies (22.05 kHz vs. 24 kHz) is in the ultrasonic range. The choice between them is usually based on technical compatibility with video formats or specific professional workflows, not on perceived audio quality for the end listener.
Conclusion
Footnote
1 ADC (Analog-to-Digital Converter): An electronic circuit that converts a continuous analog signal (like voltage from a microphone) into a discrete digital signal (a stream of numbers).
2 DAC (Digital-to-Analog Converter): The complementary circuit to an ADC. It converts a stream of digital numbers back into a continuous analog signal suitable for amplifiers and speakers.
3 Aliasing: A distortion effect that occurs when a signal is sampled at a rate lower than twice its highest frequency. It causes high frequencies to be misrepresented as lower, false frequencies in the digital recording.
4 Hertz (Hz): The unit of frequency, defined as one cycle per second. Named after the physicist Heinrich Hertz.
