Network Topology: Mapping the Blueprint of Connections
Fundamental Building Blocks: Nodes and Links
To understand topology, we first need to know its basic components. In any network, a node is a connection point. In a computer network, a node can be a computer, a printer, a server, a switch, or a router. In a social network, a node is a person. In a transportation network, a node could be a train station or an airport.
A link (or connection) is the communication pathway between two nodes. This can be a physical cable, a Wi-Fi1 signal, a road, or even a friendship. The arrangement of these nodes and links is what we call the network topology. It answers the question: "How is everything wired together?"
Think of it like planning a neighborhood. The nodes are the houses. The links are the streets. Will you build one long street with houses on it (a bus)? Will you build a central roundabout with streets branching off to each house (a star)? Or will you connect every house directly to every other house with a private road (a mesh)? Each choice has big consequences for traffic, cost, and what happens if a road is closed.

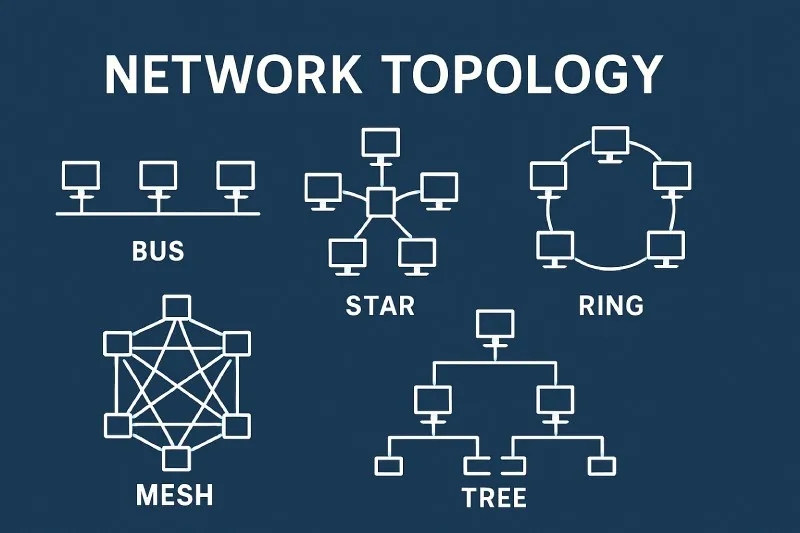

Core Topology Models: From Simple to Complex
There are several classic network topology models. Each has its own strengths, weaknesses, and best-use scenarios. Let's explore the most common ones.
| Topology | How It Works | Pros | Cons | Real-World Example |
|---|---|---|---|---|
| Bus | All nodes are connected to a single central cable (the backbone). Data travels the length of the cable, and each node picks up data meant for it. | Simple, low cost, easy to set up for small networks. | A break in the main cable brings down the whole network. Performance degrades with many nodes. Data collisions are common. | Old Ethernet networks using coaxial cable; a string of holiday lights where one broken bulb can stop the whole string. |
| Star | Every node is connected directly to a central device (hub or switch). All communication passes through this center. | Easy to install and manage. Failure of one node doesn't affect others. Easy to add new nodes. | If the central device fails, the entire network fails. Requires more cable than a bus. | Modern home Wi-Fi networks (router is the center); a classroom where all students raise hands to speak only to the teacher. |
| Ring | Nodes are connected in a closed loop. Data travels in one direction from node to node until it reaches its destination. | Orderly data flow reduces collisions. Equal network access for all nodes. | A single node or cable failure can break the loop and stop the network. Adding/removing nodes disrupts the network. | Some older LAN2 technologies like Token Ring; a circular conveyor belt in a factory. |
| Mesh | Nodes are interconnected with many redundant paths. In a full mesh, every node connects to every other node. | Extremely reliable. If one path fails, data reroutes. High performance with dedicated links. | Very expensive due to high cable count. Complex to set up and manage. | The internet backbone; military communication networks; a group of friends who all have each other's phone numbers. |
| Tree (Hierarchical) | A combination of bus and star topologies. Multiple star networks are connected to a central bus backbone. | Scalable for large networks. Easy to expand by adding new branches. | Relies heavily on the backbone; a failure at a higher level affects all lower levels. | Large corporate networks; cable TV distribution networks. |
Connectivity Formulas: The number of links required varies greatly by topology. For a network with $N$ nodes:
- Full Mesh: Requires $\frac{N(N-1)}{2}$ links. For 5 computers, that's $\frac{5\times4}{2}=10$ cables!
- Star: Only requires $N$ links (one from each node to the center). For 5 computers, that's just 5 cables.
This simple math shows why cost and complexity differ so much.
Hybrid Topologies: The Best of Multiple Worlds
In the real world, networks are rarely purely one type. A hybrid topology combines two or more different basic topologies to leverage their advantages and minimize their disadvantages. This creates a flexible and efficient network design suited to specific needs.
For example, a university campus might use a star-ring hybrid. Individual departments (like Biology or History) have their own star network in their building, with all computers connected to a departmental switch. These departmental switches are then connected in a ring around the campus. This gives each department the easy management of a star, while the ring connection between buildings provides a reliable backbone.
Another very common hybrid is the star-bus (which is essentially the Tree topology). Imagine a school district. Each classroom is a star network centered on a switch. All the switches in one school are connected via a bus (or a better switch) in the school's server room. Then, each school's main server might be connected in a bus or ring to the district's central office. This hierarchical structure allows for centralized control and efficient expansion.
The internet itself is the ultimate hybrid topology. It is a vast, global mesh of networks (called Autonomous Systems3), but within each of those networks, you might find stars, rings, and buses. Your home star network connects to your Internet Service Provider's4 (ISP) network, which is a complex mesh/ring hybrid, which then connects to other global meshes.
Network Topology in Everyday Life
Network topologies aren't just for computers. They are a universal concept for organizing connections. Let's look at some relatable examples.
Transportation Networks: A city's road system is a topology. A long highway with exits is like a bus topology—all traffic shares one main road, and an accident can cause a major jam (network failure). A major airport hub (like Atlanta or Dubai) is a star—most flights go through the central hub to reach their final destination. If the hub closes due to weather, hundreds of flights are canceled. A metro system with multiple interchange stations creates a mesh-like structure, allowing you to reroute if one line is closed.
Social Networks: How you communicate with friends can be mapped as a topology. A group chat where everyone speaks to everyone else is a full mesh. A classroom where students are only allowed to talk to the teacher, who then relays messages, is a strict star (this is inefficient for student-to-student talk!). A rumor being passed from one person to the next in a chain is a linear bus or a ring if it comes back to the start.
Utility Networks: The electrical grid is a hybrid topology. Power plants feed into high-voltage transmission lines (a kind of mesh/bus backbone). These then branch out to substations (a tree structure), which further branch in a star pattern to individual houses. Smart grid designs are incorporating more mesh-like features for better reliability.
Important Questions
Q1: Which topology is best for a network?
There is no single "best" topology. The choice depends on several factors: Cost: A bus is cheapest for a few devices. Reliability: A mesh is most reliable but most expensive. Scalability: Star and tree topologies are easiest to expand. Ease of Setup: Bus and star are simplest. For a small home, a star (Wi-Fi router) is perfect. For a critical banking system, a partial mesh might be necessary. It's always a trade-off.
Q2: Is the Wi-Fi in my home a star or a mesh?
Traditionally, a single Wi-Fi router creates a star topology: all your devices (laptops, phones, tablets) connect wirelessly to the one central router. However, modern "mesh Wi-Fi systems" use a true mesh topology for the Wi-Fi access points themselves. You have a main router and several satellite nodes placed around your house. These nodes communicate with each other using multiple paths to ensure strong coverage everywhere. Your devices still connect in a star pattern to the nearest node, but the backbone between nodes is a mesh.
Q3: How does network topology relate to internet speed and latency?
Topology directly impacts performance. In a bus, all devices share bandwidth, so more devices mean slower speeds for each. In a star, each device has a dedicated link to the switch, preventing that sharing (if the switch is good). Latency (delay) is affected by the number of "hops." A message in a long ring or bus may have to pass through many nodes to reach its destination, increasing latency. In a mesh, data can take the most direct, shortest path, potentially lowering latency. The internet's hybrid mesh design helps keep global latency as low as possible by providing alternative routes.
Footnote
[1] Wi-Fi: A family of wireless networking protocols, based on the IEEE 802.11 standard, used for local area networking and internet access.
[2] LAN (Local Area Network): A computer network that interconnects computers within a limited area such as a residence, school, or office building.
[3] Autonomous System (AS): A very large network or group of networks that has a unified routing policy and is managed by a single organization (e.g., an ISP, a large company).
[4] ISP (Internet Service Provider): A company that provides customers with access to the internet.
[5] IoT (Internet of Things): The network of physical objects ("things") embedded with sensors, software, and other technologies to connect and exchange data with other devices and systems over the internet.
