Bus Topology: The Original Network Highway
The Anatomy of a Bus Network

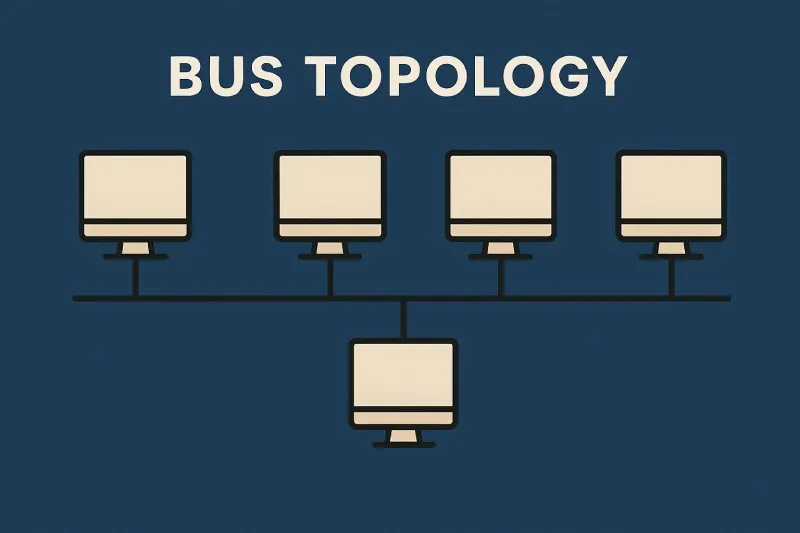

At its core, a bus topology is a linear network architecture. The primary component is a single, continuous length of cable (the bus) that serves as the shared communication medium for all nodes[1]. Each device on the network, whether it's a computer, printer, or server, connects to this central cable via an interface connector called a T-connector or a tap. The cable itself has two distinct ends, and each end must be closed with a special component called a terminator.
The shared nature of the bus means that only one device can successfully transmit data at a time. When a device sends a message, the electrical signal travels in both directions along the backbone from the point of connection. All other devices on the bus "see" the data, but only the device with the matching destination address[2] actually accepts and processes it. This method is known as broadcast transmission.
How Data Travels: Avoiding Traffic Jams
Since all devices share one cable, rules are needed to prevent chaos. The primary problem is a data collision, which occurs when two or more devices attempt to transmit data onto the bus at exactly the same time. The signals physically overlap, becoming garbled and useless.
To manage this, bus networks historically used a protocol called Carrier Sense Multiple Access with Collision Detection (CSMA/CD). Let's decode this:
- Carrier Sense (CS): A device "listens" to the bus to check if it's idle (silent) before transmitting.
- Multiple Access (MA): Many devices have access to the same medium.
- Collision Detection (CD): If two devices start transmitting simultaneously and a collision occurs, they detect it, stop, wait for a random amount of time, and then retry.
This process can be modeled with a simple probability. If many devices try to talk, the chance of collision $P_{collision}$ increases, slowing the network down. The efficiency of the bus is highly dependent on the number of active nodes and the volume of traffic.
| Feature | Description | Analogy |
|---|---|---|
| Backbone Cable | The single, central coaxial or twisted-pair cable that carries all data. | A main street or a shared water pipe. |
| Terminators | Resistors at both ends of the bus that absorb signals to prevent echoes. | Shock absorbers at the end of a train track. |
| Node Connection | Devices attach via T-connectors or taps without breaking the cable. | Houses connecting to a main water line with a T-shaped pipe. |
| Signal Propagation | Data travels in both directions from the source to all nodes. | Announcement over a school's public address system. |
| Single Point of Failure | A break in the main cable disrupts the entire network. | A blocked main road stops all traffic on that street. |
Weighing the Pros and Cons
Bus topology offers a mix of simplicity and limitations that defined its use cases.
Advantages:
- Cost-Effective: It uses less cable than a star topology[3] and requires minimal hardware. There's no need for an expensive central device like a switch.
- Simple to Install: For a small number of devices, it's easy to set up. You just run a single cable and attach devices along its length.
- Easy to Extend: Adding a new device is straightforward—you can attach it anywhere along the bus without disrupting the existing network.
Disadvantages:
- Network Downtime from a Single Break: This is the biggest flaw. If the backbone cable is damaged or severed at any point, all network communication stops. The two segments on either side of the break are also left without terminators, causing signal reflection issues.
- Performance Degrades with Traffic: As more devices are added and more data is sent, collisions become frequent. The network spends more time resolving collisions and less time transmitting useful data. The overall throughput can be represented as decreasing with increased load $L$: $Throughput \propto \frac{1}{L}$.
- Difficult Troubleshooting: Isolating a problem can be hard. A faulty network interface card[4] in one computer might generate constant noise (a "chatter") that jams the bus for everyone, but finding that one device requires checking each one individually.
- Limited Cable Length and Nodes: Due to signal attenuation[5], there's a maximum length for the bus (e.g., 185 meters for older ThinNet coaxial cable). Also, there is a practical limit to how many devices can be connected before performance becomes unacceptable.
A Practical Example: The Classroom Network of the 1990s
Let's visualize a real-world application. In a 1990s school computer lab, ten computers and a shared printer were networked using a bus topology. A single, long coaxial cable snaked around the room, tucked along the walls. Each computer had a network interface card with a T-connector. One end of the cable plugged into the card, and the other end continued to the next computer, forming a daisy chain. The cable started at the first computer and ended at the printer, with a terminator on the printer's free port.
When Student A wanted to print a document, their computer would listen to the bus. If quiet, it would transmit the print job. The signal would travel past every other computer. The printer, recognizing its own address, would accept the data and start printing. Meanwhile, if Student B tried to save a file to the server at the exact same moment, a collision would occur. Both computers would detect it, stop, wait for random times (say, 0.3 milliseconds and 0.7 milliseconds), and then Student B's computer would retry first, succeeding.
The vulnerability was clear: if the cable was accidentally unplugged from the wall behind computer #5, the entire lab lost network access. The segment from computers 1-4 and the segment from 6-10 were both rendered inoperative because the single, shared communication pathway was broken.
Important Questions
Q1: Is bus topology still used in modern networks?
A: Pure bus topology is rarely used in new wired local area network (LAN)[6] installations today. It has been overwhelmingly replaced by star topology, which uses a central switch and is more robust and performant. However, the conceptual principle of a shared bus lives on in other forms. For example, early Ethernet (10BASE2, 10BASE5) used a physical bus. Some industrial control networks and legacy systems might still use it. Furthermore, wireless networks (Wi-Fi) conceptually operate like a bus—all devices share the same radio frequency "air" medium, requiring protocols similar to CSMA/CD to avoid collisions.
Q2: What happens if a terminator is missing from one end of the bus cable?
A: If a terminator is missing, signal reflection occurs. Electrical signals sent by devices will bounce off the open end of the cable and travel back, colliding with new signals being sent. This causes significant data corruption, resulting in massive numbers of collisions, retransmissions, and extremely slow or completely non-functional network performance. It's a common installation mistake that can be hard to diagnose for a beginner.
Q3: How does bus topology compare to a daisy chain?
A: They are similar but have a key difference. In a bus topology, the main cable is continuous, and devices tap into it without breaking the line. In a simple daisy chain, devices are connected in series, where the cable goes from Device A to B, then from B to C, and so on. A break between B and C in a daisy chain would isolate C and beyond, while A and B might still communicate. In a classic bus, any break typically affects communication across all devices because it disrupts the single shared medium and removes termination.
Conclusion
Bus topology stands as a historical and educational pillar in networking. Its elegant simplicity—a single shared highway for data—perfectly illustrates fundamental concepts like broadcast communication, collision management, and shared medium limitations. While its practical use in new wired networks has faded due to its critical single point of failure and performance issues, understanding it is essential. It provides the foundation upon which more complex and reliable topologies were developed. By studying the bus, we appreciate the evolution of network design and grasp why modern networks are built the way they are. It reminds us that in technology, even simple designs teach profound lessons about efficiency, reliability, and scalability.
Footnote
[1] Node: Any active electronic device (computer, printer, switch) attached to a network.
[2] Destination Address: A unique identifier, like a Media Access Control (MAC) address, assigned to each network interface.
[3] Star Topology: A network layout where each device is connected to a central hub or switch via its own dedicated cable.
[4] Network Interface Card (NIC): A hardware component that connects a computer to a network.
[5] Signal Attenuation: The loss of signal strength as it travels over distance, which can make data unreadable.
[6] Local Area Network (LAN): A network that connects computers within a limited area like a home, school, or office building.
