The Twisted Pair Cable: The Invisible Shield of Your Internet
The Core Principle: Why Twisting Wires Works
Imagine you are trying to have a quiet conversation with a friend in a very noisy room. The noise makes it hard to hear each other. Electrical signals traveling through a wire face a similar challenge. Whenever an electric current flows, it creates a small, invisible magnetic field around the wire. This is a fundamental principle of electromagnetism. Now, if you have two parallel wires running next to each other, the magnetic field from one wire can induce2 an unwanted current or voltage in the neighboring wire. This is called crosstalk3 – your conversation on one wire gets mixed up with the conversation on the other wire. Furthermore, external sources like power lines, motors, or even fluorescent lights create electromagnetic fields that can invade the cable and corrupt the data signals. This entire family of problems is known as electromagnetic interference (EMI).
The twisted pair elegantly solves this. By twisting the two wires of a pair together, each wire constantly changes its physical position relative to any source of interference. At one point, Wire A is closer to the noise source; half a twist later, Wire B is closer. This means any interfering signal (or crosstalk from a neighboring pair) is picked up almost identically by both wires in the pair. The key trick happens at the receiving end. The receiving circuit is designed to look only at the difference between the signals on the two wires. Since the noise is common to both, it appears as an identical voltage on each wire. The difference between two identical noises is zero!
This method is formally called balanced transmission and common-mode rejection. The wanted data is sent as opposite signals on each wire (one positive, one negative), while the unwanted noise appears as the same signal on both. Mathematically, if the signal on Wire 1 is $+V_{data} + V_{noise}$ and on Wire 2 is $-V_{data} + V_{noise}$, the receiver calculates:
$(+V_{data} + V_{noise}) - (-V_{data} + V_{noise}) = 2V_{data}$
The $V_{noise}$ terms cancel out perfectly, leaving only the amplified data signal. The tighter and more consistent the twist, the better this cancellation works.
Anatomy of a Cable: Pairs, Categories, and Shields

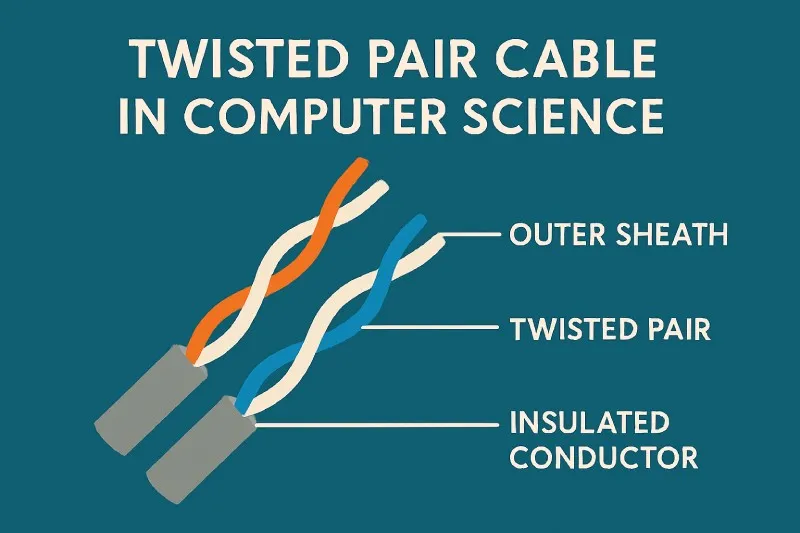

A single twisted pair is rarely used alone. Most cables contain multiple pairs bundled together inside one outer jacket. Common configurations are 2-, 4-, or 25-pair cables. To prevent crosstalk between the pairs themselves, each pair within the cable is twisted at a unique twist rate (the number of twists per meter). This ensures that no two pairs are physically aligned for long, constantly changing which pair is closer to another and averaging out interference.
| Category (Cat) | Max Frequency/Bandwidth | Typical Use & Data Rate | Shielding Type |
|---|---|---|---|
| Cat 5e | 100 MHz | Fast Ethernet (100 Mbps), Gigabit Ethernet (1 Gbps) | UTP (Unshielded) most common |
| Cat 6 | 250 MHz | Gigabit Ethernet, 10-Gigabit Ethernet (up to 55 m) | UTP or STP (Shielded) |
| Cat 6A | 500 MHz | 10-Gigabit Ethernet (up to 100 m) | Often uses heavier shielding (U/FTP, F/UTP) |
| Cat 7/7A | 600 / 1000 MHz | High-speed data centers, industrial applications | Fully shielded (S/FTP) each pair + overall shield |
Shielding is another critical layer of defense. Not all twisted pair cables are shielded. The main types are:
UTP (Unshielded Twisted Pair): This is the most common type found in homes and offices. It relies solely on the twist for noise cancellation. It's flexible, inexpensive, and perfect for environments with moderate electrical noise.
STP (Shielded Twisted Pair): This cable adds a metallic shield (like foil) around each pair or around all pairs collectively. This shield acts as a barrier, blocking external EMI from reaching the wires. It is used in electrically noisy environments like industrial floors or near heavy machinery. The shield must be properly grounded to work effectively.
The abbreviations can get detailed: U/UTP means unshielded overall, unshielded pairs (just UTP). F/UTP means Foil shield overall, Unshielded pairs. S/FTP means braided Screen overall, Foil shielded individual Twisted Pairs.
From Your Home to the World: Practical Applications
Twisted pair cables are the unsung heroes of our connected lives. Let's trace a typical online activity. When you click a link on your laptop, the data travels through a short Ethernet cable (likely Cat 5e or Cat 6 UTP) to your home router. This cable delivers gigabit-speed internet reliably, unaffected by the minor EMI from your lamp or phone charger.
From the router, the signal may travel through the walls of your house via longer Ethernet cables to a desktop computer or a smart TV. These in-wall cables must meet building safety codes and are often bundled with power lines inside conduits. The twisting and potential shielding prevent the 120V or 240V AC power from scrambling your video stream.
On a larger scale, telephone companies for decades used vast networks of bundled twisted pair cables (containing hundreds of pairs) to connect every home to the central office. This infrastructure, known as the Plain Old Telephone Service (POTS)4, was later adapted for DSL5 internet, which sends high-frequency data over the same copper pairs designed for voice. The precise engineering of twist rates in these massive cables was essential to making DSL possible.
In modern Local Area Networks (LANs) within schools, offices, and data centers, higher-category twisted pair cables (Cat 6A, Cat 7) form the backbone, connecting servers, switches, and routers. In factories, shielded twisted pair cables connect programmable logic controllers, sensors, and robots, ensuring signals are not corrupted by the intense EMI from large motors and welding equipment.
Important Questions Answered
Q1: If twisting wires is so good, why do we need fiber optic cables?
Twisted pair cables have physical limits. As the signal frequency (and thus data speed) increases, the copper wires act more like antennas, radiating energy and suffering more loss over distance. This is called attenuation. For extremely high speeds (like 100 Gbps) over long distances (kilometers), fiber optic cables, which use light and are immune to EMI, are far superior. However, twisted pair remains king for short-distance, cost-effective connections (like in your room or office building) because it's cheap, easy to install, and compatible with a vast installed base of equipment.
Q2: Can I see the twist rate, and does a tighter twist mean a better cable?
Yes, if you cut a cable and strip the outer jacket, you can visually count the twists per inch on different pairs—they will vary. A tighter twist generally provides better noise cancellation for that specific pair, but it's not the only factor. The consistency of the twist, the quality of the copper, and the insulation material are equally important. Different categories of cable use precisely engineered twist rates optimized for the frequencies they carry. Arbitrarily twisting wires more tightly could increase manufacturing cost and cable stiffness without providing a needed benefit.
Q3: Why are there exactly two wires twisted together? Why not three or four?
The two-wire system is the minimum required for balanced differential signaling. One wire carries the positive version of the signal, the other carries the negative (inverted) version. This symmetry is what allows the receiver to subtract one from the other to cancel noise and recover the signal. Adding more wires in a single "pair" would break this simple, elegant, and effective differential system. However, a single cable contains multiple independent pairs (like 4 pairs for Ethernet), each handling a different channel of data.
Footnote
1 Electromagnetic Interference (EMI): Disturbance generated by an external source that affects an electrical circuit by electromagnetic induction, electrostatic coupling, or conduction.
2 Induce: To produce or cause something, especially an electric current or voltage, by electromagnetic induction.
3 Crosstalk: Unwanted transfer of signals between communication channels, such as hearing another conversation on your telephone line.
4 Plain Old Telephone Service (POTS): The traditional analog telephone service implemented over twisted pair cables.
5 DSL (Digital Subscriber Line): A family of technologies used to provide internet access by transmitting digital data over the twisted pair cables of a telephone network.
