Stereoisomerism: Molecules with a Twist
The Foundation: What Are Isomers?
Before diving into stereoisomerism, it's important to understand isomers in general. Isomers are compounds that have the same molecular formula but different arrangements of atoms. Think of them as different "versions" of the same basic chemical recipe. Isomers are broadly divided into two main categories:
| Isomer Type | Description | Key Difference |
|---|---|---|
| Structural Isomers | Atoms are connected in a different order. They have different bond connections. | The sequence of atoms. |
| Stereoisomers | Atoms are connected in the same order, but are arranged differently in space. | The spatial arrangement of atoms. |
A simple analogy is with building blocks. If you have red and blue blocks, structural isomers are like building a tower versus a wall. Stereoisomers are like building two identical towers, but one has a blue block facing forward and the other has a red block facing forward. The connections are the same, but the look from a certain angle is different.
The Two Main Families of Stereoisomers
Stereoisomers themselves can be classified into two primary families: enantiomers and diastereomers. The key to telling them apart is understanding the concept of a chiral center.

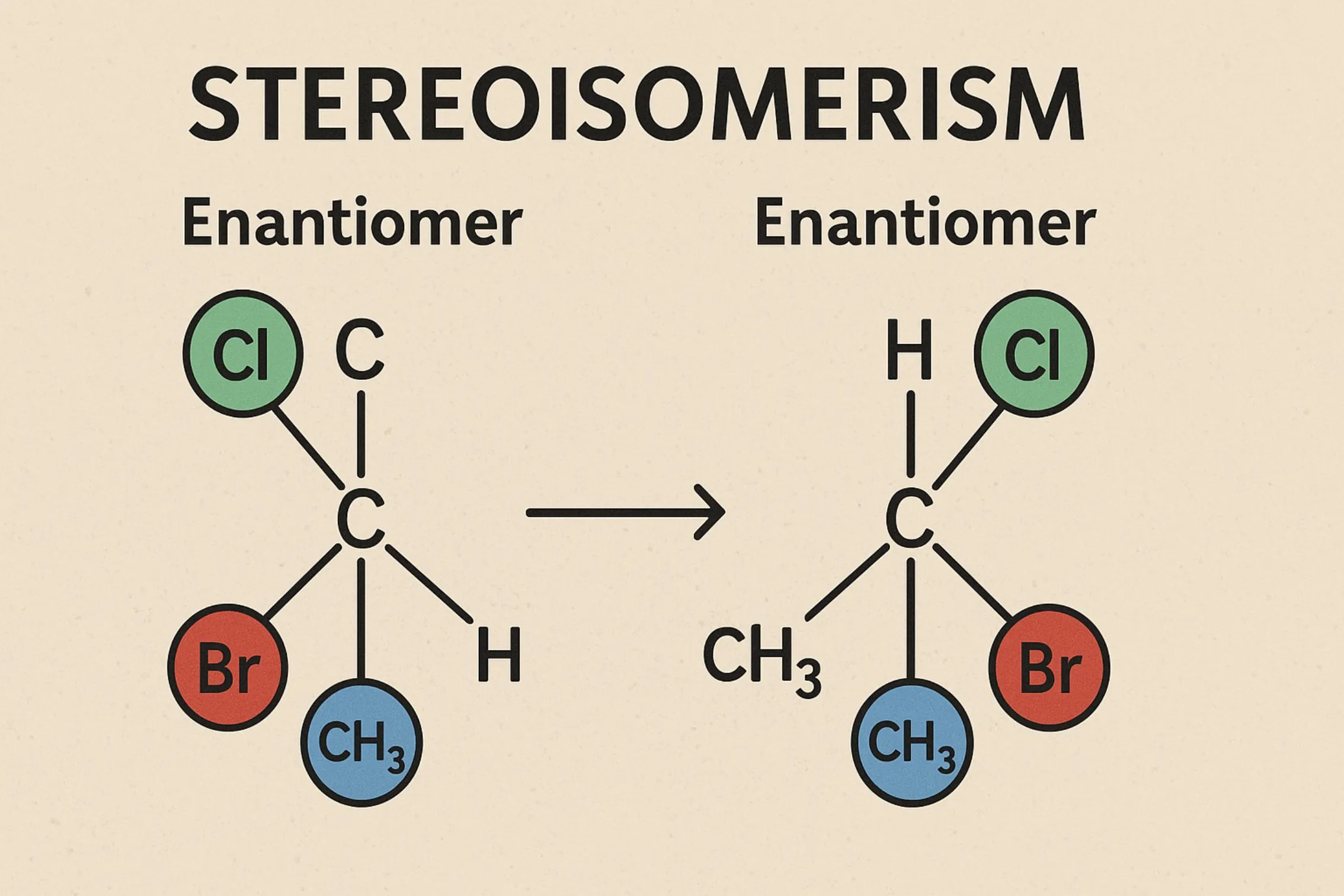

1. Enantiomers: Mirror Images
Enantiomers are stereoisomers that are non-superimposable mirror images of each other. The best analogy for enantiomers is your own hands. Your left and right hands are mirror images, but you cannot rotate your left hand to make it look exactly like your right hand. They are not the same.
A molecule must be chiral (from the Greek word for hand, cheir) to have enantiomers. A classic example is the lactic acid molecule $C_3H_6O_3$. The central carbon is bonded to a $H$, an $OH$, a $CH_3$, and a $COOH$ group. Since all four groups are different, the carbon is a chiral center, and two enantiomers of lactic acid exist.
2. Diastereomers: Non-Mirror Images
Diastereomers are stereoisomers that are not mirror images of each other. This category includes several types, with geometric isomers being the most common for students to learn first. Geometric isomerism often occurs in molecules with restricted rotation, most famously in compounds with a carbon-carbon double bond $C=C$ or in rings.
For a simple alkene like $C_2H_2Cl_2$, two geometric isomers are possible:
- Cis-isomer: The two chlorine atoms are on the same side of the double bond.
- Trans-isomer: The two chlorine atoms are on opposite sides of the double bond.
These two forms are diastereomers of each other. They have different physical properties, such as boiling point and polarity.
Stereoisomerism in Everyday Life and Medicine
The spatial arrangement of atoms is not just a theoretical concept; it has profound real-world implications, especially in biology and pharmacology. Our bodies are made of chiral molecules, such as amino acids and sugars, and the biological machinery (like enzymes and receptors) that interacts with them is also chiral. This means our bodies can easily tell the difference between enantiomers.
| Molecule | Stereoisomerism Type | Effect |
|---|---|---|
| Limonene | Enantiomers | One enantiomer smells like oranges, the other like lemons. |
| Thalidomide | Enantiomers | One enantiomer was a sedative, the other caused severe birth defects. This tragic case highlights the importance of stereochemistry in drug design. |
| Carvone | Enantiomers | One enantiomer smells like spearmint, the other like caraway seeds. |
| 2-Butene $C_4H_8$ | Geometric Isomers (Diastereomers) | The cis-isomer has a higher boiling point than the trans-isomer due to differences in molecular shape and packing. |
Important Questions
Q: How can I quickly tell if a molecule has a chiral center?
Look for a carbon atom (this is usually the case) that is bonded to four different "things." These "things" can be atoms or groups of atoms. If you find a carbon with four different substituents, you have found a chiral center, and the molecule is likely to have enantiomers.
Q: What is the difference between a chiral molecule and an achiral molecule?
A chiral molecule is one that is not superimposable on its mirror image, like your left and right hands. An achiral molecule is one that is superimposable on its mirror image. A simple test for achirality is to look for a plane of symmetry[1]. If you can draw an imaginary plane that cuts the molecule into two mirror-image halves, the molecule is achiral.
Q: Why do enantiomers have the same physical properties (like boiling point) but different biological properties?
The physical properties of a molecule depend on interactions like van der Waals forces, which are not sensitive to the "handedness" of a molecule. Since enantiomers are mirror images, their overall size and shape are identical in a non-chiral environment, leading to identical physical properties. However, biological systems are full of chiral molecules (receptors, enzymes). A chiral receptor will have a specific shape that might fit one enantiomer perfectly (like a right hand in a right-handed glove) but not the other, leading to different biological responses.
Footnote
[1] Plane of Symmetry: An imaginary plane that cuts a molecule into two halves that are mirror images of each other. The presence of a plane of symmetry usually means the molecule is achiral and will not have enantiomers.
