System Bus: The Central Nervous System of Your Computer
1. What is a System Bus? The Digital Highway

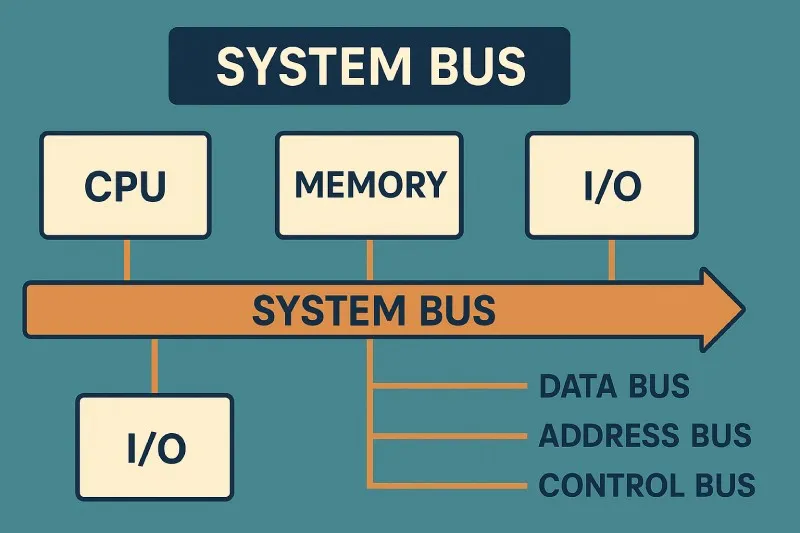

Imagine a busy city. The CPU is the "mayor's office" (the brain), memory (RAM) is the "city library" (where information is stored), and your keyboard or mouse are the "citizens" (Input/Output devices). How does the mayor ask for a book from the library? They need roads and messengers. In a computer, these roads are the system bus. Technically, the system bus is a collection of wires (traces) etched onto the computer's motherboard. All devices are connected to these wires. At any moment, only one device can talk on a wire to avoid chaos, but they all listen. The width of this highway (how many wires are in parallel) determines how much information can be moved at once. For example, a 64-bit data bus has 64 parallel wires, allowing it to transport 64 bits of data simultaneously.
2. The Three Lanes: Address, Data, and Control Buses
The system bus isn't just one bundle of wires doing one job. It is logically divided into three distinct groups, each with a specific purpose. This is like a highway with three separate lanes: one for trucks (data), one for navigation instructions (addresses), and one for police signals (control).
- Address Bus: This is a one-way street from the CPU to memory or I/O devices. The CPU uses it to send the address (a specific location) of the data it wants to read or write. The width of the address bus determines how many memory locations the CPU can access. If the address bus has n wires, the CPU can address 2^n locations. For instance, a CPU with a 32-bit address bus can access 2^32 = 4 GB of memory.
- Data Bus: This is a two-way street that carries the actual data between the CPU, memory, and I/O devices. If the CPU wants to add two numbers, it sends the address of those numbers via the address bus, but the numbers themselves travel on the data bus. A wider data bus (e.g., 64-bit vs. 32-bit) means more data is transferred per trip, making the computer faster.
- Control Bus: This is a two-way street that carries command and synchronization signals. It tells the devices what to do. For example, it carries the "Read" or "Write" signal from the CPU. It also carries "clock" signals to keep everything in sync and "acknowledgment" signals from devices saying, "Data received!".
| Bus Type | Direction | Function | Real-World Example |
|---|---|---|---|
| Address Bus | One-way (CPU → others) | Selects which memory location or device to talk to. | Typing a house number on a GPS. |
| Data Bus | Two-way (CPU ↔ others) | Transfers the actual data (instructions, numbers). | The pizza itself being delivered. |
| Control Bus | Two-way (CPU ↔ others) | Sends commands (Read/Write) and timing signals. | The delivery driver telling you "Sign here." |
3. How Fast is the Bus? Bandwidth and Speed
The performance of a system bus is measured by its bandwidth—the amount of data it can transfer per second. This depends on two factors: its width (how many bits it can carry at once) and its speed (how many times per second it can send a batch of data). You can calculate the maximum bandwidth (in bytes per second) using a simple formula:
For example, a bus with a width of 64 bits running at 100 MHz (100,000,000 cycles/second) has a bandwidth of:
4. Real-Life Example: Typing a Letter
Let's walk through what happens when you press the key 'A' on your keyboard and it appears on the screen. The system bus is the hero behind the scenes.
- Input: You press 'A'. The keyboard controller (an I/O device) sends a signal to the CPU saying, "I have data!". This signal travels on the control bus.
- Asking for the Data: The CPU, via the address bus, sends a request to the specific address of the keyboard.
- Data Transfer: The keyboard sends the scan code for 'A' back to the CPU using the data bus.
- Processing: The CPU figures out that 'A' should be displayed. It now needs to write this to the video memory (a part of RAM dedicated to the screen).
- Sending to Memory: The CPU sends the address of the video memory location via the address bus. It sends a "Write" command via the control bus. Finally, the data for the letter 'A' is sent via the data bus to that memory location.
- Output: The graphics card reads that memory location (again using the bus) and displays 'A' on your monitor.
This entire sequence, involving multiple trips on the three buses, happens in a fraction of a millisecond.
5. Important Questions About the System Bus
A: The system bus connects the core components (CPU and RAM). It is very fast but short-range. Other buses like PCIe[1] (for graphics cards) or USB[2] (for external devices) are extensions. They act like highways that connect to the main system bus, allowing slower or external devices to communicate with the CPU without slowing down the main, super-fast connection between the CPU and RAM.
A: This is called a bottleneck. Imagine a very fast CPU (a genius mayor) connected to a slow system bus (a one-lane road). The CPU can think of things to do faster than the bus can fetch data or instructions from memory. So, the CPU spends a lot of time waiting idle for the bus to deliver information. This is why modern computers have very fast, wide buses (like 64-bit buses running at several GHz) to keep the CPU fed with data.
A: In modern computers, the classic "parallel" system bus is being replaced or supplemented by serial buses (like in Intel's DMI or AMD's Infinity Fabric) that are much faster. Instead of sending 64 bits at once on 64 wires, they send one bit at a time but at an incredibly high speed. However, the logical concept of an address, data, and control pathway remains exactly the same.
The system bus is the fundamental communication backbone of every computer. By understanding that it is divided into the address bus (locating data), the data bus (moving data), and the control bus (managing the operation), we can see how the CPU, memory, and I/O devices work together as one system. The speed and width of this bus are critical factors that determine the overall performance of a computer, ensuring that data flows smoothly without bottlenecks.
Footnote
[1] PCIe (Peripheral Component Interconnect Express): A high-speed serial bus standard used for connecting expansion cards like graphics cards and SSDs.
[2] USB (Universal Serial Bus): An industry standard for connecting peripherals like keyboards, mice, and flash drives to a computer.
