Perpendicular Lines: The Ultimate Guide to Right Angles
What Does Perpendicular Mean?

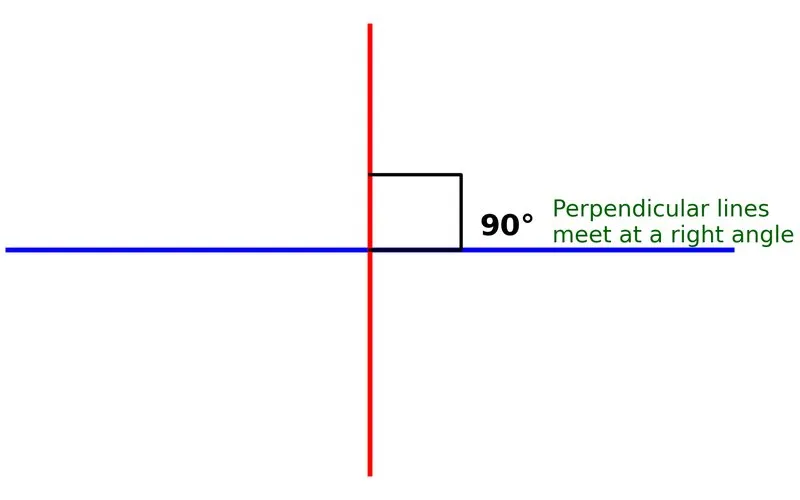

In geometry, two lines are said to be perpendicular if they intersect each other at a 90° angle. This specific angle is called a right angle and is one of the most common and important angles you will encounter. Think of the corner of a piece of paper or a book; that perfect, sharp corner is a right angle formed by two perpendicular lines.
The symbol for perpendicular is $\perp$. So, if line $AB$ is perpendicular to line $CD$, we write it as $AB \perp CD$.
The defining characteristic of perpendicular lines is the angle between them. This angle is always: $90^\circ$. No matter how long the lines are or where they are placed, if the angle at their intersection point is 90°, they are perpendicular.
Properties and Characteristics
Perpendicular lines have several key properties that set them apart from other intersecting lines.
- Right Angle: The most important property is the formation of four right angles at the point of intersection. When two lines cross perpendicularly, they create four 90° angles.
- Reciprocal Slopes: In coordinate geometry, the slopes of two perpendicular lines are negative reciprocals of each other. If the slope of one line is $m$, the slope of a line perpendicular to it is $-\frac{1}{m}$.
- Unique Relationship: For any given line and a point not on that line, there is exactly one line that passes through the point and is perpendicular to the given line. This is a fundamental concept in geometry.
Identifying Perpendicular Lines
You can determine if two lines are perpendicular using different methods depending on the context.
| Method | Description | Example |
|---|---|---|
| Visual Inspection | Using a right angle tool, like a protractor or a set square, to check if the angle is 90°. | Checking the corner of a window frame with a carpenter's square. |
| Slope Calculation | In a coordinate plane, calculating the slopes of the two lines. If the product of their slopes is -1, they are perpendicular. | Line with slope $2$ is perpendicular to a line with slope $-\frac{1}{2}$ because $2 \times (-\frac{1}{2}) = -1$. |
| Geometric Construction | Using a compass and straightedge to construct a perpendicular line from a point to a given line. | Drawing a perpendicular bisector of a line segment. |
Perpendicularity in the Coordinate Plane
In algebra and coordinate geometry, the concept of slope is used to define perpendicularity precisely. The slope of a line measures its steepness. If two lines have slopes $m_1$ and $m_2$, they are perpendicular if and only if $m_1 \times m_2 = -1$. This means one slope is the negative reciprocal of the other.
Example: Consider two lines with equations $y = 3x + 1$ and $y = -\frac{1}{3}x - 4$. The slope of the first line is $3$. The slope of the second line is $-\frac{1}{3}$. Since $3 \times (-\frac{1}{3}) = -1$, the lines are perpendicular. If you graph these lines, you will see they cross at a perfect right angle.
Real-World Applications and Examples
Perpendicular lines are not just abstract mathematical concepts; they are everywhere in our daily lives and in various professions.
- Architecture and Construction: Walls are typically built perpendicular to the floor to ensure stability and proper weight distribution. The corners of rooms, doors, and windows are classic examples of right angles.
- Technology and Design: The screens of our phones, monitors, and TVs are rectangular, with sides that are perpendicular to each other. This standardization is crucial for user experience and manufacturing.
- Road Networks: In many cities, streets are laid out in a grid pattern where north-south roads are perpendicular to east-west roads. This creates city blocks and makes navigation easier.
- Art and Framing: When framing a picture, the frame's corners must be perfect right angles for the picture to hang straight and look correct.
Common Mistakes and Important Questions
Q: Are all intersecting lines perpendicular?
A: No, this is a very common mistake. Lines only become perpendicular when they intersect at exactly 90°. Most lines that cross each other do so at angles other than 90° and are simply called "intersecting lines."
Q: Can curves be perpendicular to lines?
A: Yes, but the definition is slightly different. A curve is said to be perpendicular to a line at their point of intersection if the tangent[1] to the curve at that point is perpendicular to the line. For example, the radius of a circle is perpendicular to the tangent at the point of contact.
Q: What is the difference between perpendicular and parallel?
A: Perpendicular lines intersect at a 90° angle. Parallel lines, on the other hand, are lines in the same plane that never meet, no matter how far they are extended. They always remain the same distance apart and have the same slope.
Perpendicular lines, defined by their classic 90° intersection, are a cornerstone of geometry with profound practical importance. From the foundational grids of our cities to the devices we use every day, the concept of perpendicularity provides structure, stability, and order. Understanding how to identify, construct, and calculate with perpendicular lines is an essential skill in mathematics that bridges the gap between abstract theory and the tangible world around us.
Footnote
[1] Tangent: A straight line that touches a curve at a single point without crossing it. At that point, the tangent line has the same direction as the curve.
