Transversal: The Intersecting Line
The Basic Anatomy of a Transversal System

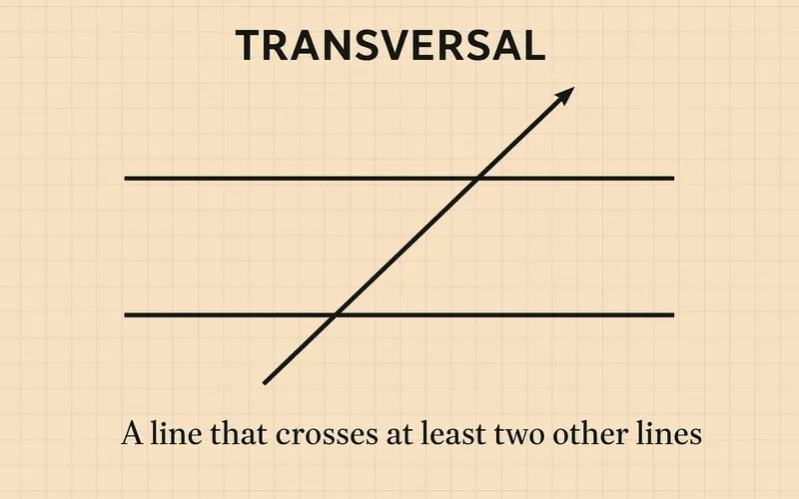

To understand transversals, we first need to visualize the setup. Imagine two or more lines lying on a plane. A transversal is a third line that cuts across them. While a transversal can cross any two lines, the most important and common scenario in geometry involves a transversal crossing two parallel lines. When this happens, predictable and consistent angle relationships are formed.
Let's label the parts of a standard transversal system:
- Transversal (t): The line that crosses the other lines.
- Parallel Lines (l and m): The two lines that are parallel to each other, denoted as $l \parallel m$.
- Intersection Points: The points where the transversal cuts through the parallel lines. This creates eight angles in total.
These eight angles are categorized into different groups based on their positions relative to the parallel lines and the transversal. Recognizing these groups is the first step to mastering transversal problems.
The Special Angle Pairs Created by a Transversal
When a transversal intersects two parallel lines, it creates four pairs of corresponding angles, two pairs of alternate interior angles, and two pairs of consecutive interior angles. The properties of these pairs are the key to solving many geometric puzzles.
| Angle Pair Type | Location Description | Relationship (if lines are parallel) |
|---|---|---|
| Corresponding Angles | On the same side of the transversal and in the same relative position at each intersection. | They are congruent (equal in measure). |
| Alternate Interior Angles | On opposite sides of the transversal and between the two lines. | They are congruent. |
| Alternate Exterior Angles | On opposite sides of the transversal and outside the two lines. | They are congruent. |
| Consecutive Interior Angles (Same-Side Interior) | On the same side of the transversal and between the two lines. | They are supplementary (add up to $180^\circ$). |
Key Formula: For any two parallel lines cut by a transversal:
- Corresponding, Alternate Interior, and Alternate Exterior angles are equal: $a = b$.
- Consecutive Interior angles are supplementary: $c + d = 180^\circ$.
Step-by-Step: Solving for Unknown Angles
Let's apply these rules to a practical example. Imagine two parallel lines cut by a transversal. One angle is given as $65^\circ$. How do we find all the other seven angles?
Step 1: Identify the given angle's relationships. Let's say the given $65^\circ$ angle is in the top-left position (Angle 1). Its corresponding angle (in the same position at the other intersection) will also be $65^\circ$. Its vertical angle (the one directly opposite) will also be $65^\circ$.
Step 2: Use supplementary angles. The angle next to the $65^\circ$ angle on the same straight line (a consecutive interior angle or a linear pair) must be $180^\circ - 65^\circ = 115^\circ$.
Step 3: Propagate the values. Now that you have a $115^\circ$ angle, you can find its corresponding angle, its vertical angle, and so on. By repeating this process using the rules from the table, you can quickly fill in all eight angles. In this case, you will end up with four angles measuring $65^\circ$ and four angles measuring $115^\circ$.
Transversals in the Real World
The concepts of transversals and parallel lines are not confined to textbooks; they are visible all around us. A classic example is a railroad track. The two rails are parallel lines, and the wooden or concrete railroad ties are transversals that cross them. Engineers ensure the ties are perpendicular to the rails, creating consistent right angles and maintaining the parallel nature of the tracks for safe travel.
Another example is a street with parallel curbs and the crosswalk lines painted across it. The curbs represent the parallel lines, and each crosswalk line is a transversal. The angles at which these lines are painted, while often 90 degrees, demonstrate the principle. In architecture, ceiling beams (transversals) often run across parallel support structures, and the angles must be calculated correctly for structural integrity and aesthetic design.
Common Mistakes and Important Questions
Q: Do the two lines crossed by a transversal always have to be parallel for these angle pairs to exist?
A: No, the angle pairs (corresponding, alternate interior, etc.) exist whenever a transversal crosses any two lines. However, the special relationships — congruence and supplementary angles — are only guaranteed when the two lines are parallel. If the lines are not parallel, the angle measures will be different.
Q: What is the most common mistake students make when working with transversals?
A: The most common mistake is misidentifying the type of angle pair. For example, confusing alternate interior angles with consecutive interior angles can lead to using the wrong property (congruence vs. supplementary). Always double-check the location: are the angles on the same side or opposite sides of the transversal? Are they inside or outside the parallel lines?
Q: Can a transversal cross more than two lines?
A: Yes, absolutely. The definition states "at least two other lines." A single line can cut across three, four, or any number of lines. However, the detailed angle relationships we've discussed are typically analyzed one pair of parallel lines at a time within that larger system.
Testing Your Knowledge with a Practical Problem
Consider a scenario where a transversal cuts two parallel lines. You are given that one consecutive interior angle is $4x + 20$ and its partner (the other consecutive interior angle on the same side) is $2x + 40$. What is the value of $x$?
Solution: We know consecutive interior angles are supplementary. Therefore:
$(4x + 20) + (2x + 40) = 180$
$6x + 60 = 180$
$6x = 120$
$x = 20$
By solving this, we find that $x = 20$. You can then plug this value back in to find the actual angle measures: $4(20)+20=100^\circ$ and $2(20)+40=80^\circ$. Notice they add up to $180^\circ$!
Footnote
1 Congruent: In geometry, two figures or angles are said to be congruent if they have the same shape and size. The symbol for congruence is $\cong$.
2 Supplementary Angles: Two angles are supplementary if the sum of their measures is exactly $180^\circ$.
3 Parallel Lines ($\parallel$): Lines in a plane that do not meet; they are always the same distance apart and have the same direction.
