The Invisible Dance of Energy: How Heat Travels Through Solids

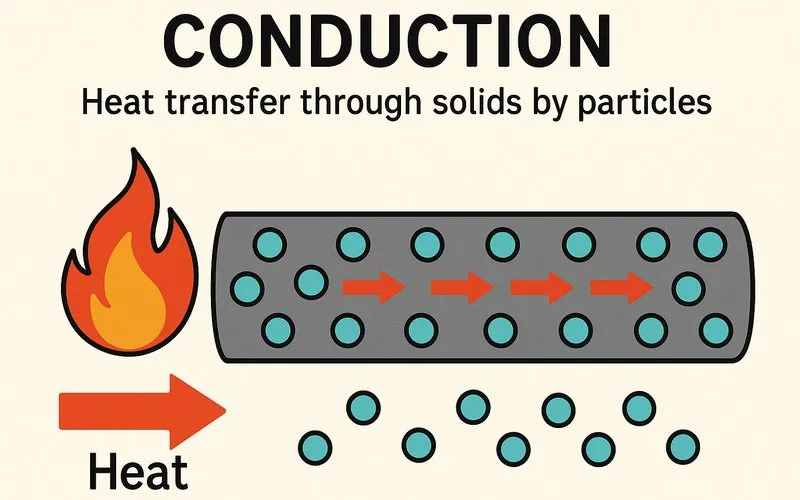

The Microscopic Mechanics of Conduction
At its heart, heat is a form of energy related to the motion of particles. In a solid, atoms, molecules, or ions are locked in a fixed position, but they are not still. They constantly vibrate. The higher the temperature of the solid, the more vigorous these vibrations become. Conduction is the process where this vibrational energy is transferred from a more energetic particle to a less energetic one.
Imagine a line of people standing shoulder to shoulder. If the person at one end starts pushing and shoving vigorously, they will bump into their neighbor, who then starts moving more and bumps into the next person, and so on. The "energy of motion" is transferred down the line, even though no single person travels from one end to the other. This is precisely how atoms transfer thermal energy through a solid via conduction.
In metals, there is a second, even more efficient mechanism: free electrons. Metals have a "sea" of electrons that are not bound to any particular atom and can move freely throughout the material. These highly mobile electrons can carry thermal energy from the hot part of the metal to the cold part much faster than the simple vibration transfer between atoms. This is why metals are generally excellent conductors of heat.
The basic law governing heat conduction is Fourier's Law. It can be simplified for a flat slab as:
$ Q = k \times A \times (T_{hot} - T_{cold}) / d $
Where:
• $ Q $ is the rate of heat transfer (in Joules per second, or Watts).
• $ k $ is the thermal conductivity of the material (a measure of how good a conductor it is).
• $ A $ is the cross-sectional area through which heat is flowing.
• $ T_{hot} - T_{cold} $ is the temperature difference between the two sides.
• $ d $ is the thickness of the material.
Factors That Govern Conductive Heat Flow
The rate at which heat conducts through a material is not the same for all objects. It depends on several key factors, which are neatly summarized in the formula above. Let's explore what these factors mean in practice.
| Factor | Description | Real-World Example |
|---|---|---|
| Thermal Conductivity ($ k $) | An intrinsic property of a material that indicates its ability to conduct heat. A high $ k $ means it's a good conductor. | A metal frying pan (high $ k $) heats evenly, while a wooden cutting board (low $ k $) feels cool to the touch because it doesn't draw heat from your hand. |
| Temperature Difference ($ \Delta T $) | The driving force for heat flow. Heat always flows from high to low temperature. A larger difference means faster flow. | Ice melts much faster in a hot cup of coffee than in a cup of lukewarm water because the temperature difference is greater. |
| Cross-Sectional Area ($ A $) | The size of the "pathway" for heat. A larger area allows more heat to flow per second. | A wide, thick poker left in a fire will get hotter along its length faster than a thin, narrow one. |
| Thickness / Length ($ d $) | The distance the heat must travel. A greater thickness means more resistance to heat flow. | A double-thick oven mitt protects your hand better than a single-thick one because the heat has to conduct through more insulating material. |
Conductors and Insulators in Action
Materials are often categorized based on their thermal conductivity. Conductors have high $ k $ values and are used when efficient heat transfer is desired. Insulators have low $ k $ values and are used to reduce or prevent heat flow.
| Material | Thermal Conductivity (W/m·K) | Application |
|---|---|---|
| Silver | ~420 | High-performance electronics and thermal pastes. |
| Copper | ~400 | Cookware bottoms, heat exchangers, electrical wiring. |
| Aluminum | ~235 | Car radiators, soda cans, window frames. |
| Glass | ~0.8 | Windows (though it still conducts, double-paning with air gaps provides insulation). |
| Wood | ~0.1 | Handles for pots and pans, building materials. |
| Styrofoam | ~0.03 | Coffee cups, coolers, insulation in walls. |
From Kitchen to Cosmos: Conduction in Everyday Life
Conduction is not just a scientific concept; it's a part of our daily experiences. When you cook, you are a master of heat conduction. Using a metal pan ensures even heating because the metal conducts heat rapidly from the stove burner to all parts of the pan's surface. The plastic or wooden handle remains cool because it is a thermal insulator, protecting your hand from the heat conducted through the metal.
In colder climates, building insulation relies on materials with very low thermal conductivity, like fiberglass or foam. These materials are full of tiny air pockets, and air itself is a poor conductor. By trapping the air, the insulation drastically slows down the conduction of heat from the warm inside of your house to the cold outside, saving energy and money.
Even in space technology, conduction is critical. Spacecraft are exposed to extreme temperatures. Engineers use conductive materials to channel heat away from sensitive electronics to radiator panels, and they use highly insulating materials to protect other parts of the craft from the intense cold of space or the heat of the sun.
Common Mistakes and Important Questions
Q: Is heat conduction the same as temperature?
No, this is a common confusion. Temperature is a measure of the average kinetic energy of the particles in a substance. Heat is the total thermal energy being transferred. Conduction is the process of that transfer. For example, the ocean has a vast amount of heat energy, but a cup of hot coffee has a higher temperature. Heat will flow from the coffee to the ocean if they were in contact, even though the ocean has more total heat.
Q: Why does metal feel colder than wood at room temperature?
Both are at the same temperature, but metal is a much better conductor than wood. When you touch the metal, it rapidly conducts heat away from your skin, making your skin feel cold. Wood is a poor conductor, so it draws heat away from your hand much more slowly, and therefore feels closer to your skin's temperature.
Q: Can conduction happen in liquids and gases?
Yes, conduction occurs in all states of matter. However, in fluids (liquids and gases), the primary mode of heat transfer is usually convection, where the heated fluid itself moves and carries the heat with it. Conduction in fluids is generally less efficient than in solids because the particles are farther apart.
Footnote
1 Thermal Conductivity ($ k $): A material property that indicates the quantity of heat that flows per unit time through a unit area with a unit temperature gradient. Measured in Watts per meter-Kelvin (W/m·K).
2 Fourier's Law: The fundamental law of heat conduction, stating that the heat flux (rate of heat transfer per unit area) is proportional to the negative temperature gradient.
3 Kinetic Energy: The energy possessed by an object due to its motion. In the context of heat, it refers to the vibrational energy of atoms and molecules in a substance.
