Thermal Conductors: The Science of Heat Transfer
The Fundamentals of Heat and Conduction
Heat is a form of energy, and it is always on the move. It naturally flows from a warmer area to a cooler area until everything reaches the same temperature, a state called thermal equilibrium. Imagine a hot cup of coffee left on a table. Over time, it cools down because heat energy moves from the hot coffee to the cooler air in the room. This movement of heat can happen in three ways: conduction, convection, and radiation. Our focus is on conduction.

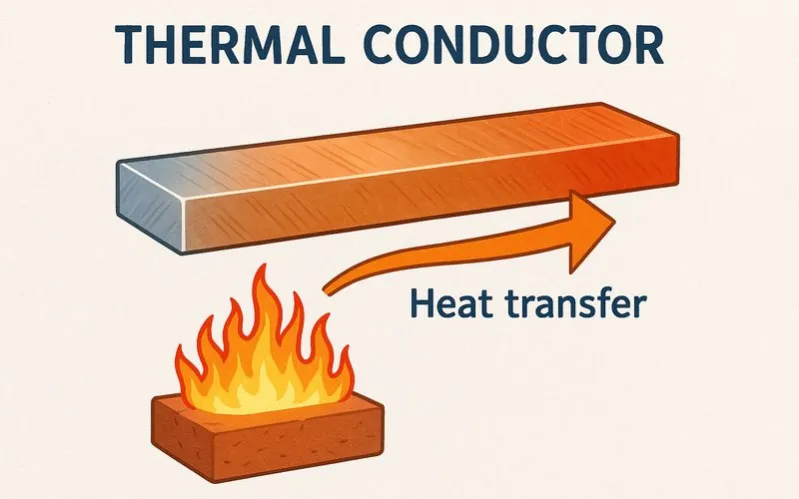

Conduction is the process of heat transfer through a material without the material itself moving. It happens when faster-moving, hotter atoms and molecules collide with their slower, cooler neighbors, transferring some of their kinetic energy. Think of it as a line of dominoes; when you push the first one, the energy transfers all the way down the line. In a solid, atoms are held in place but vibrate. Heat makes them vibrate more. These vibrations are passed from atom to atom, conducting heat through the material.
What Makes a Material a Good Conductor?
Not all materials conduct heat equally well. The ability of a material to conduct heat is measured by its thermal conductivity, often represented by the symbol $k$. A high $k$ value means the material is a good thermal conductor. What gives a material a high $k$ value?
In metals, the most common conductors, free electrons are the primary heroes. Metals have a "sea" of electrons that are not bound to any particular atom and can move freely throughout the material. When one part of the metal is heated, these free electrons gain kinetic energy and move rapidly, carrying thermal energy to cooler parts of the metal. This electron-based transport is incredibly efficient, which is why metals are generally the best thermal conductors.
For non-metals, heat is conducted through vibrations in the atomic lattice, called phonons. Materials with strong, orderly atomic bonds, like diamond, can be excellent conductors because these vibrations travel through them very quickly and with little resistance. In contrast, materials with disordered structures or weak bonds, like plastics or wood, scatter these vibrations, making them poor conductors, or good insulators.
A World of Materials: A Thermal Conductivity Comparison
The range of thermal conductivity values is vast. To get a clear picture, it's helpful to see different materials side-by-side. The following table lists common materials and their typical thermal conductivity values at room temperature, measured in Watts per meter-Kelvin (W/m·K). This unit tells us how many watts of heat energy will flow through a one-meter-thick slab of the material when there is a one-degree Kelvin (or Celsius) temperature difference between its two sides.
| Material | Thermal Conductivity (W/m·K) | Classification | Common Uses |
|---|---|---|---|
| Silver | ~430 | Excellent Conductor | High-performance electronics, specialized circuits |
| Copper | ~400 | Excellent Conductor | Electrical wiring, cookware, heat sinks |
| Gold | ~320 | Excellent Conductor | Corrosion-resistant electronics, aerospace |
| Aluminum | ~235 | Very Good Conductor | Window frames, soda cans, heat sinks, car engines |
| Iron | ~80 | Good Conductor | Radiators, engine blocks, cast iron skillets |
| Water | ~0.6 | Poor Conductor | Liquid cooling (relies more on convection) |
| Wood (Oak) | ~0.17 | Thermal Insulator | Furniture, building materials, utensil handles |
| Air | ~0.026 | Excellent Insulator | Trapped in double-pane windows, insulating foam |
Conductors in Action: From Your Kitchen to Outer Space
Thermal conductors are not just abstract scientific concepts; they are hard at work all around you. Let's explore some concrete examples.
Cooking and Kitchenware: The bottom of a metal pot is an excellent thermal conductor. When you place it on a hot stove, it quickly absorbs the heat and distributes it evenly across its surface and up the sides. This allows your food to cook uniformly. Conversely, the handle is often made of plastic or wood, which are good thermal insulators, so you can pick up the pot without burning your hand.
Electronics Cooling: Your computer's central processing unit (CPU) gets very hot when working. To prevent it from overheating, a heat sink is attached to it. A heat sink is usually made of aluminum or copper, metals with high thermal conductivity. It pulls heat away from the CPU. The heat sink has many fins to increase its surface area, and a fan blows air across these fins, carrying the heat away into the surrounding environment. This entire process relies on the heat sink being an effective thermal conductor.
Automotive Radiators: A car engine produces immense heat. A radiator is used to cool the engine coolant. The radiator is built with a network of thin metal tubes (often aluminum) through which the hot coolant flows. The high thermal conductivity of the metal allows the heat from the coolant to transfer efficiently to the air blowing through the radiator, thus cooling the engine.
Spacecraft and Satellites: In the vacuum of space, there is no air for convection, so managing heat is a major challenge. Satellites use heat pipes, which are tubes lined with a wicking material and containing a small amount of fluid. Heat from electronic components evaporates the fluid at one end. The vapor travels to the cooler end of the pipe, condenses back into liquid (releasing the heat), and the liquid is wicked back to the hot end. The entire casing of the heat pipe is made of a highly conductive metal like copper to maximize this heat transfer.
Common Mistakes and Important Questions
Q: Are all metals good thermal conductors?
Generally, yes, but there is variation. Most pure metals are good conductors. However, some metal alloys (mixtures of metals) can be designed to have lower conductivity. For example, stainless steel has a thermal conductivity much lower than pure copper or aluminum because its alloying elements disrupt the flow of electrons.
Q: Is a good thermal conductor always a good electrical conductor?
For metals, this correlation is very strong. The same "sea of free electrons" that allows for efficient heat conduction also allows for efficient electrical conduction. Silver, copper, and gold are the best for both. A notable exception is diamond, which is an excellent thermal conductor but a very good electrical insulator, as it has no free electrons.
Q: Why does a piece of metal feel colder than a piece of wood at room temperature?
This is a classic demonstration of thermal conduction. Both the metal and the wood are at the same temperature. However, when you touch them, the metal conducts heat away from your hand (which is warmer than room temperature) much more rapidly than the wood does. This faster loss of heat from your skin is interpreted by your nerves as "cold." The wood, being a poor conductor, draws heat away slowly, so it feels closer to your skin's temperature.
Footnote
[1] Thermal Conductivity (k): A property of a material that indicates its ability to conduct heat. It is measured in Watts per meter-Kelvin (W/m·K).
[2] Heat Sink: A passive heat exchanger that transfers the heat generated by an electronic or mechanical device to a fluid medium, often air, where it is dissipated away from the device.
[3] Phonons: A quantum of energy or a quasi-particle associated with a compressional wave (such as sound or vibration) that travels through the lattice of a crystal. They are the primary means of heat conduction in electrical insulators.
