Cavity Wall: The Science of Staying Warm
The Building Blocks of a Cavity Wall

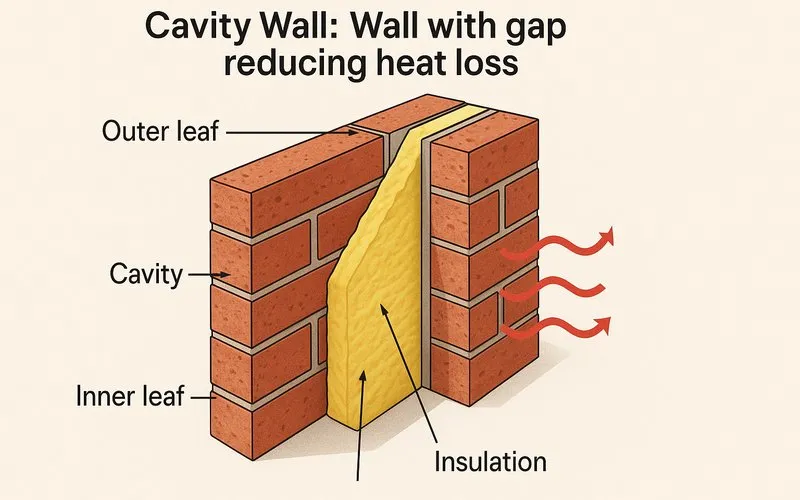

At its core, a cavity wall is a simple yet brilliant idea. Instead of having one thick, solid wall, builders construct two thinner walls with a space in between. Let's break down its main components:
- Inner Leaf (Wythe): This is the inside wall, typically made of concrete blocks or bricks, which supports the interior structure of the building.
- Outer Leaf (Wythe): This is the outside wall, usually made of brick or stone, which protects the building from weather elements like rain and wind.
- The Cavity: This is the empty space, usually between 50 mm and 100 mm wide, that separates the two leaves. It is the heart of the system.
- Wall Ties: These are metal or plastic components that connect the two leaves, providing structural stability without creating a significant path for heat to travel across.
- Cavity Insulation (Optional): In modern construction, this gap is often filled with materials that trap air, such as foam boards, mineral wool, or beads, to make the wall even more effective at stopping heat flow.
How a Cavity Fights Heat Loss: The Science of Thermal Transfer
Heat always moves from a warmer area to a cooler one. In winter, the heat from your warm home tries to escape to the cold outside. A solid wall offers an easy path for this heat. A cavity wall, however, creates a difficult barrier. It combats the three ways heat travels:
The rate of heat loss ($Q$) through a material can be described by a simple formula: $Q = U \times A \times \Delta T$. Here, $U$ is the overall heat transfer coefficient (a measure of how well a material conducts heat), $A$ is the surface area, and $\Delta T$ (Delta T) is the temperature difference between inside and outside. A lower $U$-value means better insulation. A cavity wall has a much lower $U$-value than a solid wall.
1. Conduction: This is when heat travels through a solid material. Think of a metal spoon getting hot in a soup pot. In a solid brick wall, heat conducts directly from the warm inside to the cold outside. The cavity breaks this path. Air is a poor conductor of heat, so the gap itself acts as an insulator. When insulation material is added, it makes this barrier even stronger because these materials are full of tiny air pockets that are excellent at resisting conductive heat flow.
2. Convection: This is when heat is carried by moving fluids or gases. In an empty cavity, the air near the warm inner wall heats up, becomes less dense, and rises. The cooler air near the outer wall falls, creating a circular current (a convection current) that transfers heat across the gap. This is why an unfilled cavity is less effective. By filling the cavity with insulation, these air movements are stopped. The trapped air cannot circulate, dramatically reducing convective heat loss.
3. Radiation: This is the transfer of heat by electromagnetic waves, like feeling the warmth of the sun on your skin. Some heat radiates from the inner leaf across the cavity to the outer leaf. Insulation materials, especially those with reflective foil facings, can reflect this radiant heat back towards the inside, further improving efficiency.
Comparing Wall Types: A Performance Table
The effectiveness of different wall constructions can be compared using their U-value. Remember, a lower U-value is better!
| Wall Type | Description | Typical U-Value (W/m²K) | Insulation Effectiveness |
|---|---|---|---|
| Solid Brick Wall | A single, thick wall of brick or stone. | 2.0 - 2.5 | Poor |
| Unfilled Cavity Wall | Two walls with an empty air gap. | 1.5 - 1.8 | Fair |
| Filled Cavity Wall | Cavity filled with foam or mineral wool insulation. | 0.2 - 0.6 | Excellent |
A Real-World Example: The Winter Coat Analogy
Imagine you are going outside on a cold winter day. If you wear a single, thick cotton sweater, you will stay warm for a while, but the cold will eventually seep through (this is like a solid wall). Now, imagine wearing a thin jacket with a puffy, down-filled lining. The magic isn't in the fabric of the jacket itself, but in the thousands of tiny air pockets trapped within the down feathers. These pockets of still air are excellent insulators, preventing your body heat from escaping. This is exactly how cavity wall insulation works. The insulation material acts like the down filling, creating millions of tiny cavities that trap air and drastically slow down heat loss.
Common Mistakes and Important Questions
Can a cavity wall get wet inside?
Are there any disadvantages to filling a cavity wall?
Is a cavity wall only for cold climates?
The cavity wall is a brilliant example of how a simple scientific principle can be applied to solve a practical problem. By understanding the methods of heat transfer—conduction, convection, and radiation—we can see how a gap of air, especially when filled with the right materials, creates a powerful thermal barrier. This construction technique is a key player in building comfortable, durable, and energy-efficient homes and buildings. It demonstrates that sometimes, the most effective solution is not a solid barrier, but a cleverly designed one with a purposeful gap.
Footnote
1 U-value: Also known as thermal transmittance, it is a measure of the rate of heat loss through a structure (like a wall, window, or roof). It is given in units of Watts per square meter per Kelvin ($W/m^2K$). A lower U-value indicates better insulating properties.
2 Conduction: The process by which heat energy is transmitted through a substance or between substances in direct contact, without movement of the material.
3 Convection: The transfer of heat by the physical movement of a fluid (a liquid or gas) from one place to another.
4 Radiation: The emission of energy as electromagnetic waves or as moving subatomic particles, especially high-energy particles which cause ionization. In this context, it refers to thermal radiation (infrared waves).
