Finding the Midpoint of a Line Segment

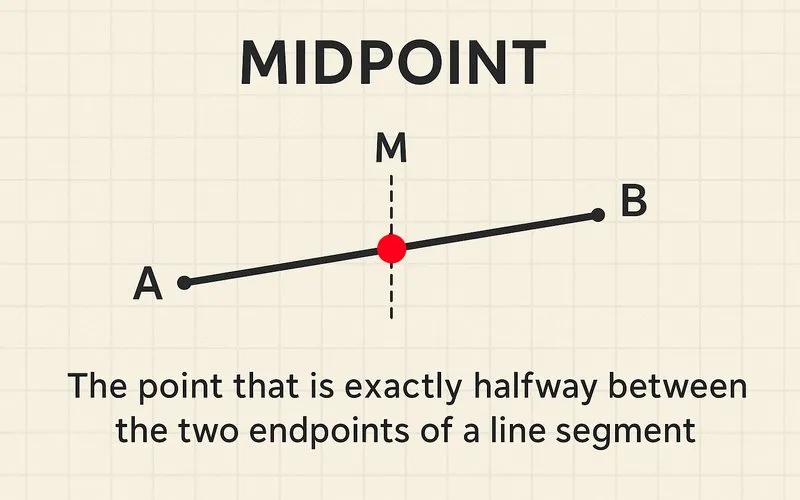

What is a Midpoint?
Imagine you have a straight stick and you want to find the exact spot that divides it into two pieces of equal length. That spot is the midpoint. In geometry, the midpoint of a line segment is the point that is exactly halfway between the two endpoints of the segment. It is the perfect balance point, equally distant from both ends.
The midpoint is not just a concept for mathematicians; we use it in everyday life. When you share a candy bar equally with a friend by breaking it in half, the break point is the midpoint. When you find the center of a wall to hang a picture, you are looking for the midpoint. This fundamental concept helps us divide spaces and objects equally, ensuring balance and symmetry.
Understanding the Coordinate Plane
To work with midpoints mathematically, we need to understand the coordinate plane. The coordinate plane is a two-dimensional surface formed by two perpendicular number lines: the x-axis (horizontal) and the y-axis (vertical). Any point on this plane can be located using an ordered pair of numbers called coordinates, written as (x, y).
For example, the point (3, 4) means you move 3 units to the right along the x-axis and then 4 units up along the y-axis. The point where the axes cross is called the origin, with coordinates (0, 0). This system allows us to precisely describe the position of points and calculate distances and midpoints between them.
The Midpoint Formula
Now for the most important tool: the midpoint formula. If we have two endpoints, A(x₁, y₁) and B(x₂, y₂), the midpoint M has coordinates that are the average of the x-coordinates and the average of the y-coordinates.
Let's break this down step by step:
- Identify the coordinates of both endpoints: (x₁, y₁) and (x₂, y₂)
- Add the x-coordinates together: x₁ + x₂
- Divide the sum by 2: (x₁ + x₂) ÷ 2
- Add the y-coordinates together: y₁ + y₂
- Divide the sum by 2: (y₁ + y₂) ÷ 2
- Write the midpoint as (x, y) using your results
Example: Find the midpoint between A(2, 5) and B(8, 9).
Using our formula: $M = \left( \frac{2 + 8}{2}, \frac{5 + 9}{2} \right) = \left( \frac{10}{2}, \frac{14}{2} \right) = (5, 7)$
So the midpoint is (5, 7). You can verify this by checking that the distance from A to M equals the distance from M to B.
Midpoint in One Dimension
Before working with two dimensions, let's understand midpoints on a number line. When we have points on a single line, finding the midpoint is simpler: we just average the two coordinates.
Example: Find the midpoint between points at 3 and 11 on a number line.
$M = \frac{3 + 11}{2} = \frac{14}{2} = 7$
The midpoint is at position 7. Notice that 7 is exactly 4 units away from both 3 and 11.
Midpoint in Three Dimensions
For more advanced applications, we can extend the midpoint concept to three dimensions. In 3D space, points have three coordinates: (x, y, z). The midpoint formula simply adds a z-component.
Example: Find the midpoint between A(1, 3, 5) and B(7, 9, 13).
$M = \left( \frac{1 + 7}{2}, \frac{3 + 9}{2}, \frac{5 + 13}{2} \right) = \left( \frac{8}{2}, \frac{12}{2}, \frac{18}{2} \right) = (4, 6, 9)$
Properties of the Midpoint
The midpoint has several important mathematical properties that make it useful in geometry:
| Property | Description | Example |
|---|---|---|
| Equal Distance | The midpoint is equidistant from both endpoints | If AM = 5 cm, then MB = 5 cm |
| Bisector | The midpoint divides the segment into two congruent segments | Segment AB is divided into AM and MB, where AM ≅ MB |
| Center of Mass | For a uniform rod, the midpoint is its center of mass | A balanced seesaw pivots at its midpoint |
| Unique Point | Every line segment has exactly one midpoint | There is only one point that divides AB into two equal parts |
Practical Applications of Midpoints
Midpoints are not just abstract mathematical concepts; they have numerous real-world applications across various fields:
In Architecture and Construction:
- Finding the center of a wall to hang artwork or install windows
- Locating the midpoint of a beam to ensure proper support
- Dividing land equally between properties
In Computer Graphics and Game Development:
- Calculating the center of objects for rotation and scaling
- Creating smooth animations by finding intermediate points
- Dividing polygons into smaller parts for detailed rendering
In Navigation and Geography:
- Finding the halfway point between two locations on a map
- Calculating the midpoint of a flight path for refueling stops
- Dividing territories or regions equally
In Sports:
- Finding the center of a soccer field or basketball court
- Locating the midpoint of a race track for timing purposes
- Dividing playing areas equally between teams
Finding Midpoints of Horizontal and Vertical Segments
Some line segments have special orientations that make finding their midpoints easier. When a segment is perfectly horizontal or vertical, we can use simplified approaches.
Horizontal Segments: When two points have the same y-coordinate, the segment is horizontal. The midpoint's y-coordinate will be the same as the endpoints, and we only need to average the x-coordinates.
Example: Find the midpoint of A(2, 5) and B(8, 5).
Since the y-coordinates are the same, the midpoint is $M = \left( \frac{2 + 8}{2}, 5 \right) = (5, 5)$
Vertical Segments: When two points have the same x-coordinate, the segment is vertical. The midpoint's x-coordinate will be the same as the endpoints, and we only need to average the y-coordinates.
Example: Find the midpoint of A(4, 3) and B(4, 11).
Since the x-coordinates are the same, the midpoint is $M = \left( 4, \frac{3 + 11}{2} \right) = (4, 7)$
Common Mistakes and Important Questions
Q: Is the midpoint the same as the average of two numbers?
Yes, but with an important distinction. The midpoint is the geometric concept of the exact center point between two endpoints. The mathematical operation we use to find it is averaging. In one dimension, the midpoint is simply the average of the two coordinates. In two dimensions, we find the average of the x-coordinates and the average of the y-coordinates separately.
Q: What is the most common error when using the midpoint formula?
The most common error is adding the coordinates incorrectly or forgetting to divide by 2. Students sometimes add x₁ + y₁ and x₂ + y₂, which is incorrect. Remember: add x₁ + x₂ and divide by 2 for the x-coordinate, then add y₁ + y₂ and divide by 2 for the y-coordinate. Another common mistake is using the distance formula instead of the midpoint formula.
Q: Can we find the midpoint if we know one endpoint and the midpoint?
Yes! If we know one endpoint and the midpoint, we can work backward to find the other endpoint. This is sometimes called the "missing endpoint" problem. If M(x_m, y_m) is the midpoint of A(x₁, y₁) and B(x₂, y₂), then: $x_2 = 2x_m - x_1$ and $y_2 = 2y_m - y_1$.
Example: If endpoint A is (2, 3) and the midpoint is (5, 7), then endpoint B is: $x_2 = 2(5) - 2 = 8$, $y_2 = 2(7) - 3 = 11$, so B is (8, 11).
The midpoint is a fundamental concept in geometry that represents the exact center of a line segment, dividing it into two equal parts. Through the midpoint formula $M = \left( \frac{x_1 + x_2}{2}, \frac{y_1 + y_2}{2} \right)$, we can precisely calculate this point in any dimension. Understanding midpoints is essential not only for solving geometric problems but also for practical applications in fields ranging from architecture to computer graphics. By mastering the properties and calculations associated with midpoints, you develop spatial reasoning skills that will serve you well in both academic and real-world contexts.
Footnote
[1] Coordinate Plane: A two-dimensional surface formed by two perpendicular number lines called axes. The horizontal axis is typically called the x-axis, and the vertical axis is called the y-axis. Points on the plane are identified by ordered pairs (x, y) that represent their positions relative to these axes.
[2] Congruent Segments: Line segments that have exactly the same length. When a midpoint divides a segment into two congruent segments, it means both resulting segments are equal in length.
