Vectors: The Language of Direction and Magnitude
What Exactly is a Vector?
In our everyday lives, we often describe movement. Saying "I walked 5 kilometers" tells us the distance, or magnitude. But if you want to tell a friend where you are, you need more; you need to say *which way* you went. "I walked 5 kilometers north" gives a complete picture. This combination of size and direction is the essence of a vector.
A vector is a mathematical object that has both magnitude (how much) and direction (which way). This makes it different from a scalar, which is a quantity that has only magnitude. Think of the difference between speed and velocity. Saying a car has a speed of 60 km/h is a scalar. Saying it has a velocity of 60 km/h heading east is a vector.

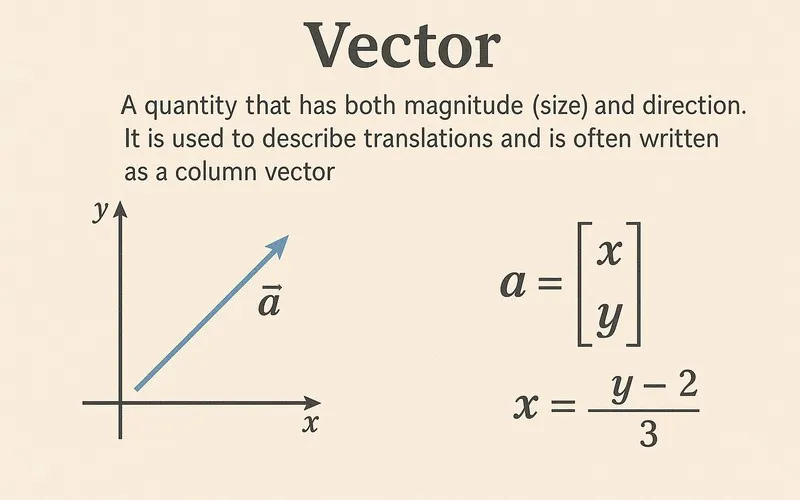

Representing Vectors: Arrows and Column Vectors
We can represent vectors visually and numerically. The most common visual representation is an arrow. The length of the arrow represents the magnitude of the vector, and the arrowhead points in its direction.
For numerical work, especially on graph paper or in computer programs, we use a column vector. A column vector is written as a stack of numbers inside brackets. In two dimensions (2D), it looks like this: $ \begin{pmatrix} x \\ y \end{pmatrix} $.
- The top number ($x$) tells you the movement in the horizontal direction (left/right).
- The bottom number ($y$) tells you the movement in the vertical direction (up/down).
A positive $x$ value means move right. A negative $x$ value means move left. A positive $y$ value means move up. A negative $y$ value means move down.
| Column Vector | Description of Movement | Visual Description |
|---|---|---|
| $ \begin{pmatrix} 3 \\ 2 \end{pmatrix} $ | Move 3 units right, 2 units up. | An arrow pointing to the top-right. |
| $ \begin{pmatrix} -1 \\ 4 \end{pmatrix} $ | Move 1 unit left, 4 units up. | An arrow pointing to the top-left. |
| $ \begin{pmatrix} 0 \\ -5 \end{pmatrix} $ | Move 0 units left/right, 5 units down. | A straight vertical arrow pointing down. |
| $ \begin{pmatrix} -2 \\ -2 \end{pmatrix} $ | Move 2 units left, 2 units down. | An arrow pointing to the bottom-left. |
Describing Translations with Vectors
One of the most important uses of vectors in geometry is to describe a translation. A translation is a type of transformation that slides every point of a shape the same distance in the same direction. The shape's size, orientation, and sense (it doesn't flip) remain unchanged; it just moves.
A translation vector tells you exactly how to move the shape. If you have a triangle on a grid and you want to translate it using the vector $ \begin{pmatrix} 4 \\ -3 \end{pmatrix} $, you would take every corner (vertex) of the triangle and move it 4 units to the right and 3 units down. The entire shape follows this rule.
Working with Vectors: Magnitude and Basic Operations
As you progress, you'll need to do more than just read vectors. You'll need to calculate their magnitude and combine them.
Calculating the Magnitude
The magnitude of a vector is its length. For a vector $ \vec{v} = \begin{pmatrix} x \\ y \end{pmatrix} $, the magnitude is found using the Pythagorean Theorem, which you might have learned about for right-angled triangles. The magnitude, often written as $ |\vec{v}| $, is calculated as:
$ |\vec{v}| = \sqrt{x^2 + y^2} $
Example: Find the magnitude of the vector $ \begin{pmatrix} 3 \\ 4 \end{pmatrix} $.
$ |\vec{v}| = \sqrt{3^2 + 4^2} = \sqrt{9 + 16} = \sqrt{25} = 5 $.
So, the vector has a length of 5 units.
Adding and Subtracting Vectors
Vectors can be added together and subtracted from one another. This is done by simply adding or subtracting their corresponding components.
Vector Addition: $ \begin{pmatrix} a \\ b \end{pmatrix} + \begin{pmatrix} c \\ d \end{pmatrix} = \begin{pmatrix} a + c \\ b + d \end{pmatrix} $
Vector Subtraction: $ \begin{pmatrix} a \\ b \end{pmatrix} - \begin{pmatrix} c \\ d \end{pmatrix} = \begin{pmatrix} a - c \\ b - d \end{pmatrix} $
Example: If you walk along a path described by vector $ \vec{a} = \begin{pmatrix} 2 \\ 1 \end{pmatrix} $ and then immediately along a path described by vector $ \vec{b} = \begin{pmatrix} -1 \\ 3 \end{pmatrix} $, your overall displacement is:
$ \vec{a} + \vec{b} = \begin{pmatrix} 2 + (-1) \\ 1 + 3 \end{pmatrix} = \begin{pmatrix} 1 \\ 4 \end{pmatrix} $.
This means you ended up 1 unit to the right and 4 units up from your starting point.
Multiplying a Vector by a Scalar
You can also multiply a vector by a regular number (a scalar). This scalar multiplication changes the magnitude of the vector and, if the scalar is negative, reverses its direction.
Scalar Multiplication: $ k \times \begin{pmatrix} x \\ y \end{pmatrix} = \begin{pmatrix} kx \\ ky \end{pmatrix} $
Example: If $ \vec{v} = \begin{pmatrix} 3 \\ -1 \end{pmatrix} $, then $ 2\vec{v} = \begin{pmatrix} 2 \times 3 \\ 2 \times (-1) \end{pmatrix} = \begin{pmatrix} 6 \\ -2 \end{pmatrix} $.
The new vector $ 2\vec{v} $ points in the same direction as $ \vec{v} $ but is twice as long. Multiplying by $ -1 $ would give a vector $ \begin{pmatrix} -3 \\ 1 \end{pmatrix} $, which has the same length but points in the exact opposite direction.
Vectors in Action: From Maps to Video Games
Vectors are not just abstract mathematical ideas; they are used constantly in the world around us.
- Navigation & GPS: When your GPS calculates a route, it uses vectors. It considers your position, your destination, and the directions and distances of the roads. The "as the crow flies" direction from your home to school is a vector.
- Physics and Engineering: Forces are vectors. When two people push a box in different directions, the net force (the vector sum of the individual forces) determines which way the box moves and how fast. The lift generated by an airplane's wing is also a vector force.
- Computer Graphics and Video Games: This is a huge application. The position of every character, tree, and bullet in a video game is stored as a vector. When your character moves, its position vector is updated by adding a movement vector. The direction an enemy is facing, the velocity of a thrown object, and the camera's view are all controlled by vectors.
- Weather Forecasting: Wind is a vector quantity. Meteorologists need to know both the wind speed (magnitude) and its direction to predict weather patterns accurately. A weather map with arrows showing wind is a map of vectors.
Common Mistakes and Important Questions
Q: Is the vector $ \begin{pmatrix} 2 \\ 5 \end{pmatrix} $ the same as $ \begin{pmatrix} 5 \\ 2 \end{pmatrix} $?
A: No, they are not the same. The first vector moves 2 right and 5 up. The second moves 5 right and 2 up. They have the same magnitude (length) but point in completely different directions. Order matters in a column vector.
Q: Can a vector have a magnitude of zero?
A: Yes. This is called the zero vector, written as $ \begin{pmatrix} 0 \\ 0 \end{pmatrix} $. It has zero length and its direction is undefined. It represents no movement or a net displacement of zero.
Q: Why is vector addition different from regular number addition?
A: Regular numbers are scalars; they don't have direction. When you add vectors, you are combining both their magnitudes and their directions. The process of adding the x-components and y-components separately is a mathematical way to account for these two independent pieces of information. Visually, it's like placing the tail of one vector at the head of the first and drawing a new vector from the start to the finish (the triangle law of vector addition).
Vectors provide a powerful and precise language for describing our world, from the simplest slide of a shape on a grid to the complex physics of flight and computer animation. By understanding that a vector is defined by both its magnitude and direction, and by learning to represent it as a column vector, you gain a fundamental tool for mathematics and science. Mastering how to calculate a vector's magnitude, add and subtract vectors, and use them to describe translations opens the door to more advanced topics in physics, engineering, and computer science. Remember, whenever direction matters, you are likely dealing with a vector.
Footnote
1 Scalar: A quantity that is fully described by its magnitude (size) alone. Examples include mass, temperature, time, and speed.
2 Magnitude: The size or length of a vector. It is a scalar quantity, always a non-negative number.
3 Translation: A geometric transformation that moves every point of a figure or space by the same distance in a given direction. It is often referred to as a "slide".
4 Component: One of the numbers in a vector that describes its effect in a particular direction. In the column vector $ \begin{pmatrix} x \\ y \end{pmatrix} $, $x$ is the horizontal component and $y$ is the vertical component.
