The Range of a Projectile
What is Projectile Motion?
A projectile is any object thrown or launched into the air that is subject only to the force of gravity and air resistance (which we often ignore to simplify the math). Think of a soccer ball being kicked, a basketball arcing towards the hoop, or a cannonball fired from a cannon. The path it follows is a curved shape called a parabola.
The magic of projectile motion is that we can break it down into two completely independent types of motion:
- Horizontal Motion: The object moves sideways at a constant speed because no horizontal force is acting on it (again, ignoring air resistance).
- Vertical Motion: The object moves up and down under the constant acceleration of gravity, which pulls it back towards the Earth at 9.8 m/s².

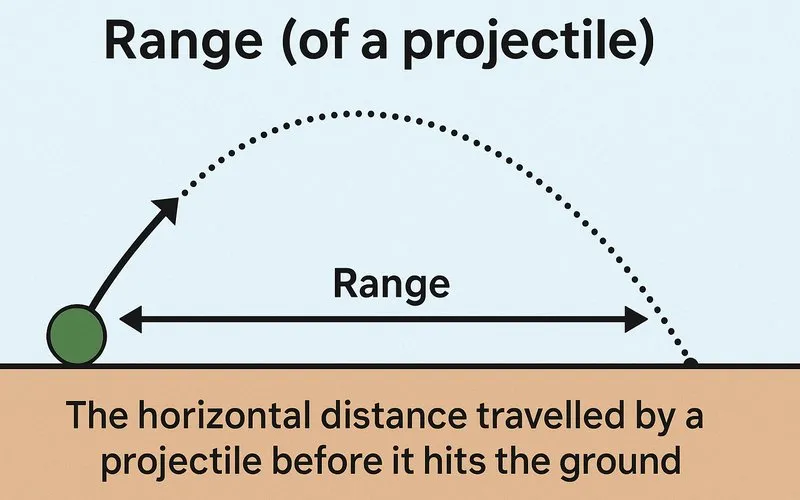

The range is all about the horizontal motion. It's simply the constant horizontal velocity multiplied by the total time the object is in the air (known as the time of flight).
The Formula for Range
By combining the equations for horizontal and vertical motion, physicists have derived a neat formula for the range ($ R $) of a projectile launched and landing at the same height:
Where:
- $ R $ is the range (the horizontal distance).
- $ v $ is the initial velocity (the speed at launch).
- $ \theta $ (theta) is the launch angle above the horizontal.
- $ g $ is the acceleration due to gravity (9.8 m/s² on Earth).
- $ \sin $ is the trigonometric sine function.
Notice the term $ \sin(2\theta) $. This part of the formula holds the key to understanding how the launch angle affects the range.
How Launch Angle Influences Range
The angle at which you throw something dramatically changes how far it will go. Let's compare a few scenarios using the range formula.
| Launch Angle ($ \theta $) | $ \sin(2\theta) $ | Relative Range | Explanation |
|---|---|---|---|
| 0° | $ \sin(0°) = 0 $ | 0 | Launched horizontally, it has no vertical component to fight gravity, so it hits the ground immediately. |
| 30° | $ \sin(60°) \approx 0.866 $ | 0.866 | A good balance between horizontal speed and time in the air. |
| 45° | $ \sin(90°) = 1 $ | 1 (Maximum) | The perfect trade-off. The horizontal and vertical components are balanced for the greatest distance. |
| 60° | $ \sin(120°) \approx 0.866 $ | 0.866 | Same range as 30°! It goes higher and stays in the air longer, but its slower horizontal speed balances out. |
| 90° (Straight up) | $ \sin(180°) = 0 $ | 0 | No horizontal component, so it lands exactly where it was launched. |
This table reveals a fascinating symmetry: any two complementary angles (angles that add up to 90°) will produce the same range. A launch at 30° will go just as far as a launch at 60°, assuming the same initial speed.
Calculating Range: A Step-by-Step Example
Let's put the formula to work. Imagine a catapult launches a stone with an initial speed of $ 20 m/s $ at an angle of $ 40° $ above the horizontal. How far does the stone land from the catapult? (Use $ g = 9.8 m/s² $).
- Identify the known values:
- Initial velocity, $ v = 20 m/s $
- Launch angle, $ \theta = 40° $
- Gravity, $ g = 9.8 m/s² $
- Write down the range formula: $ R = \frac{v^2 \sin(2\theta)}{g} $
- Calculate $ v^2 $: $ 20^2 = 400 $
- Calculate $ 2\theta $: $ 2 \times 40° = 80° $
- Find $ \sin(80°) $: Using a calculator, $ \sin(80°) \approx 0.9848 $
- Plug everything into the formula: $ R = \frac{400 \times 0.9848}{9.8} $
- Perform the calculation:
- $ 400 \times 0.9848 = 393.92 $
- $ R = \frac{393.92}{9.8} \approx 40.2 $
The stone lands approximately 40.2 meters away from the catapult.
Range in the Real World: Sports and Beyond
Understanding range is not just for physics class; it's applied every day.
In Sports: A soccer player taking a long-range shot instinctively chooses a launch angle. Kicking the ball too high (>45°) gives it more hang time but less distance. Kicking it too low (<45°) means it won't have enough time in the air to travel far. The sweet spot is close to 45° for maximum distance on a goal kick. Similarly, a basketball player shooting a three-pointer uses a higher angle to arc the ball over defenders, sacrificing some horizontal range for the necessary vertical clearance.
In Engineering and Safety: When designing a water fountain, engineers calculate the range of the water jets to ensure they land in the pool. In fireworks displays, the launch angle and gunpowder charge (which determines initial velocity) are carefully calibrated to explode at a specific range and height for the best visual effect.
Common Mistakes and Important Questions
Does a heavier object have a longer range than a lighter one?
No, not if air resistance is ignored. The mass of the object does not appear in the range formula $ R = \frac{v^2 \sin(2\theta)}{g} $. In a vacuum, a feather and a cannonball launched with the same speed and angle will have the exact same range. In the real world, air resistance affects lighter objects more, so the cannonball would indeed go farther.
Why is 45 degrees the best angle for maximum range?
It's all about the optimal balance. A lower angle gives you a faster horizontal speed but less time in the air. A higher angle gives you more time in the air but a slower horizontal speed. At 45°, the product of the horizontal velocity and the time of flight is maximized. Mathematically, the sine function, $ \sin(2\theta) $, reaches its maximum value of 1 when $ 2\theta = 90° $, which means $ \theta = 45° $.
What if the projectile lands at a different height than it was launched?
The standard range formula only works when the launch and landing heights are the same. If you throw a ball from the top of a cliff, it will go much farther because it has more time to fall. In these cases, you cannot use the simple formula. You must go back to the separate equations for horizontal and vertical motion and calculate the time of flight based on the vertical drop or rise to the landing point.
Conclusion
The range of a projectile is a beautiful application of physics that connects abstract math to the real world. By understanding that motion can be split into independent horizontal and vertical components, we derive a powerful formula that shows how initial velocity and launch angle determine how far something will fly. The key takeaway is the special role of the 45° angle for achieving maximum distance under ideal conditions. Whether you're an athlete, an engineer, or just curious about how things move, grasping the principles of projectile range opens a window into understanding the motion all around us.
Footnote
1 Projectile Motion[1]: The motion of an object thrown or projected into the air, subject only to acceleration due to gravity.
2 Parabola[2]: A symmetrical, curved U-shaped path that a projectile follows under the influence of gravity alone.
3 Initial Velocity (v)[3]: The speed and direction at which a projectile begins its motion.
4 Acceleration due to Gravity (g)[4]: The constant acceleration experienced by an object in free fall near the Earth's surface, approximately 9.8 m/s² downward.
