The Curved Path of Flight: Understanding Projectile Trajectory
The Forces That Shape a Trajectory

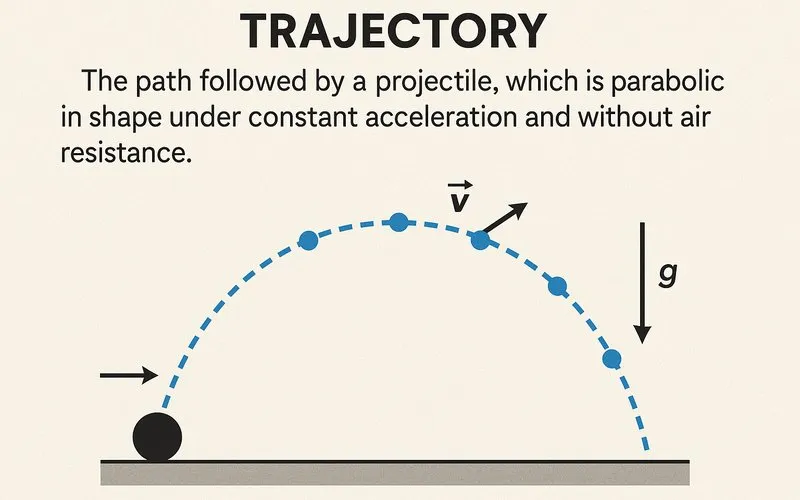

Imagine throwing a ball straight up in the air. What happens? It slows down, stops for an instant at its highest point, and then falls back down, speeding up as it comes down. Now, imagine throwing it forward. Instead of going in a straight line, it curves downward, eventually hitting the ground. This curved path is the trajectory.
To understand why this curve happens, we need to look at the forces acting on the projectile after it is launched. For this article, we will assume a perfect, simplified world with no air resistance. The only force acting on the projectile is the constant downward pull of gravity[1]. This means that while the projectile moves forward, it is also constantly accelerating downward at approximately $9.8 m/s^2$.
Breaking Down the Motion: Horizontal vs. Vertical
This separation is the secret to understanding projectile motion. Let's break it down using a cannonball as an example.
- Horizontal Motion: Once the cannonball is fired, no horizontal force is pushing it forward (again, ignoring air resistance). According to Newton's First Law, an object in motion stays in motion. So, the cannonball's horizontal velocity remains constant throughout the entire flight. It covers equal horizontal distances in equal time intervals.
- Vertical Motion: Gravity is constantly pulling the cannonball downward. This means its vertical velocity is constantly changing. As it goes upward, gravity slows it down until its vertical velocity becomes zero at the highest point. Then, as it falls, gravity speeds it up again. The vertical motion is identical to simply throwing a ball straight up and down.
The combination of these two motions—steady horizontal and changing vertical—creates the beautiful parabolic arc we call a trajectory.
| Component of Motion | Velocity | Acceleration | Governed by |
|---|---|---|---|
| Horizontal | Constant | Zero | Newton's First Law |
| Vertical | Changes | Constant ($g = 9.8 m/s^2$) | Newton's Second Law |
The Mathematics of the Parabola
The parabolic shape isn't just a observation; it comes directly from the equations of motion. If we launch an object from the ground with an initial velocity $v_0$ at an angle $\theta$ (theta), we can find its position at any time $t$.
First, we break the initial velocity into its horizontal ($v_{0x}$) and vertical ($v_{0y}$) components:
$v_{0x} = v_0 \cos \theta$
$v_{0y} = v_0 \sin \theta$
$y = (\tan \theta) x - \frac{g}{2v_0^2 \cos^2 \theta} x^2$
Here, $y$ is the vertical position, $x$ is the horizontal position, and $g$ is the acceleration due to gravity.
How Launch Angle and Velocity Change the Path
The initial conditions—the speed and angle at which you launch a projectile—completely determine its trajectory. Let's see how.
Effect of Launch Angle ($\theta$): If you throw a ball with the same speed but at different angles, you get very different results.
- Angle of $45^\circ$: This angle provides the maximum range (horizontal distance) for a given initial speed on level ground. It's the perfect balance between hang time and forward speed.
- Angles of $30^\circ$ and $60^\circ$: These are complementary angles and, in the ideal case with no air resistance, they produce the same range. However, the $60^\circ$ launch will result in a higher maximum height and a longer flight time.
- Angle of $90^\circ$ (straight up): The range is zero because the object goes up and comes back down to the same spot. The flight time is the longest possible for that initial speed.
Effect of Initial Velocity ($v_0$): A higher initial speed, with the same launch angle, will result in a greater range, a higher maximum height, and a longer flight time. The parabola becomes wider and taller.
From the Playground to the Planets: Real-World Applications
The concept of projectile trajectory is not just theoretical; it's used in countless real-world scenarios.
Sports: A basketball player making a jump shot intuitively calculates a trajectory. They launch the ball at a specific angle and speed so that it arcs through the air and swishes through the hoop. Similarly, a soccer player bending a free kick, a golfer hitting a drive, or a quarterback throwing a long pass are all applying the principles of projectile motion (though air resistance plays a bigger role in some of these).
Engineering and Design: Water from a fountain follows a parabolic trajectory. Engineers use these calculations to design the pumps and nozzles to create the desired visual effect. In construction, the path of debris from a demolition must be calculated to ensure safety in the surrounding area.
Space Exploration: This is the ultimate example of projectile motion. When a rocket launches a satellite into orbit, it is essentially giving the satellite a tremendous horizontal velocity. The trajectory is a very large, shallow parabola. If the velocity is high enough, the curvature of the satellite's path matches the curvature of the Earth, and it falls around the planet, entering orbit. This is why satellites don't need engines to keep moving forward—they are projectiles in constant freefall around the Earth.
Common Mistakes and Important Questions
Q: Is there acceleration at the very top of the trajectory?
A: Yes! This is a very common misunderstanding. While the vertical velocity is zero at the top, the acceleration due to gravity is still $9.8 m/s^2$ downward. The object is never "weightless" or free from gravity's pull. It is this constant acceleration that causes the vertical velocity to change from upward to downward.
Q: Does a heavier object have a different trajectory than a lighter one if launched the same way?
A: In our ideal model with no air resistance, no. The mass of the object does not affect its trajectory. Gravity accelerates all objects at the same rate, regardless of their mass. A bowling ball and a tennis ball launched with the same initial velocity and angle will follow identical paths and land at the same time. This was famously demonstrated by Apollo 15 astronaut David Scott on the Moon by dropping a hammer and a feather.
Q: Why do we often ignore air resistance? Isn't it important?
A: Air resistance is very important in real life! It is ignored in introductory physics to simplify the math and focus on the core concepts. Air resistance[2] is a force that opposes motion, so it reduces the horizontal velocity of a projectile over time and also affects the vertical motion. This makes the trajectory asymmetrical—the descending side is steeper than the ascending side—and it is no longer a perfect parabola. For slow-moving, dense objects over short distances, the ideal model is a good approximation. For a skydiver or a baseball, it is essential to include air resistance for accurate predictions.
Footnote
[1] Gravity: A fundamental force of attraction between all objects with mass. On Earth, it gives objects weight and causes them to accelerate downward at approximately $9.8 m/s^2$.
[2] Air Resistance (Drag): A force that acts opposite to the relative motion of an object moving through air. It depends on the object's speed, shape, and size, and it makes the trajectory of a real-world projectile non-parabolic.
