Uniform Acceleration: The Steady Change of Motion
Defining the Core Concepts
Before we dive into uniform acceleration, let's build a solid foundation by understanding some key terms. Imagine you are riding a bicycle.
Position is simply where you are. It tells us your location relative to a starting point, often measured in meters (m).
Velocity is your speed in a specific direction. If you are moving at 10 m/s towards the north, that is your velocity. It's different from speed because it includes direction. Velocity is measured in meters per second (m/s).
Acceleration is the rate at which your velocity changes. It answers the question: "How quickly are you speeding up or slowing down?" Acceleration is measured in meters per second squared (m/s²).

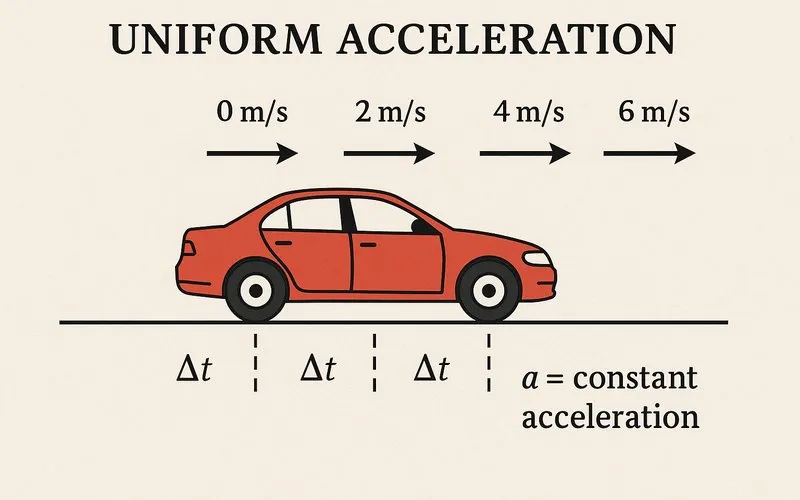

Now, Uniform Acceleration is a special and very common type of acceleration. It occurs when the velocity changes by the exact same amount every second. The acceleration value remains constant, it does not change.
The Kinematic Equations of Motion
To solve problems involving uniform acceleration, we use a set of powerful formulas known as the kinematic equations or the SUVAT[1] equations. These equations connect the five key variables of motion:
- s = displacement (the change in position, in meters)
- u = initial velocity (in m/s)
- v = final velocity (in m/s)
- a = acceleration (in m/s²)
- t = time (in seconds)
Here are the four primary equations you need to know:
2. Position-Time Relation: $ s = ut + \frac{1}{2}at^2 $
3. Position-Velocity Relation: $ v^2 = u^2 + 2as $
4. Average Velocity Relation: $ s = \frac{(u + v)}{2}t $
These equations are your toolkit. The key to solving any problem is to first write down what you know (which variables are given) and what you need to find. Then, choose the equation that connects those variables.
Visualizing Motion with Graphs
Graphs are an excellent way to picture uniform acceleration. Let's look at the two most important ones.
Velocity-Time Graph: This is the most important graph for understanding acceleration. For an object with uniform acceleration, the velocity-time graph is a straight line. The slope of this line equals the acceleration.
Slope = $ \frac{\text{change in velocity}}{\text{change in time}} = \frac{v - u}{t} = a $
Furthermore, the area under the line on a velocity-time graph represents the displacement of the object. This area is often a trapezoid, and its area is given by $ s = \frac{(u + v)}{2}t $, which is one of our kinematic equations!
Position-Time Graph: For an object with uniform acceleration, the position-time graph is a parabola. This curved line shows that the object is covering more distance each second as it speeds up.
A Roller Coaster of Examples
Let's apply these concepts to some real-world scenarios.
Example 1: The Speeding Car
A car is at rest at a traffic light. When the light turns green, the car accelerates uniformly at 3 m/s² for 8 seconds. What is its final velocity and how far does it travel?
Step 1: Identify knowns.
Initial velocity, $ u = 0 $ m/s (at rest)
Acceleration, $ a = 3 $ m/s²
Time, $ t = 8 $ s
Step 2: Find final velocity (v).
Using $ v = u + at $:
$ v = 0 + (3)(8) = 24 $ m/s
Step 3: Find displacement (s).
Using $ s = ut + \frac{1}{2}at^2 $:
$ s = (0)(8) + \frac{1}{2}(3)(8)^2 $
$ s = 0 + \frac{1}{2}(3)(64) = 96 $ meters
The car is traveling at 24 m/s after covering 96 meters.
Example 2: The Bouncing Ball
A ball is thrown straight up into the air with an initial velocity of 20 m/s. How high does it go? (Assume acceleration due to gravity, $ g = -10 $ m/s²).
Step 1: Identify knowns.
Initial velocity, $ u = 20 $ m/s
Final velocity, $ v = 0 $ m/s (at the highest point, the ball stops for an instant)
Acceleration, $ a = -10 $ m/s² (negative because gravity is pulling it down, opposing the motion)
Step 2: Find displacement (s). We need an equation connecting u, v, a, and s.
Using $ v^2 = u^2 + 2as $:
$ (0)^2 = (20)^2 + 2(-10)s $
$ 0 = 400 - 20s $
$ 20s = 400 $
$ s = 20 $ meters
The ball reaches a maximum height of 20 meters.
| Equation | Variables Involved | When to Use It |
|---|---|---|
| $ v = u + at $ | v, u, a, t | When you need to find the final velocity and time is known. |
| $ s = ut + \frac{1}{2}at^2 $ | s, u, a, t | When you need to find the distance traveled and time is known. |
| $ v^2 = u^2 + 2as $ | v, u, a, s | When time is not given or needed. |
| $ s = \frac{(u + v)}{2}t $ | s, u, v, t | When acceleration is not directly needed, but average velocity is useful. |
Common Mistakes and Important Questions
Q: Is deceleration the same as negative acceleration?
Essentially, yes. Deceleration means an object is slowing down. This happens when the acceleration vector points in the opposite direction to the velocity vector. In one-dimensional motion, we represent this with a negative sign for acceleration. For example, a car braking has a positive velocity but a negative acceleration.
Q: Can an object have zero velocity and still be accelerating?
Yes! A perfect example is the ball thrown straight up at its highest point. For an instant, its velocity is zero. However, gravity is still acting on it, giving it a constant acceleration of -10 m/s² downward. This acceleration is what causes its velocity to change from zero to a negative (downward) value, making it fall back down.
Q: What is the most common mistake when using the kinematic equations?
The most common mistake is not paying attention to the signs (positive and negative) of the variables. You must define a direction as positive at the start of the problem and stick with it. If upward is positive, then acceleration due to gravity is always negative (-9.8 m/s²). Mixing up signs is the fastest way to get an incorrect answer.
Footnote
[1] SUVAT: This is a common acronym used to remember the five variables of motion: S (displacement), U (initial velocity), V (final velocity), A (acceleration), T (time).
