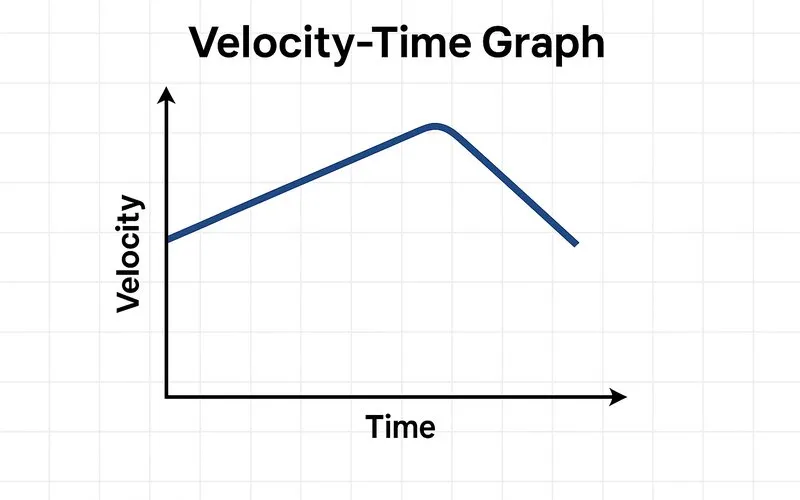

Velocity-Time Graph
The Basics: Understanding the Axes
Let's start with the fundamentals. A Velocity-Time graph has two axes:
- Vertical Axis (Y-axis): This represents the velocity of the object. Velocity is a vector quantity, which means it has both magnitude (speed) and direction. A positive velocity typically means the object is moving forward, while a negative velocity means it is moving backward (or in the opposite direction). The units are often meters per second (m/s).
- Horizontal Axis (X-axis): This represents time. The units are usually seconds (s).
Each point on the graph tells you the object's velocity at a specific moment in time. For example, a point at (5 s, 10 m/s) means that at 5 seconds, the object was moving at 10 meters per second in the positive direction.
Interpreting the Slope: What it Tells Us About Acceleration
One of the most important features of a v-t graph is the slope of the line. In mathematics, the slope is the "rise over run." On a v-t graph, this translates to the change in velocity divided by the change in time.
The formula for acceleration is:
$ a = \frac{\Delta v}{\Delta t} $
Where:
$ a $ is acceleration,
$ \Delta v $ is the change in velocity,
$ \Delta t $ is the change in time.
This is exactly the same as the calculation for the slope! Therefore, the slope of a velocity-time graph equals the acceleration of the object.
| Graph Shape | Slope | Acceleration | Description of Motion |
|---|---|---|---|
| Horizontal Line | Zero | Zero | Constant Velocity (no change in speed or direction) |
| Upward Slanting Line (/) | Positive | Positive | Speeding up in the positive direction |
| Downward Slanting Line (\) | Negative | Negative | Slowing down in the positive direction OR speeding up in the negative direction |
| Curved Line | Changing | Changing (Non-uniform) | The object's acceleration is not constant; it is increasing or decreasing. |
Calculating Displacement from the Area Under the Curve
Another incredibly useful piece of information we can get from a v-t graph is the object's displacement. Displacement is the overall change in position, which is different from the total distance traveled because it considers direction.
The area between the velocity-time graph line and the time axis represents the displacement of the object.
To find this area, we often break it down into simple shapes like rectangles and triangles.
- Area of a Rectangle: $ \text{Area} = \text{base} \times \text{height} $. On the graph, this is $ \text{time} \times \text{velocity} $, which gives displacement.
- Area of a Triangle: $ \text{Area} = \frac{1}{2} \times \text{base} \times \text{height} $. On the graph, this is $ \frac{1}{2} \times \text{time} \times \text{change in velocity} $, which also gives displacement.
It is crucial to remember that areas above the time axis are considered positive displacement, and areas below the time axis are considered negative displacement. The total displacement is the sum of all positive and negative areas.
A Journey in Motion: Analyzing a Multi-Stage Example
Let's follow a car's journey to see all these concepts in action. The car's motion is described by the following stages on a v-t graph:
- Stage 1 (0 to 5 seconds): The graph is a straight line sloping upwards from 0 m/s to 15 m/s.
Interpretation: The car is accelerating. The slope is positive, so the acceleration is constant and positive. The area under this segment is a triangle, giving a displacement of $ \frac{1}{2} \times 5 \times 15 = 37.5 $ meters. - Stage 2 (5 to 10 seconds): The graph is a horizontal line at 15 m/s.
Interpretation: The car is moving at a constant velocity. The slope is zero, so acceleration is zero. The area is a rectangle, giving a displacement of $ 5 \times 15 = 75 $ meters. - Stage 3 (10 to 15 seconds): The graph is a straight line sloping downwards from 15 m/s to 0 m/s.
Interpretation: The car is decelerating (slowing down). The slope is negative, so acceleration is negative. The area is a triangle, giving a displacement of $ \frac{1}{2} \times 5 \times 15 = 37.5 $ meters.
To find the total displacement for the entire 15-second journey, we add the displacements from each stage: 37.5 + 75 + 37.5 = 150 meters. The total distance traveled is the same in this case since all motion was in the positive direction.
Common Mistakes and Important Questions
A: No, this is a very common mistake. Velocity and acceleration are separate. A negative velocity means the object is moving backwards. Deceleration means the object is slowing down, which occurs when velocity and acceleration have opposite signs. For example, a car moving forward (positive velocity) with negative acceleration is decelerating. A car moving backward (negative velocity) with negative acceleration is actually speeding up in the backward direction.
A: Absolutely! A horizontal line on a v-t graph has a slope of zero, which means acceleration is zero. However, the velocity value itself is not zero. This describes an object moving at a constant velocity, like a car cruising on a highway at a steady 60 mph.
A: The total area between the graph and the time axis, whether above or below, gives the total distance traveled (it is always positive). The net area, where area above the axis is positive and area below is negative, gives the displacement (which can be positive, negative, or zero). Displacement is a vector, distance is a scalar.
Footnote
1 Velocity: A vector quantity that refers to "the rate at which an object changes its position." It includes both speed and direction. SI unit is meters per second (m/s).
2 Acceleration: The rate of change of velocity with time. It is also a vector quantity. SI unit is meters per second squared (m/s$^2$).
3 Displacement: The overall change in an object's position from its starting point. It is a vector quantity measured in meters (m).
4 Kinematics: The branch of mechanics that describes the motion of points, objects, and systems of bodies without considering the forces that cause the motion.
