Understanding Drag: The Force That Slows You Down

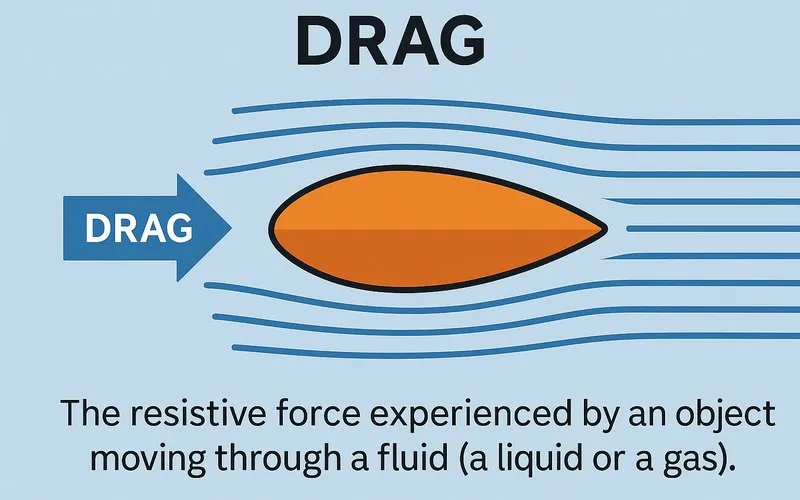

What Exactly is Drag?
Imagine sticking your hand out of the window of a moving car. You feel a strong push backwards against your palm. This push is drag. It is a mechanical force, generated by the interaction and contact between a solid body (your hand) and a fluid (the air). It is not an intrinsic property of the object itself; it is created by the relative motion between the object and the fluid. If there is no motion, there is no drag. The direction of the drag force is always opposite to the direction the object is moving.
The Drag Force Formula
Scientists often use a standard equation to calculate the drag force:
$ F_d = \frac{1}{2} \rho v^2 C_d A $
Where:
- $ F_d $ is the Drag Force
- $ \rho $ (the Greek letter rho) is the density of the fluid
- $ v $ is the speed of the object relative to the fluid
- $ C_d $ is the Drag Coefficient (a number that depends on the object's shape)
- $ A $ is the cross-sectional area (the area facing the direction of motion)
The Key Factors That Influence Drag
The drag force doesn't appear out of nowhere; its strength depends on several key factors. Understanding these helps us control and utilize drag in our daily lives and in technology.
| Factor | Description | Real-World Example |
|---|---|---|
| Fluid Density ($ \rho $) | How "thick" or "heavy" a fluid is. Denser fluids have more mass per volume, creating more resistance. | It is much harder to walk through waist-deep water (high density) than through air (low density). Cycling against a strong wind feels harder because the effective air density you're pushing against is higher. |
| Object's Speed ($ v $) | The faster an object moves, the greater the drag. Drag increases with the square of the speed. | If you double your car's speed, the drag force doesn't just double; it becomes $ 2^2 = 4 $ times greater. This is why it takes significantly more engine power to go from 100 km/h to 200 km/h. |
| Cross-Sectional Area ($ A $) | The area of the object that is "facing" the fluid flow head-on. A larger frontal area pushes more fluid out of the way. | A large, flat parachute has a huge cross-sectional area, creating massive drag to slow a skydiver down. A racing cyclist crouches low to reduce their frontal area and go faster. |
| Drag Coefficient ($ C_d $) | A dimensionless number that represents how "slippery" or "aerodynamic" an object's shape is. A lower $ C_d $ means less drag. | A sleek, streamlined sports car has a low $ C_d $ (around 0.25), while a large, boxy truck has a high $ C_d $ (around 0.6-0.7), meaning it experiences much more drag at the same speed. |
Different Types of Drag
Not all drag is created equal. Scientists and engineers categorize drag into different types based on how the fluid flows around the object. The two most common types are pressure drag and skin friction drag.
Pressure Drag (Form Drag): This is the dominant type of drag for large, blunt objects like a bus, a skydiver with an unopened parachute, or a baseball. As the object moves, it pushes the fluid in front of it, creating a high-pressure region. Behind the object, the fluid cannot fill the space quickly enough, creating a swirling, low-pressure wake. The difference between the high pressure in the front and the low pressure in the back creates a net force that pushes the object backwards. Streamlining an object reduces pressure drag by allowing the fluid to flow around it smoothly, minimizing the wake.
Skin Friction Drag: This type of drag is caused by the fluid actually "sticking" to the surface of the object. The fluid molecules closest to the object's surface slow down due to friction, creating a thin layer called the boundary layer[1]. The effort required to shear this layer of fluid past the object results in skin friction drag. This is the primary type of drag for objects with a large surface area parallel to the flow, like a long, thin airplane wing or a ship's hull.
For most objects, both types of drag are present, but one is usually more significant than the other.
Drag in Action: From Sports to Space
Drag is not just a force to be overcome; it is often harnessed and manipulated for specific purposes.
Sports Equipment: A dimpled golf ball is a classic example. A smooth ball would create a large wake behind it, resulting in high pressure drag. The dimples on a golf ball trap a thin layer of air, which allows the main airflow to cling to the ball's surface for a longer distance. This reduces the size of the wake and the pressure drag, allowing the ball to fly much farther. In soccer, players can make the ball "bend" or curve by kicking it with a spin. The spin drags air around one side of the ball, creating a pressure difference that pushes the ball sideways—a phenomenon known as the Magnus effect[2].
Transportation and Fuel Efficiency: Automotive and aerospace engineers spend countless hours in wind tunnels to design vehicles with the lowest possible drag coefficient. Reducing drag means the engine doesn't have to work as hard to maintain speed, which directly translates to better fuel economy and lower emissions. For electric cars, lower drag also means a longer driving range on a single charge.
Skydiving and Terminal Velocity: When a skydiver jumps from a plane, gravity pulls them down, accelerating them. As their speed increases, so does the upward drag force. Eventually, the drag force becomes equal to the downward force of gravity. At this point, the net force is zero, and the skydiver stops accelerating, falling at a constant maximum speed called terminal velocity[3]. When the parachute opens, it dramatically increases the cross-sectional area ($ A $) and drag coefficient ($ C_d $), which massively increases the drag force. This new, larger drag force is much greater than gravity, causing the skydiver to decelerate rapidly to a new, much slower terminal velocity for a safe landing.
Common Mistakes and Important Questions
Q: Is drag the same as friction?
A: They are similar but not identical. Friction is a force that resists the relative motion between two solid surfaces. Drag is the resistive force experienced by an object moving through a fluid (a liquid or a gas). Skin friction drag is a specific component of drag that is very similar to solid-surface friction.
Q: If drag opposes motion, does that mean it's always a bad thing?
A: Not at all! While we often try to minimize drag (e.g., in car design), it is also essential. Without drag, parachutes wouldn't work, brakes on some vehicles would be less effective, and it would be impossible to throw a curveball in baseball. Drag is a tool that can be used for both hindering and controlling motion.
Q: Why do two objects of the same weight but different shapes fall at different speeds?
A: In a vacuum, where there is no air (and thus no drag), they would fall at the same speed. In air, the object with a larger cross-sectional area or a less aerodynamic shape (higher $ C_d $) will experience more drag for its weight. This greater drag force will more effectively counteract the force of gravity, resulting in a lower terminal velocity and a slower fall.
Drag is an omnipresent and powerful force that shapes our world in countless ways. From the simple act of walking to the complex engineering of a jet aircraft, understanding and managing drag is fundamental. It is not merely an obstacle to be overcome but a versatile physical phenomenon that can be harnessed for safety, sport, and efficiency. By learning about the factors that affect drag—speed, density, area, and shape—we gain a deeper appreciation for the physics behind everyday experiences and the technological innovations that define our modern life.
Footnote
[1] Boundary Layer: A thin layer of fluid in the immediate vicinity of a bounding surface where the effects of viscosity (fluid friction) are significant. The fluid velocity ranges from zero at the surface to the free-stream velocity away from the surface.
[2] Magnus Effect: A force acting on a spinning object moving through a fluid (like air), causing it to curve. The spin creates a difference in flow velocity on opposite sides of the object, leading to a pressure difference and a lateral force.
[3] Terminal Velocity: The constant maximum speed attained by a falling object when the downward force of gravity is balanced by the upward force of drag and buoyancy, resulting in zero acceleration.
